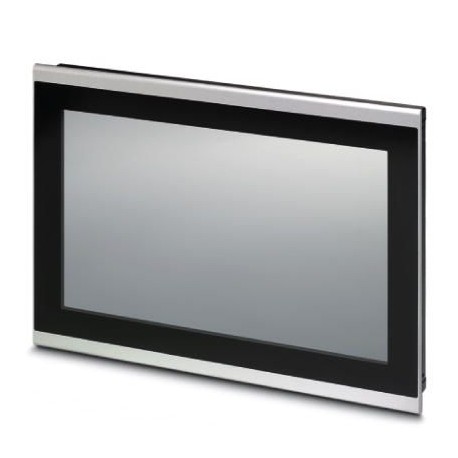

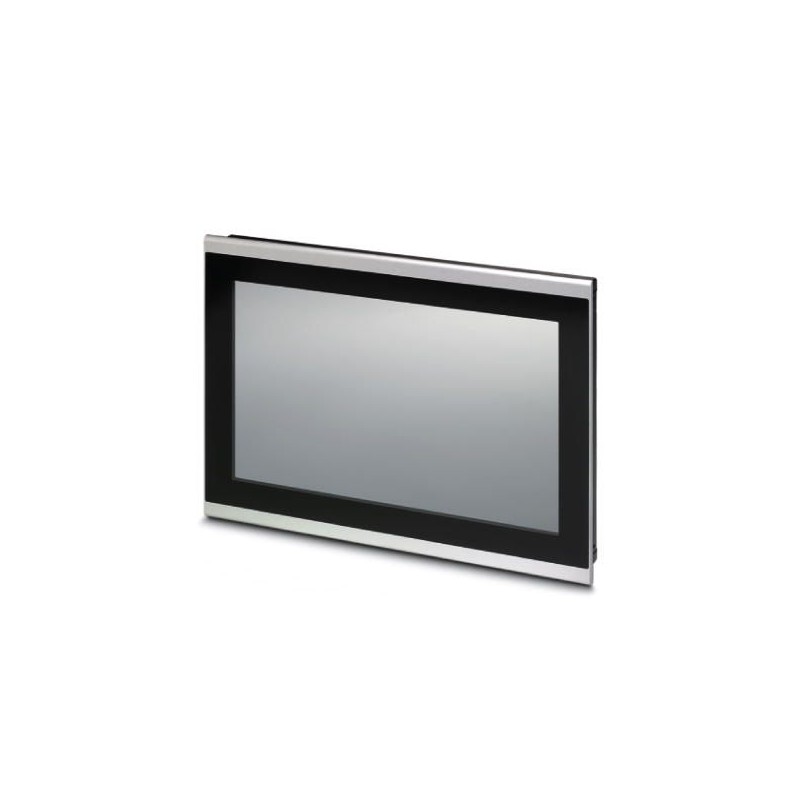

TP121SKM200114041 S00127 2401554 PHOENIX CONTACT Touch panel
TP121SKM200114041 S00127
2401554
PHOENIX_CONTACT
Touch panel
Touchpad with 30.7 cm / 12.1"-TFT-display (projective-capacitive (PCAP)), 1280 x 800 pixel(s) (WXGA), 65536 colors, Arm®Cortex®-A8, 1000 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedded Compact 7 and user software: IniNet Browser. (Bus system: SIN)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2401554 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626228891 |
| Weight per Piece (excluding packing) | 1,700.000 g |
| Custom tariff number | 84714100 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| External dimension, width | 336 mm |
|---|---|
| External dimension, height | 234 mm |
| External dimension, depth | 6 mm |
| Note regarding external dimension | Dimensions of the front plate |
| Installation dimension, width | 329 mm |
| Installation dimension, height | 227 mm |
| Installation dimension, depth | 53 mm |
| Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display
| Display | 30.7 cm/12.1" TFT |
|---|---|
| Brightness | 320 cd/m² typical (adjustable) |
| Screen resolution | 1280 x 800 Pixel(s) (WXGA) |
| Backlighting | LED |
| Display backlight MTBF | 50000 h |
| Touch technology | Projective-capacitive (PCAP) |
| Colors | 65536 colors |
| Reading angle left | 88 ° |
| Reading angle right | 88 ° |
| Reading angle top | 88 ° |
| Reading angle bottom | 88 ° |
Computer data
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | IniNet Browser |
| RAM | 1 MB SRAM |
| 512 MB LPDDR SDRAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 45 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027330203eCl@ss 4.127330203eCl@ss 5.027330202eCl@ss 5.127330200eCl@ss 6.027242300eCl@ss 7.027242302eCl@ss 8.027242302eCl@ss 9.027330201
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
