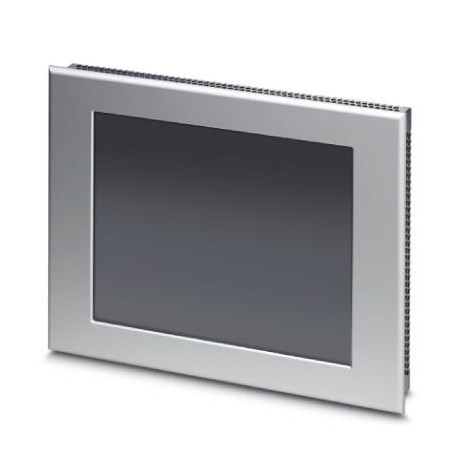

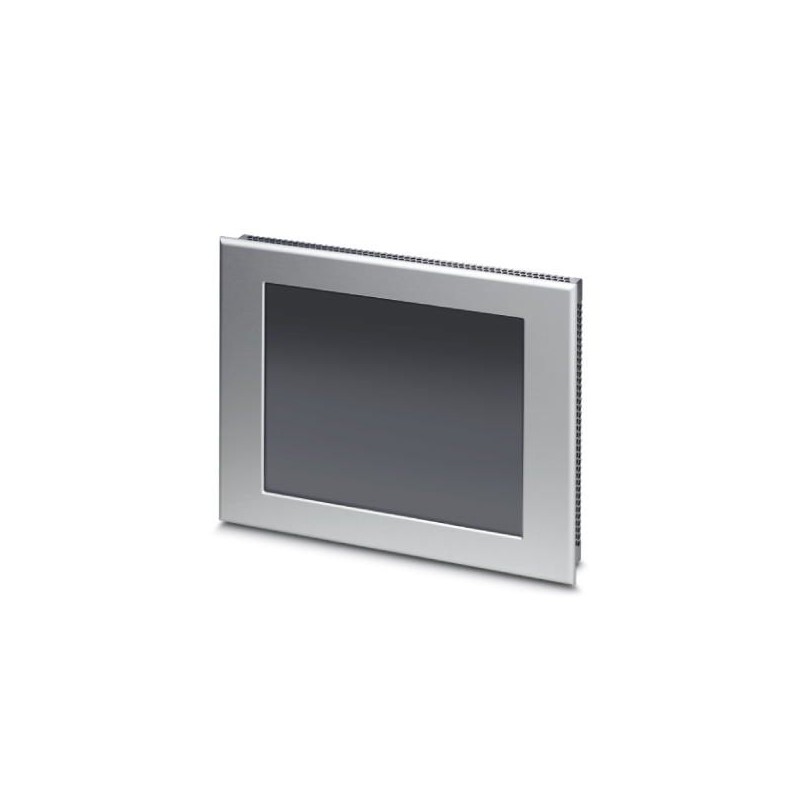

TP104AT/792000 S00001
2400801
PHOENIX_CONTACT
1
Touch panel
Control Systems (CST)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 2400801 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
GTIN | 4055626097480 |
Weight per Piece (excluding packing) | 2,379.000 g |
Custom tariff number | 84714100 |
Country of origin | DE (Germany) |
Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
---|
External dimension, width | 328 mm |
---|---|
External dimension, height | 249 mm |
External dimension, depth | 5 mm |
Note regarding external dimension | Dimensions of the front plate |
Installation dimension, width | 303 mm |
Installation dimension, height | 222 mm |
Installation dimension, depth | 67 mm |
Note regarding installation dimension | Mounting cutout, depth with bus if bus system present in the device |
Display | 26.4 cm/10.4" TFT |
---|---|
Brightness | 360 cd/m² typical (adjustable) |
Screen resolution | 640 x 480 Pixel(s) (VGA) |
Backlighting | LED |
Display backlight MTBF | 50000 h |
Touch technology | analog resistive (polyester) |
Colors | 65536 colors |
Reading angle left | 80 ° |
Reading angle right | 80 ° |
Reading angle top | 65 ° |
Reading angle bottom | 80 ° |
Processor | Arm9™, 200 MHz |
---|---|
Operating system | Windows® CE 5.0 |
User software | TSvisRT |
RAM | 64 MB SDRAM |
512 KB SRAM | |
Mass storage | NOR-Flash, 32 MB |
Network | 1 x Ethernet (10/100 Mbps), RJ45 |
Interfaces | 2x USB host 2.0 |
1x COM (RS-232) | |
1x COM (RS-232/RS-485/TTY) | |
Bus system | without |
Optional interfaces | none |
Realtime clock | Yes |
Service life of battery | 5 years (typical) |
Material front plate | Aluminum (natural anodized) |
---|---|
Housing material | Steel sheet, zinc-plated |
Mounting type | Front installation |
Weight | 2379 g |
Degree of protection | IP65 (front), IP20 (back) |
---|---|
NEMA 4X | |
Ambient temperature (operation) | 0 °C ... 50 °C |
Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 85 % |
Vibration (operation) | 1g, according to EN 60068-2-6 |
Shock | 15g, according to IEC 60068-2-27 |
Shock | 15g, according to IEC 60068-2-27 |
---|---|
Vibration (operation) | 1g, according to EN 60068-2-6 |
China RoHS | Environmentally Friendly Use Period = 15; |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
