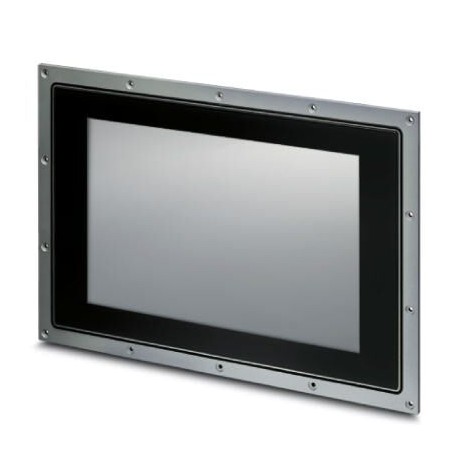

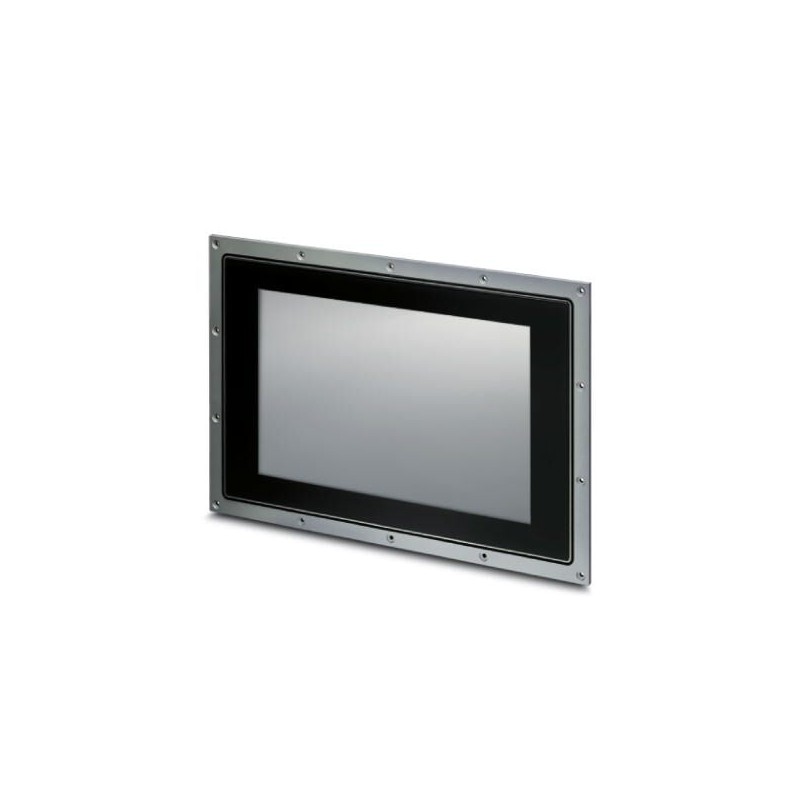

TP090SKW/200114031 S00122 1082740 PHOENIX CONTACT Touch panel with 22.9 cm/9" TFT-display (Projective-capaci..
TP090SKW/200114031 S00122
1082740
PHOENIX_CONTACT
Touch panel with 22.9 cm/9" TFT-display (Projective-capacitive, four-touch control), 800 x 480 pixel(s) (WVGA), 16.7 million colors, Arm
Touch panel with 22.9 cm / 9"-TFT-display (projective-capacitive, four-point use), 800 x 480 pixel(s) (WVGA), 16.7 million colors, Arm®Cortex®-A8, 1000 MHz, 2x USB Host 2.0, 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedded Compact 7 and user software: Visu+. (Bus system: SIN)
PLC's > Graphic panel
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 304 mm x 194 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 268 mm x 158 mm x 57 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 22.9 cm/9" TFT |
|---|---|
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Touch technology | Projective-capacitive, four-touch control |
| Brightness | 800 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 70000 h |
| Colors | 16.7 million colors |
| Reading angle left | 85 ° |
| Reading angle right | 85 ° |
| Reading angle top | 85 ° |
| Reading angle bottom | 85 ° |
Computer data
| Processor | Arm®Cortex®-A8, 1000 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Visu+ |
| RAM | 1 MB SRAM |
| 512 MB LPDDR RAM | |
| Mass storage | NAND-Flash, 1 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Housing material | Steel sheet, zinc-plated |
|---|---|
| Mounting type | Front installation (open frame, optimized for 2 mm sheet thickness) |
| Weight | 2120 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330200 |
|---|---|
| eCl@ss 4.1 | 27330200 |
| eCl@ss 5.0 | 27330200 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
