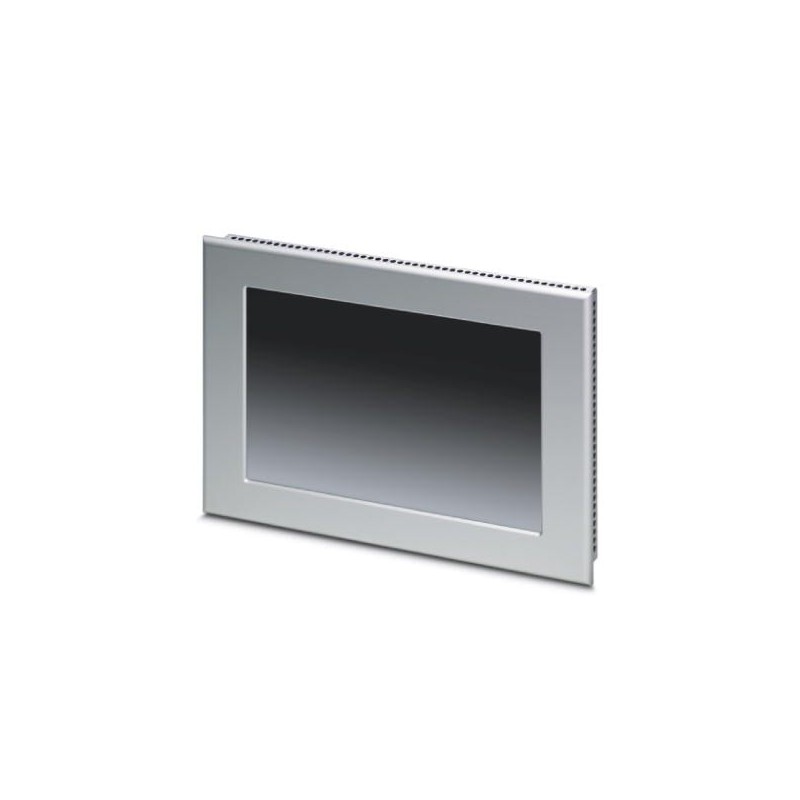

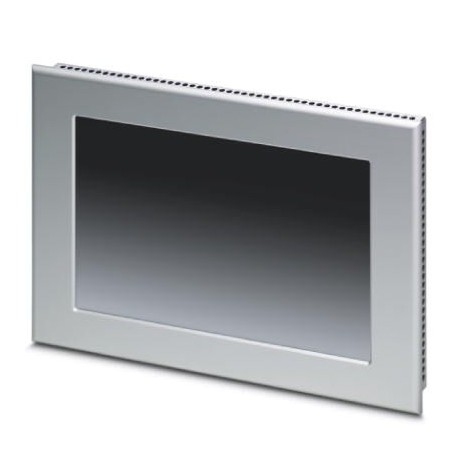

TP090BTW/A00390009 S00131 2401649 PHOENIX CONTACT Touch panel with 22.9 cm/9" TFT-display (analog resistive ..
TP090BTW/A00390009 S00131
2401649
PHOENIX_CONTACT
Touch panel with 22.9 cm/9" TFT-display (analog resistive (polyester)), 800 x 480 Pixel(s) (WVGA), 16.7 million colors, Intel
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Touch panel with 22.9 cm/9" TFT-display (analog resistive (polyester)), 800 x 480 Pixel(s) (WVGA), 16.7 million colors, Intel®Atom™E3815 1.46 GHz, 4x USB Host 2.0, 1 x Ethernet (10/100 Mbps), RJ45, Windows®Embedded Compact 7 and user software: Open platform. (bus system: without)
Key Commercial Data
| Orderkey | 2401649 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626363219 |
| Custom tariff number | 84714100 |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 260 mm x 172 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 252 mm x 164 mm x 66 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 22.9 cm/9" TFT |
|---|---|
| Screen resolution | 800 x 480 Pixel(s) (WVGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 800 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 70000 h |
| Colors | 16.7 million colors |
| Reading angle left | 85 ° |
| Reading angle right | 85 ° |
| Reading angle top | 85 ° |
| Reading angle bottom | 85 ° |
Computer data
| Processor | Intel®Atom™E3815 1.46 GHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Open platform |
| RAM | 2 GB DDR3 |
| Mass storage | Flash eMMC, 4 GB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 4x USB Host 2.0 |
| Bus system | without |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Extras | Integrated acoustic signal (buzzer) |
|---|---|
| Material front plate | Aluminum (natural anodized) |
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 1400 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Device supply
| Power supply unit | 24 V DC ±20 % |
|---|
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 15; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330203 |
|---|---|
| eCl@ss 4.1 | 27330203 |
| eCl@ss 5.0 | 27330202 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
ETIM
| ETIM 4.0 | EC001412 |
|---|---|
| ETIM 5.0 | EC001412 |
| ETIM 6.0 | EC001412 |
| ETIM 7.0 | EC001412 |
UNSPSC
| UNSPSC 13.2 | 43211904 |
|---|
