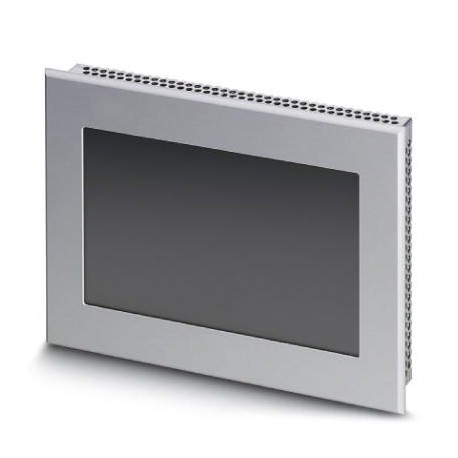

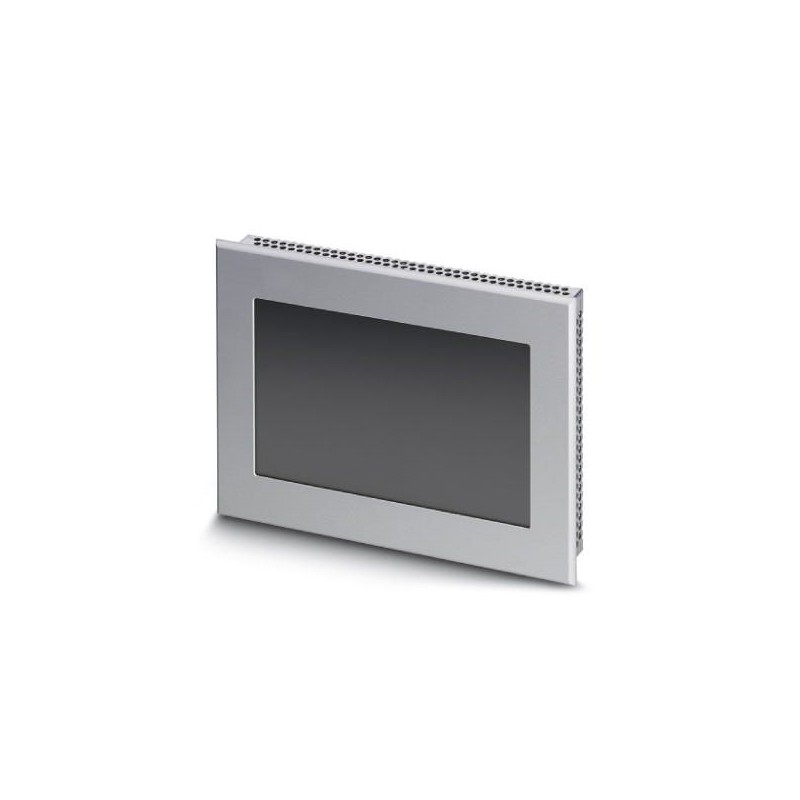

TP070STW/100111201 S00068 2401355 PHOENIX CONTACT Touch Panel with 17.8 cm / 7"-TFT-Screen (analog resistive..
TP070STW/100111201 S00068
2401355
PHOENIX_CONTACT
Touch Panel with 17.8 cm / 7"-TFT-Screen (analog resistive (polyester)), 800 x 480 Pixel (WVGA), 262144 colors, ARM®Cortex®-A8, 800 MHz, 2x USB Host 2.0 1x Ethernet (10/100 Mbit/s), RJ45, Windows®Embedded Compact 7, and user Software: Movicon™. (System bus: no)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | Two million four hundred one thousand three hundred fifty five |
|---|---|
| Packing unit | 1 pcs |
| Key selling | DRCABC - |
| EAN | Four trillion fifty five billion six hundred twenty six million one hundred forty eight thousand three hundred twenty eight |
| Unit weight (excluding packaging) | 800,000 g |
Observation
| Restriction of use | EMC: class A product, see manufacturer's declaration in the download center |
|---|
Dimensions
| External dimension Width | 203 mm |
|---|---|
| Outside dimension Height | 147 mm |
| Outside dimension Depth | 5 mm |
| Indication of the external dimension | Dimensions of the front plate |
| Measure the mounting Width | 195 mm |
| Measure mounting Height | 139 mm |
| Measure mounting Depth | 42 mm |
| Indication about the extent of assembly | Section mounting, depth with the bus in case there is a bus system in the device |
Screen
| Display | 17.8 cm / 7"-TFT |
|---|---|
| Brightness | 350 cd/m2 typical (adjustable) |
| Resolution of the screen | 800 x 480 Pixel(s) (WVGA) |
| Background lighting | LED |
| Backlight MTBF | 40000 h |
| Touch Technology | analog-resistive (polyester) |
| Colors | 262144 colors |
| Untoangle of reading left | 70 ° |
| Untoangle reading right | 70 ° |
| Untoangle to read up | 65 ° |
| Untoangle reading below | 65 ° |
Data computer
| Processor | Arm®Cortex®-A8, 800 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| Software user | Movicon™ |
| Main memory | 1 MB SRAM |
| 512 MB LPDDR SDRAM | |
| Data memory | NAND-Flash, 1 GB |
| Network | 1x Ethernet (10/100 Mbit/s), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| System bus | without |
| Ports | 1x SD |
| Real-time clock | Yes |
| Battery life | 5 years (typ.) |
Overview
| Material of the front plate | Aluminium (natural anodized) |
|---|---|
| Material housing | Galvanised steel plate |
| Mounting type | Front mounting |
| Weight | 800 g |
Environmental conditions
| Index of protection | IP65 (front side), IP20 (rear side) |
|---|---|
| NEMA 4X | |
| Room temperature (service) | 0 °C ... 50 °C |
| Ambient temperature (storage / transport) | -25 °C ... 70 °C |
| Humidity of air permissible (service) | 20 % ... 85 % |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 15 years; |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 5.1Twenty seven million three hundred thirty thousand two hundredeCl@ss 6.0Twenty seven million two hundred forty two thousand three hundredeCl@ss 7.0Twenty seven million two hundred forty two thousand three hundred twoeCl@ss 8.0Twenty seven million two hundred forty two thousand three hundred twoeCl@ss 9.0Twenty seven million three hundred thirty thousand two hundred one
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
