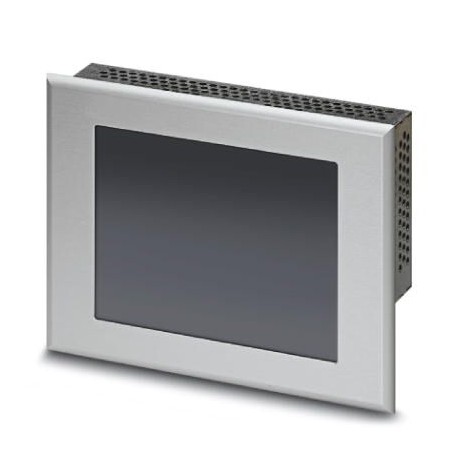

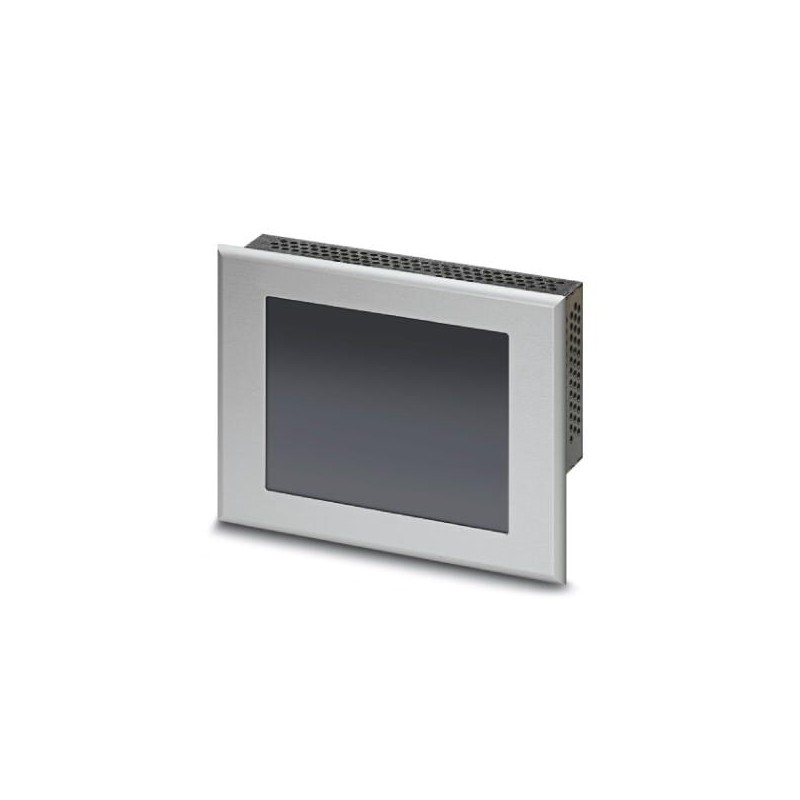

TP057STV/100630003 S00069 2400687 PHOENIX CONTACT Touch panel with 14.5 cm/5.7" TFT active-display (analog r..
TP057STV/100630003 S00069
2400687
PHOENIX_CONTACT
Touch panel with 14.5 cm/5.7" TFT active-display (analog resistive (polyester)), 640 x 480 Pixel(s) (VGA), 262144 colors, Arm
Touchpad with 14.5 cm / 5.7" TFT display (analog-resistive (polyester)), 640 x 480 pixel(s) (VGA), 262144 colors, Arm®Cortex®-A8, 800 MHz, 2x USB Host 2.0, 1x COM (RS-232), 1x COM (RS-422/485), 1x Ethernet (10/100 MBits/s), RJ45, Windows®Embedded Compact 7 and user software: Open platform. (bus system: DualCAN)
Control Systems (CST)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Dimensions
| Outer dimensions: width, height, depth | 168 mm x 126 mm x 5 mm (Dimensions of the front plate) |
|---|---|
| Installation dimensions: width, height, depth | 160 mm x 118 mm x 68 mm (Mounting cutout, depth with bus if bus system present in the device) |
Display
| Display | 14.5 cm/5.7" TFT active |
|---|---|
| Screen resolution | 640 x 480 Pixel(s) (VGA) |
| Touch technology | analog resistive (polyester) |
| Brightness | 400 cd/m², typical (adjustable) |
| Backlighting | LED |
| Display backlight MTBF | 40000 h |
| Colors | 262144 colors |
| Reading angle left | 65 ° |
| Reading angle right | 65 ° |
| Reading angle top | 55 ° |
| Reading angle bottom | 52 ° |
Computer data
| Processor | Arm®Cortex®-A8, 800 MHz |
|---|---|
| Operating system | Windows®Embedded Compact 7 |
| User software | Open platform |
| RAM | 512 MB LPDDR SDRAM |
| Mass storage | NAND-Flash, 256 MB |
| Network | 1 x Ethernet (10/100 Mbps), RJ45 |
| Interfaces | 2x USB Host 2.0 |
| 1x COM (RS-232) | |
| 1x COM (RS-422/485) | |
| Bus system | DualCAN |
| Slots | 1x SD |
| Realtime clock | Yes |
| Service life of battery | 5 years (typical) |
General
| Material front plate | Aluminum (natural anodized) |
|---|---|
| Housing material | Steel sheet, zinc-plated |
| Mounting type | Front installation |
| Weight | 700 g |
Ambient conditions
| Degree of protection | IP65 (front), IP20 (back) |
|---|---|
| NEMA 4X | |
| Ambient temperature (operation) | 0 °C ... 50 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Permissible humidity (operation) | 20 % ... 85 % |
| Vibration (operation) | 1g, according to EN 60068-2-6 |
| Shock | 15g, according to IEC 60068-2-27 |
Standards and Regulations
| Shock | 15g, according to IEC 60068-2-27 |
|---|---|
| Vibration (operation) | 1g, according to EN 60068-2-6 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 15; |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 4.0 | 27330200 |
|---|---|
| eCl@ss 4.1 | 27330200 |
| eCl@ss 5.0 | 27330200 |
| eCl@ss 5.1 | 27330200 |
| eCl@ss 6.0 | 27242300 |
| eCl@ss 7.0 | 27242302 |
| eCl@ss 8.0 | 27242302 |
| eCl@ss 9.0 | 27330201 |
UNSPSC
| UNSPSC 13.2 | 43211904 |
|---|---|
| UNSPSC 18.0 | 43211904 |
| UNSPSC 19.0 | 43211904 |
| UNSPSC 20.0 | 43211904 |
| UNSPSC 21.0 | 43211904 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN .pdf | 35 Mbytes |
|
