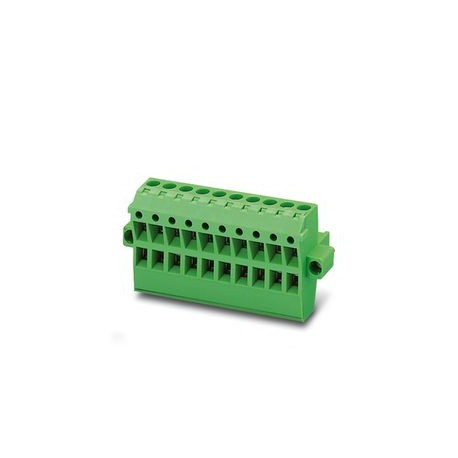

TMSTBP 2,5/ 4-STF-5,08 BD4-1SO 1484420 PHOENIX CONTACT PCB connector, nominal cross-section: 2.5 mm², colour..
TMSTBP 2,5/ 4-STF-5,08 BD4-1SO
1484420
PHOENIX_CONTACT
PCB connector, nominal cross-section: 2.5 mm², colour: green, nominal current: 12 A, nominal voltage (III/2): 320 V, surface contacts: Tin, contact type: Female, number of rows: 1, number of poles: 4, article family: TMSTBP 2.5/.. -STF, pitch: 5.08 mm, connection type: Screw connection with pull capsule, screw clamping form: L Longitudinal groove, connection direction conductor/printed circuit board: 0°, clamping hook: - without clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Screw locking, fixing type: Overhead clamping (screw), packing type: Boxed Packaging
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product Line | COMBICON Connectors M |
| Product Type | Printed Circuit Board Connector |
| Product Family | TMSTBP 2.5/.. -STF |
| Number of poles | 4 |
| Step | 5.08 mm |
| Number of rows | 1 |
| Nominal Current IN | 12 A |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Sizing voltage (III/3) | 250 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 630 V |
| Dimensioning transient voltage (II/2) | 4 kV |
| Connection technology | |
| Construction | Plug-in bus part |
| Connector System | COMBICON MSTB 2.5 |
| Nominal Section | 2.5 mm² |
| Contact Connection Type | Female |
| Blockade | |
| Locking system | Screw lock |
| Clamping flange | Overhead clamping (screw) |
| Tightening torque | 0.3 Nm |
| Connecting Conductors | |
| Connection type | Screw connection with traction capsule |
| Connection Direction Driver/PCB | 0 ° |
| Rigid conductor section | 0.2 mm² ... 2.5 mm² |
| Flexible conductor section | 0.2 mm² ... 2.5 mm² |
| AWG Conductor Section | 24 ... 12 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| 2 conductors with the same cross-section, rigid | 0.2 mm² ... 1 mm² |
| 2 conductors with the same cross-section, flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors of equal cross-section, flexible with toe cap, without plastic sleeve | 0.25 mm² ... 1 mm² |
| 2 conductors with the same cross-section, flexible with TWIN toe cap with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Peel Length | 7 mm |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Facts about toe caps without an insulated collar | |
| Recommended crimp pliers | 1212034 CRIMPFOX 6 |
| Facts about Insulated Collar Toe Caps | |
| Recommended crimp pliers | 1212034 CRIMPFOX 6 |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (5 - 7 μm Sn) |
| Metal surface contact area (top layer) | Tin (5 - 7 μm Sn) |
| Material data - housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Dimension Scheme |  |
| Step | 5.08 mm |
| Width [w] | 30.24 mm |
| Height [h] | 28.9 mm |
| Length [l] | 21.5 mm |
| Drive shape: screw head | Longitudinal groove (L) |
| Drive shape: screw head | Longitudinal groove (L) |
| bridle | |
| Tightening torque | 0.3 Nm |
| Observation regarding the operation | According to DIN EN 61984, COMBICON connectors are connectors without switching power (COC). In the event of use as prescribed, they must not be plugged in or unplugged under voltage or load. |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 250 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 3.2 mm |
| Sizing Insulation Voltage (III/2) | 320 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 3 mm |
| Sizing Insulation Voltage (II/2) | 630 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 3.2 mm |
| Type of packaging | Boxed Packaging |
