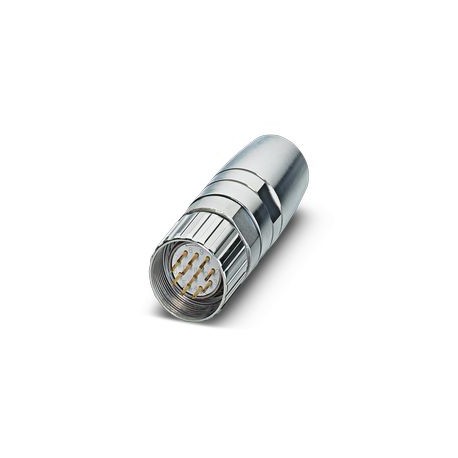

TGGM/CDIO/17-STX 1245642 PHOENIX CONTACT M23. Cable connector
TGGM/CDIO/17-STX
1245642
PHOENIX_CONTACT
M23. Cable connector
M23, Cable connector, series: UC, straight, shielded: yes, Screw locking mechanism, No. of pos.: 17, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, coding: N, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Connection method | Crimp contacts, turned |
| Product type | Circular connector (cable-side) |
| Number of positions | 17 |
| Seal material | NBR |
| Housing material | CuZn, zinc die-cast |
| Conductor connection | |
| Connection method | Crimp contacts, turned |
| Contact | |
| Contact diameter | 1 mm |
| Min. cross section | 0.14 mm² |
| Max. cross section | 0.56 mm² |
| Contact | |
| Contact diameter | 1 mm |
| Min. cross section | 0.5 mm² |
| Max. cross section | 0.75 mm² |
| Insulating body | |
| Note | Order information: Order crimp contacts Ø 1 mm separately |
| Coding | N |
| Connection method | Crimp connection |
| Contact switching type | Pin |
| Application | Signal |
| Number of positions | 17 |
| Direction of rotation | Standard |
| Connection profile | 17 |
| Contact diameterPower contacts | 1 mm |
| Rated currentPower contacts | 8 A |
| Rated voltage | 48 V AC |
| 74 V DC | |
| Rated surge voltage | 1.5 kV |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Housing | |
| Order information: | Order contact inserts separately |
| Housing material | Metal |
| Type of locking | Screw locking mechanism |
| Pg screw connection | Pg16 |
| Degree of protection (plugged in) | IP67 |
| Thread type | M23 |
| Ambient conditions | |
| Degree of protection | IP67 |
| Ambient temperature (operation) | -40 °C ... 125 °C (short-term up to 145°C) |
