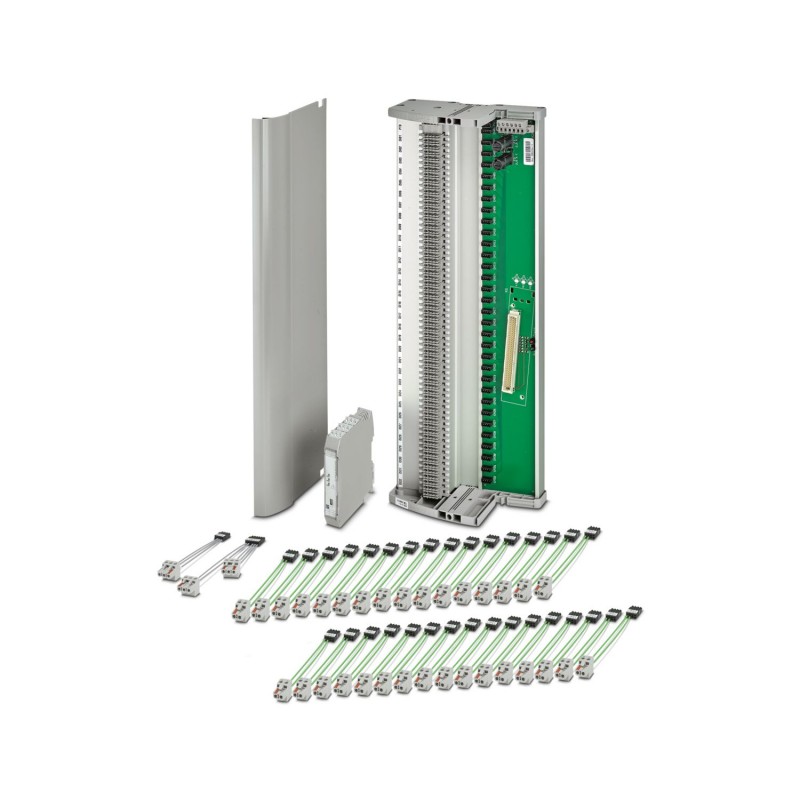

TC-XC96-DI32-EX-PR-HIMAX02 2908751 PHOENIX CONTACT Termination Carrier for redundantly connecting 32 MACX An..
TC-XC96-DI32-EX-PR-HIMAX02
2908751
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Termination Carrier for redundantly connecting 32 MACX Analog Ex i signal conditioners to digital input cards of the HIMA HIMax controller, via one C96 connector, 96-pos. Suitable for the HIMax X-DI 32 02 card
Termination Carrier for the redundant connection of 32 MACX Analog Ex-i separation amplifiers to HIMA-HIMax control system's digital input cards, via a C96, 96-pole connector. Suitable for HIMax X-DI 32 02 card
PLC's > Interface module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Utilization restriction | |
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
| Product type | Module carrier |
| Data management status | |
| Article revision | 05 |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Basic insulation |
| Overvoltage category | II |
| Pollution degree | 2 |
| Max. permissible current | 1 A (Signal/channel) |
| Nominal voltage UN | < 50 V DC (Per signal/channel) |
| Air clearances and creepage distances | |
| Rated insulation voltage | 30 V |
| Rated surge voltage | 0.5 kV |
| Supported controller HIMA HIMax | |
| Suitable I/O card | X-DI 32 02 |
| Supply | |
| Designation | Device supply |
| Fuse | 2x 2.5 A Slow-blow (exchangeable) |
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC ... 30 V DC |
| Input current | ≤ 2 A |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact switching type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 30 V DC (2 A) |
| Power supply | |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section rigid | 0.75 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.75 mm² ... 2.5 mm² |
| Conductor cross section AWG | 18 ... 14 |
| Controller level | |
| Connection in acc. with standard | IEC 60603-2 |
| Connection method | Pin strip |
| Type | C |
| Number of connections | 1 |
| Number of positions | 96 |
| Status display | 2x green LEDs (PWR1 and PWR2) |
| Width | 448 mm |
| Height | 170 mm |
| Depth | 159.5 mm |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| ATEX | |
| Identification | II 3 G Ex ec IIC T4 Gc X |
| UKCA Ex (UKEX) | |
| Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | PxCIF21UKEX2908750X |
| UL, USA/Canada | |
| Identification | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC | |
| Air clearances and creepage distances | |
| Standards/regulations | EN 60664-1 |
| Directive 2014/35/EU (EMV) | |
| Standards/regulations | EN 6100-6-2 |
| EN 6100-6-4 | |
| Directive 2014/34/EU (ATEX) | |
| Standards/regulations | EN 60079-0 |
| EN 60079-7 | |
| EN 60079-11 | |
| Mounting type | DIN rail mounting |
| Assembly note | No end clamp |
| Mounting position | vertical, horizontal |
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 96 |
| Rated voltage (EF000228) | 50 V |
| Rated current (EF000227) | 1 A |
| Depth (EF000049) | 159.5 mm |
| Width (EF000008) | 448 mm |
| Height (EF000040) | 170 mm |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
