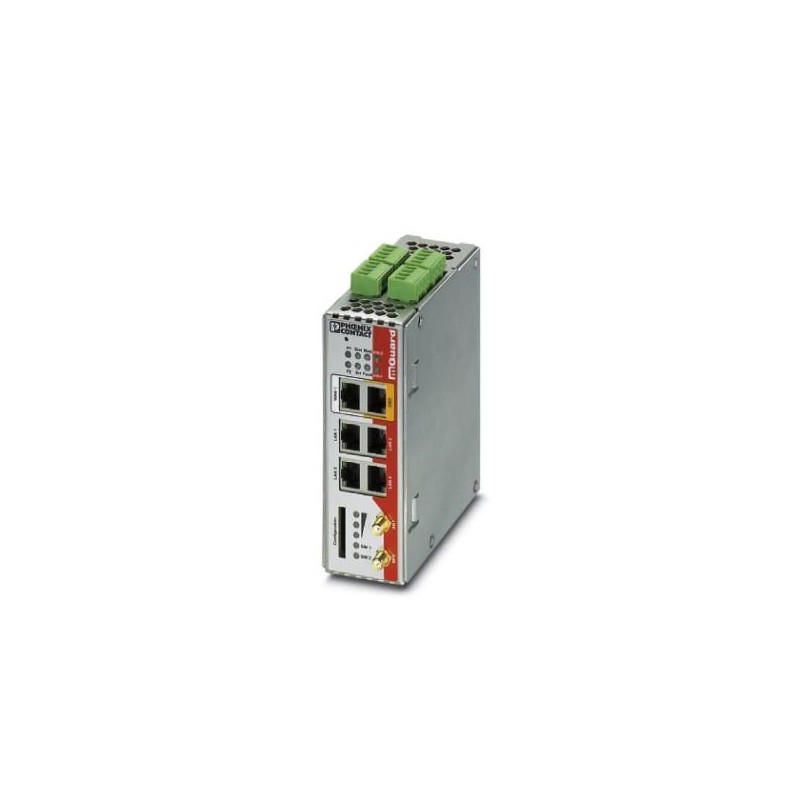

TC MGUARD RS4000 3G VPN 2903440 PHOENIX CONTACT Router
TC MGUARD RS4000 3G VPN
2903440
PHOENIX_CONTACT
Router
Security Appliance, WAN and mobile radio interface. SD card slot. 10 VPN tunnels, intelligent firewall with full compendium of functions, router with NAT/1:1-NAT, optionally Integrity Monitoring CIFS. 4-port Managed Switch. 2 SIM card slots. GPS receiver.
Safety
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2903440 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 350 (C-6-2017) |
| GTIN | 4046356752985 |
| Weight per Piece (excluding packing) | 650.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
| Degree of protection | IP20 |
General
| Electrical isolation | VCC // PE |
|---|---|
| Test voltage data interface/data interface | 1 kV (50 Hz, 1 min.) |
| Test voltage data interface/power supply | 1 kV (50 Hz, 1 min.) |
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
| Net weight | 650 g |
| Housing material | Metal |
| Color | silver |
| MTTF | 567 Years (Telcordia standard, 25°C temperature, 21% operating cycle (5 days a week, 8 hours a day)) |
| 269 Years (Telcordia standard, 40°C temperature, 34.25% operating cycle (5 days a week, 12 hours a day)) | |
| 114 Years (Telcordia standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Degree of pollution | 2 |
| Conformance | CE-compliant |
| UL, USA | Class I, Zone 2, AEx nA IIC T4 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
| UL, Canada | Class I, Zone 2, Ex nA IIC T4 Gc X |
Power supply
| Supply voltage range | 11 V DC ... 36 V DC (via pluggable COMBICON screw terminal block) |
|---|---|
| Max. current consumption | < 1.8 A (at 11 V DC (incl. 3 x 125 mA for the outputs)) |
| Typical current consumption | < 320 mA (24 V DC) |
| Conductor cross section solid max. | 2.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Max. AWG conductor cross section, flexible | 14 |
| Min. AWG conductor cross section, flexible | 24 |
Serial interface
| Interface 1 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
|---|---|
| Interface | Ethernet |
| No. of ports | 6 |
| Connection method | RJ45 |
| Transmission length | 100 m (shielded twisted pair) |
| Protocols supported | TCP/IP, UDP/IP, FTP, HTTP |
| Auxiliary protocols | ARP, DHCP, PING (ICMP), SNMP V1, SMTP |
| Basic functions | Router with intelligent firewall and VPN for 10 tunnels (up to 250 supported with optional additional license), CIFS Integrity Monitoring (as an option), metal housing, slot for SD memory card |
| Interface 2 | V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
| Interface | RS-232 |
| Connection method | D-SUB 9 plug |
| File format/coding | UART/NRZ: 8 Data, 1/2 Stop, None/Even/Odd Parity |
| Transmission length | 15 m |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 9.6; 19.2; 38.4; 57.6; 115.2 kbps |
Wireless interface
| Interface description | GSM / GPRS / EDGE / UMTS / CDMA2000 |
|---|---|
| Frequency | 850 MHz (2 W (EGSM)) |
| 900 MHz (2 W (EGSM)) | |
| 1800 MHz (1 W (EGSM)) | |
| 1900 MHz (1 W (EGSM)) | |
| 800 MHz (UMTS/HSPA B6) | |
| 850 MHz (UMTS/HSPA B5) | |
| 900 MHz (UMTS/HSPA B8) | |
| 1900 MHz (UMTS/HSPA B2) | |
| 2100 MHz (UMTS/HSPA B1) | |
| 800 MHz (CDMA2000 EV-DO) | |
| 1900 MHz (CDMA2000 EV-DO) | |
| Data rate | ≤ 14.4 Mbps (HSDPA) |
| ≤ 5.7 Mbps (HSUPA) | |
| ≤ 3.1 Mbps (DL CDMA2000) | |
| ≤ 1.8 Mbps (UL CDMA2000) | |
| Antenna | 50 Ω impedance SMA antenna socket |
| SIM interface 1 | 1.8 volt, 3 volt |
| SIM interface 2 | 1.8 volt, 3 volt |
| GPRS | Class 12, Class B |
| CS1 ... CS4 | |
| EDGE | Multislot Class 12 |
| UMTS | HSPA 3GPP R6 |
| Network function | 4 time slots for receiving data, 4 time slots for transmitting data. The PIN is saved in the modem. After a voltage interruption, there is automatic redialing into the network. Integrated TCP/IP stack, firewall and VPN support, independent connection establishment. |
| Network check | LED bar graph to display receive quality |
| Protocols supported | GPS (Global Positioning System), GLONASS |
Digital outputs
| Output name | Digital output |
|---|---|
| Number of outputs | 3 |
| Voltage output signal | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Current output signal | ≤ 125 mA (Short-circuit-proof) |
Digital inputs
| Description of the input | Digital input |
|---|---|
| Number of inputs | 3 |
| Voltage input signal | 10 V DC ... 30 V DC |
| Current input signal | 5 mA |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Type of test | Free fall in acc. with IEC 60068-2-32 |
| Test result | 1 m |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | Operation: 15g, 11 ms period, half-sine shock pulse |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | Storage: 30g, 11 ms period, half-sine shock pulse |
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV (Test Level 3) |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV (Data line, asymmetrical) |
| Standards/regulations | EN 61000-6-4 |
| EN 61000-4-6 | |
| Frequency range | 0.15 MHz ... 80 MHz |
| Conformance | CE-compliant |
| UL, USA | Class I, Zone 2, AEx nA IIC T4 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
| UL, Canada | Class I, Zone 2, Ex nA IIC T4 Gc X |
| Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027230207eCl@ss 4.127230207eCl@ss 5.027230207eCl@ss 5.119030100eCl@ss 6.019170100eCl@ss 7.019170103eCl@ss 8.019170103eCl@ss 9.019170103
