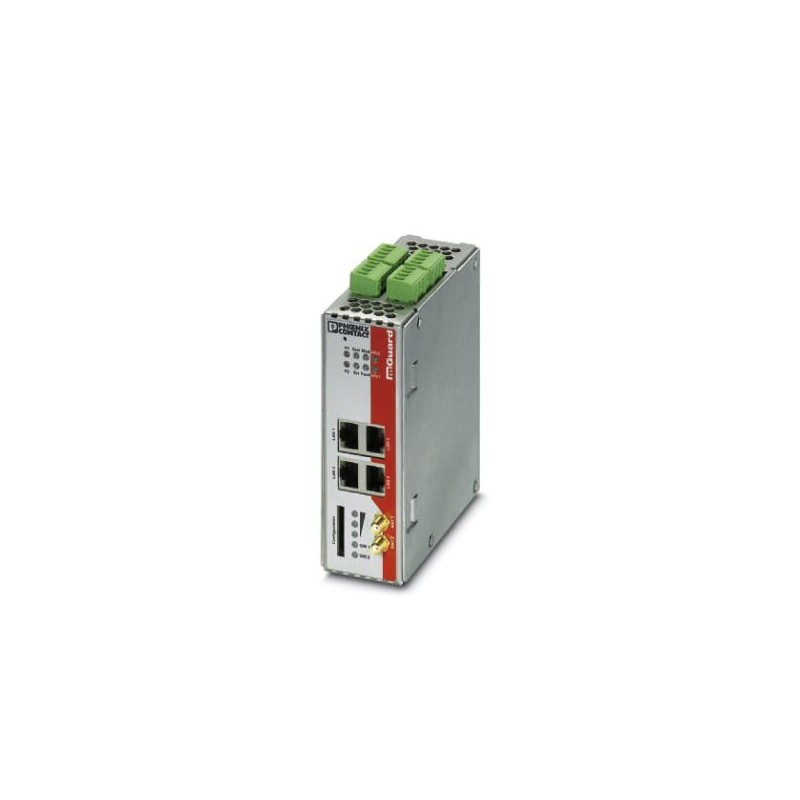

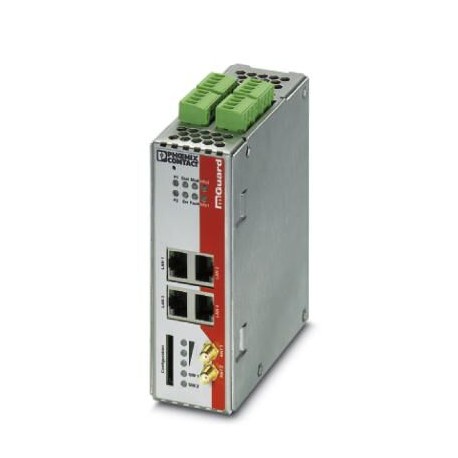

TC MGUARD RS2000 4G VZW VPN 1010462 PHOENIX CONTACT Security appliance, Version for Verizon Wireless (US), 4..
TC MGUARD RS2000 4G VZW VPN
1010462
PHOENIX_CONTACT
Security appliance, Version for Verizon Wireless (US), 4G mobile network interface, SD card slot, 2 VPN tunnels, firewall for easy configuration, router with NAT/1:1 NAT, 4 port switch
Data and telecommunication > Network router
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1010462 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 405 (C-6-2019) |
| GTIN | 4055626484266 |
| Weight per Piece (excluding packing) | 640.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Note
| Trade restriction | The products are offered exclusively for export outside the EU and the European Economic Area. |
|---|
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Altitude | ≤ 5000 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Degree of protection | IP20 (Manufacturer's declaration) |
General
| Electrical isolation | VCC // PE |
|---|---|
| Test voltage data interface/data interface | 1 kV (50 Hz, 1 min., manufacturer's declaration) |
| Test voltage data interface/power supply | 1 kV (50 Hz, 1 min., manufacturer's declaration) |
| Electromagnetic compatibility | Conformance with RED Directive 2014/53/EU |
| Net weight | 645.8 g |
| Housing material | Metal |
| Color | silver |
| MTTF | 582 Years (SN 29500 standard, temperature 25 °C, operating cycle 21 % (5 days a week, 8 hours a day)) |
| 271 Years (SN 29500 standard, temperature 40 °C, operating cycle 34.25 % (5 days a week, 12 hours a day)) | |
| 114 Years (SN 29500 standard, temperature 40 °C, operating cycle 100 % (7 days a week, 24 hours a day)) | |
| Degree of pollution | 2 |
| Wireless licences | USA |
Power supply
| Supply voltage range | 11 V DC ... 36 V DC (via pluggable COMBICON screw terminal block) |
|---|---|
| Max. current consumption | 1.8 A (at 11 V DC (incl. 3 x 125 mA for the outputs)) |
| Typical current consumption | < 320 mA (24 V DC) |
| Conductor cross section solid max. | 2.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Max. AWG conductor cross section, flexible | 14 |
| Min. AWG conductor cross section, flexible | 24 |
Serial interface
| Interface 1 | Ethernet interface, 10/100Base-T(X) in acc. with IEEE 802.3u |
|---|---|
| Interface | Ethernet |
| No. of ports | 4 |
| Connection method | RJ45 |
| Transmission length | 100 m (shielded twisted pair) |
| Protocols supported | TCP/IP, UDP/IP, FTP, HTTP |
| Auxiliary protocols | ARP, DHCP, PING (ICMP), SNMP V1, SMTP |
| Basic functions | Router with simplified 2-click firewall and VPN for 2 tunnels (fixed), metal housing, slot for any SD memory card |
| Interface 2 | V.24 (RS-232) interface in acc. with ITU-T V.28, EIA/TIA-232, DIN 66259-1 |
| Interface | RS-232 |
| Connection method | D-SUB 9 plug |
| File format/coding | UART/NRZ: 8 Data, 1/2 Stop, None/Even/Odd Parity |
| Transmission length | 15 m |
| Data flow control/protocols | Software handshake, Xon/Xoff or hardware handshake RTS/CTS |
| Serial transmission speed | 9.6; 19.2; 38.4; 57.6; 115.2 kbps |
Wireless interface
| Interface description | LTE (FDD) |
|---|---|
| Frequency | 700 MHz (LTE B13) |
| 1700 MHz (LTE B4) | |
| Data rate | ≤ 150 Mbps (LTE (DL)) |
| ≤ 50 Mbps (LTE (UL)) | |
| Antenna | 50 Ω impedance SMA antenna socket |
| SIM interface 1 | 1.8 volt, 3 volt |
| LTE | CAT4 |
| Country support | USA |
Digital outputs
| Output name | Digital output, resistive load |
|---|---|
| Number of outputs | 3 |
| Voltage output signal | 10 V DC ... 30 V DC (depending on the operating voltage) |
| Current output signal | ≤ 125 mA (Short-circuit-proof) |
Digital inputs
| Description of the input | Digital input |
|---|---|
| Number of inputs | 3 |
| Voltage input signal | 10 V DC ... 30 V DC |
| Current input signal | 5 mA |
Conformance/approvals
| Designation | UL, USA/Canada |
|---|---|
| Identification | Class I, Zone 2, AEx nA IIC T4 / Ex nA IIC T4 Gc |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Designation | Corrosive gas test |
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
Standards and Regulations
| Electromagnetic compatibility | Conformance with RED Directive 2014/53/EU |
|---|---|
| Type of test | Free fall in acc. with IEC 60068-2-32 |
| Test result | 1 m |
| Type of test | Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6 |
| Test result | 5g, 10...150 Hz, 2.5 h, in XYZ direction |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | Operation: 15g, 11 ms period, half-sine shock pulse |
| Type of test | Shock in acc. with EN 60068-2-27/IEC 60068-2-27 |
| Test result | Storage: 30g, 11 ms period, half-sine shock pulse |
| Free from substances that could impair the application of coating | according to P-VW 3.10.7 57 65 0 VW-AUDI-Seat central standard |
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV (Test Level 3) |
| Standards/regulations | EN 61000-4-3 |
| Frequency range | 80 MHz ... 3 GHz (Test Level 3) |
| Standards/regulations | EN 61000-4-4 |
| Comments | Criterion B |
| Standards/regulations | EN 61000-4-5 |
| Signal | ± 1 kV (Data line, asymmetrical) |
| Standards/regulations | EN 61000-6-4 |
| EN 61000-4-6 | |
| Frequency range | 0.15 MHz ... 80 MHz |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.0 | 19030100 |
|---|---|
| eCl@ss 5.1 | 19030100 |
| eCl@ss 6.0 | 19170100 |
| eCl@ss 7.0 | 19170103 |
| eCl@ss 8.0 | 19170103 |
| eCl@ss 9.0 | 19170103 |
Datasheet - PDF
