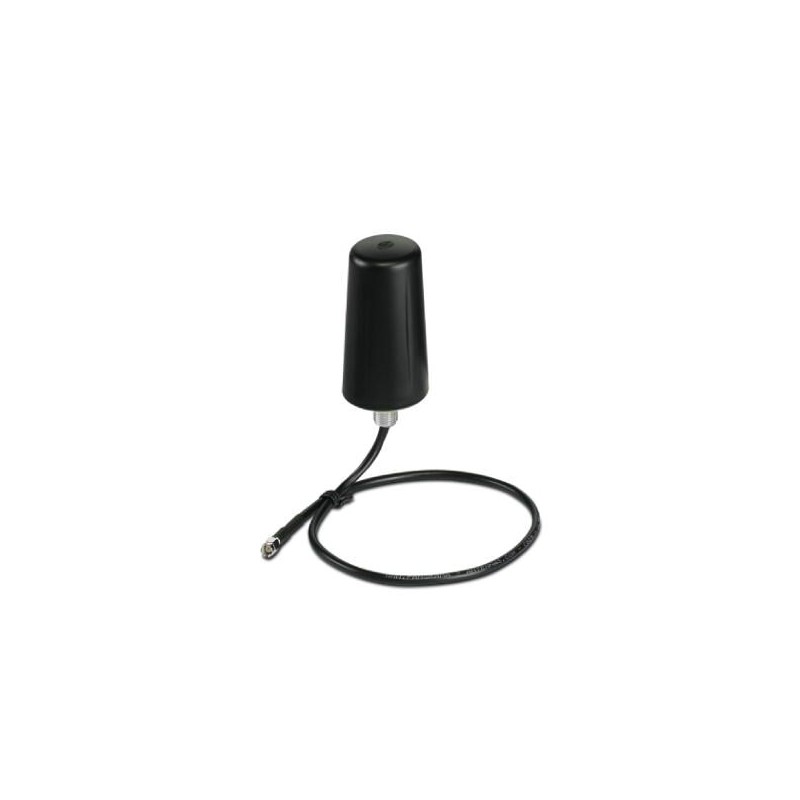

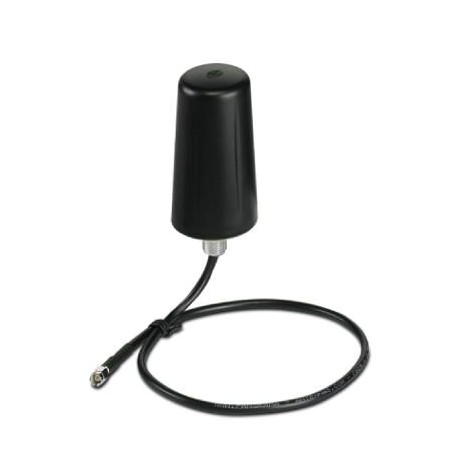

TC ANT MOBILE WALL 0,5M 2702274 PHOENIX CONTACT Multiband cellular antenna for wall mounting, 0.5 m antenna .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

TC ANT MOBILE WALL 0,5M 2702274 PHOENIX CONTACT Multiband cellular antenna for wall mounting, 0.5 m antenna ..

TC ANT MOBILE WALL 0,5M

2702274

PHOENIX_CONTACT

Multiband cellular antenna for wall mounting, 0.5 m antenna cable, with SMA circular connector, suitable for LTE/4G

Multiband mobile radio antenna for wall mounting, 0.5 m antenna cable, with SMA cylindrical connector, suitable for LTE/4G

More details


Safety

Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

More info



Key Commercial Data

Orderkey2702274
Packing unit1 pc
GTIN4055626070179
Weight per Piece (excluding packing)200.000 g
Custom tariff number85177000
Country of originGB (United Kingdom)

Drawings



Dimensional drawing

Dimensional drawing
Wall mounting

Back to top

Dimensions

Dimensional drawing
CaptionWall mounting
Height82 mm
Diameter48 mm
Back to top

Ambient conditions

Degree of protectionIP66
Ambient temperature (operation)-40 °C ... 85 °C
Back to top

General

With connecting cableyes
Frequency range700 MHz
800 MHz
850 MHz
900 MHz
1700 MHz
1800 MHz
1900 MHz
2100 MHz
2600 MHz
3600 MHz
Polarizationvertical
Impedance50 Ω
Gain3 dBi (698 ... 960 MHz)
5 dBi (1710 ... 2700 MHz)
5 dBi (3400 ... 3800 MHz)
Connection methodSMA (male)
MaterialASA (Antenna housing)
Aluminum
Steel, galvanized
Mounting typeMast mounting
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 5.019070100
eCl@ss 5.119070100
eCl@ss 6.019070100
eCl@ss 7.019070105
eCl@ss 8.019070105
eCl@ss 9.019070105
Back to top

ETIM

ETIM 5.0EC001698
ETIM 6.0EC001698
ETIM 7.0EC001698
Back to top

Datasheet - PDF

Title: Size: Type:
PDF CATALOGUE AUTOMATION PHOENIX EN.pdf 35 Mbytes
