TC-2KS40-AIO16R-CS3000 2902661 PHOENIX CONTACT Termination carrier for redundantly connecting 16 MACX Analog..
TC-2KS40-AIO16R-CS3000
2902661
PHOENIX_CONTACT

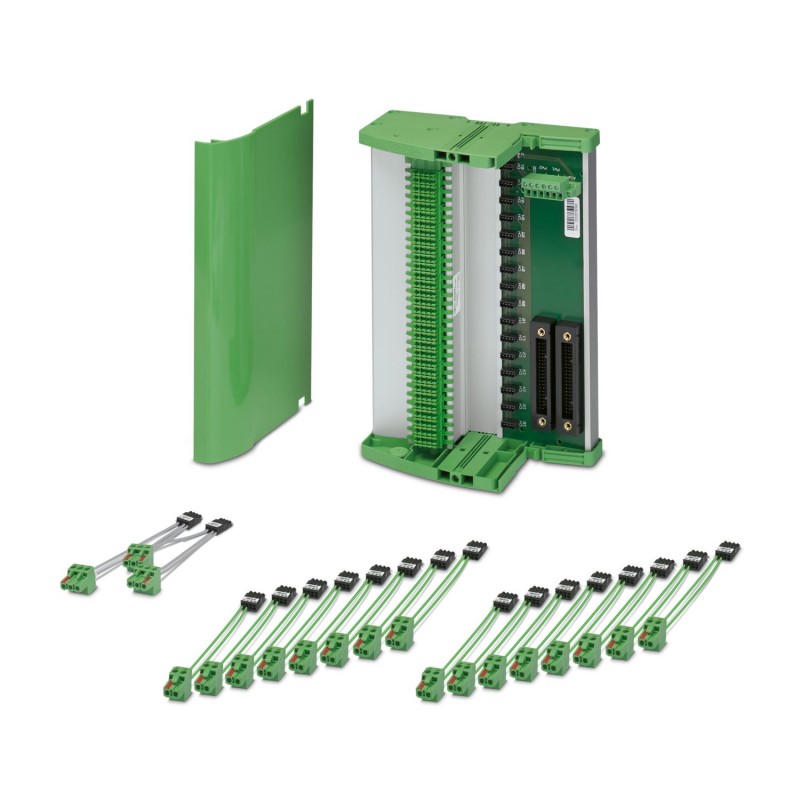

Termination carrier for redundantly connecting 16 MACX Analog Ex i signal conditioners to analog input/output cards of the Yokogawa CS3000 controller, via two KS40 connectors, 40-pos. Suitable for Yokogawa AAI141 and AAI543 cards.
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. |
| Product type | Module carrier |
| Insulation characteristics: Air clearances and creepage distances | |
| Insulation | Basic insulation |
| Max. permissible current | 800 mA (Signal/channel) |
| Nominal voltage UN | 24 V DC ((19.7 V ... 30 V)) |
| Air clearances and creepage distances | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV |
| Supported controller YOKOGAWA CENTUM VP | |
| Suitable I/O card | AAI141 |
| AAI543 | |
| Supply | |
| Designation | Power module |
| Note | Supply via MACX MCR-PTB (2865625). Supply, decoupled from diodes from both modules. |
| Fuse | 5 A Slow-blow (can be exchanged) |
| Input voltage | 24 V DC |
| Input voltage range | 19.2 V DC ... 30 V DC |
| Redundant supply | yes, decoupled from diodes |
| Polarization and surge protection | Yes |
| Output name | Switching output |
| Contact switching type | 1 N/C contact (alarm = open) |
| Maximum switching voltage | 50 V DC (0.3 A) |
| 30 V DC (2 A) | |
| 33 V AC (2 A) | |
| Power supply | |
| Connection method | Screw connection |
| Stripping length | 7 mm |
| Number of connections | 1 |
| Number of positions | 6 |
| Conductor cross section rigid | 0.14 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.14 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Controller level | |
| Connection method | Yokogawa KS-compatible |
| Number of connections | 2 |
| Number of positions | 40 |
| Status display | 1 x red LED (error) |
| 2x green LEDs (PWR1 and PWR2) |
| Width | 242 mm |
| Height | 170 mm |
| Depth | 160 mm |
| Ambient conditions | |
| Degree of protection | IP00 |
| Ambient temperature (operation) | -20 °C ... 60 °C (Please observe module specifications) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Shock | 15g, according to IEC 60068-2-27 |
| Vibration (operation) | 2g, according to IEC 60068-2-6 |
| UL, USA/Canada | |
| Identification | UL 61010 Listed |
| Class I, Div. 2, Groups A, B, C, D T4 | |
| Class I, Zone 2, Group IIC | |
| Air clearances and creepage distances | |
| Standards/regulations | DIN EN 50178 |
| Mounting type | DIN rail mounting |
| Assembly note | No end clamp |
| Mounting position | vertical, horizontal |
