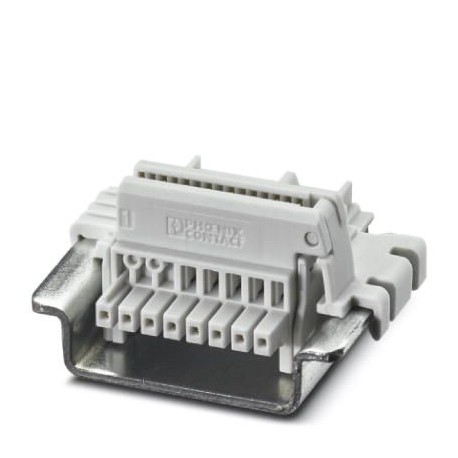

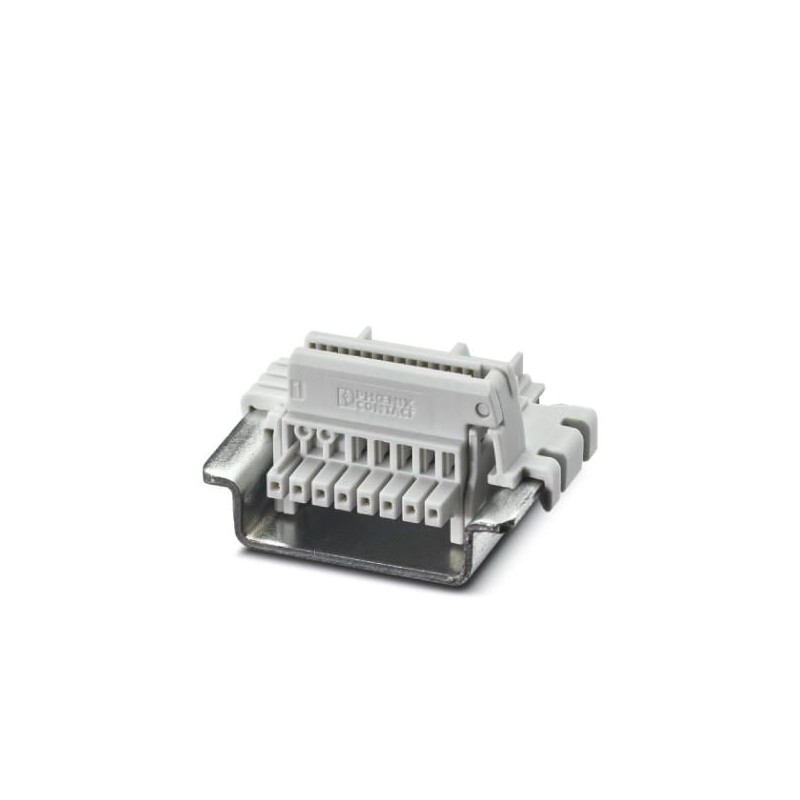

TBUS8-20,0-PPPPPPPS-7035 2202894 PHOENIX CONTACT DIN rail bus connectors
TBUS8-20,0-PPPPPPPS-7035
2202894
PHOENIX_CONTACT
10
DIN rail bus connectors
Rail bus connectors, colour: luminous grey, rated current: 6 A, 4 A (parallel contacts) (serial contacts), rated voltage (III/2): 32 V, number of poles: 8, pitch: 2.54 mm, mounting: rail mounting, locking: without, fastening type: without, packaging type: boxed, articles with gold-plated contacts, bus connectors for connection to electronics boxes, 7 parallel contacts/1 serial contact
Connectors > Printed circuit board connector
Housing (HS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2202894 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| GTIN | 4055626382159 |
| Weight per Piece (excluding packing) | 4.640 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Number of positions | 8 |
|---|---|
| Nominal current IN | 6 A |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Modular spacing contacts (EF007326) | 2.54 mm |
| Modular spacing connections (EF006827) | 2.54 mm |
| Rated current In (EF008250) | 6 A |
| Rated voltage (EF000228) | 32 V |
| Rated surge voltage (EF002993) | 1.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Type of electric connection (EF003961) | Other |
| Suitable for PCB thickness (EF007253) | 1.8 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
