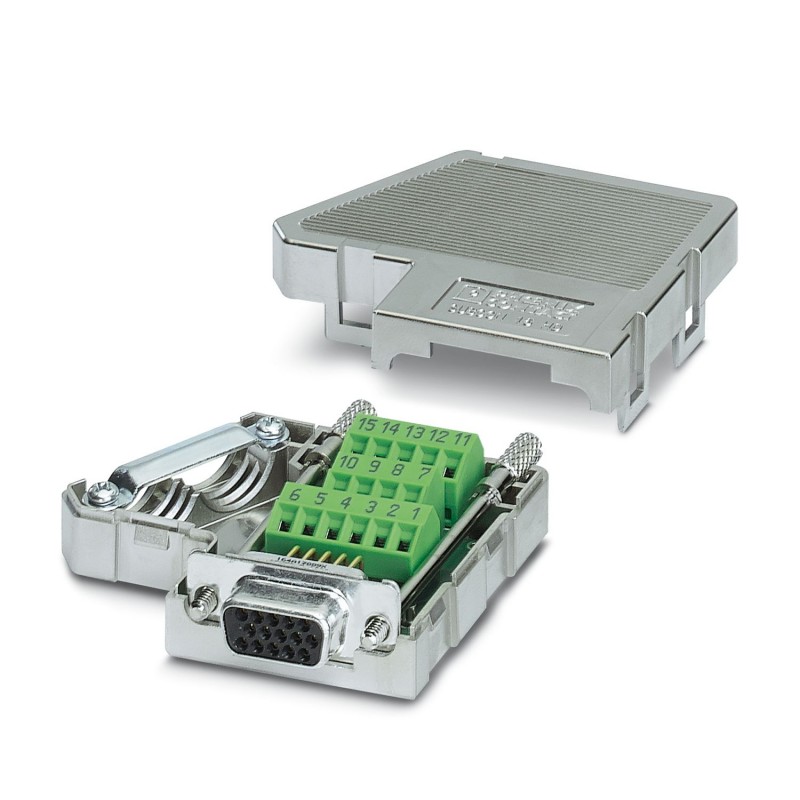

SUBCON 15 HD/F-SH 5604603 PHOENIX CONTACT D-SUB bus connector
SUBCON 15 HD/F-SH
5604603
PHOENIX_CONTACT
D-SUB bus connector
Data and telecommunication > D-Sub connector
Safety
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 5604603 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4046356685221 |
| Weight per Piece (excluding packing) | 76.700 g |
| Custom tariff number | 85366990 |
| Country of origin | US (United States) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 75 °C |
|---|---|
| Ambient temperature (storage/transport) | -25 °C ... 80 °C |
| Altitude | 5000 m (For restrictions see manufacturer's declaration) |
| Degree of protection | IP20 |
General
| Nominal voltage UN | 48 V AC/DC |
|---|---|
| Nominal current IN | 1 A |
| Signal | Point-to-point |
| Insertion/withdrawal cycles | > 50 |
| SUBCON fixing screws | 4-40 UNC |
| Tightening torque | 0.4 Nm |
| Housing material | ABS, metal-plated |
| Pin assignment | All connections are 1:1 on the screw terminal block |
Connection data
| Connection | D-SUB connection |
|---|---|
| Number of positions | 15 |
| Connection method | High-density D-SUB socket strip |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027140816eCl@ss 4.127140816eCl@ss 5.027143424eCl@ss 5.127143400eCl@ss 6.027143400eCl@ss 7.027440302eCl@ss 8.027440302eCl@ss 9.027440302
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX AUTOMATION EN.pdf | 35 Mbytes |
|
