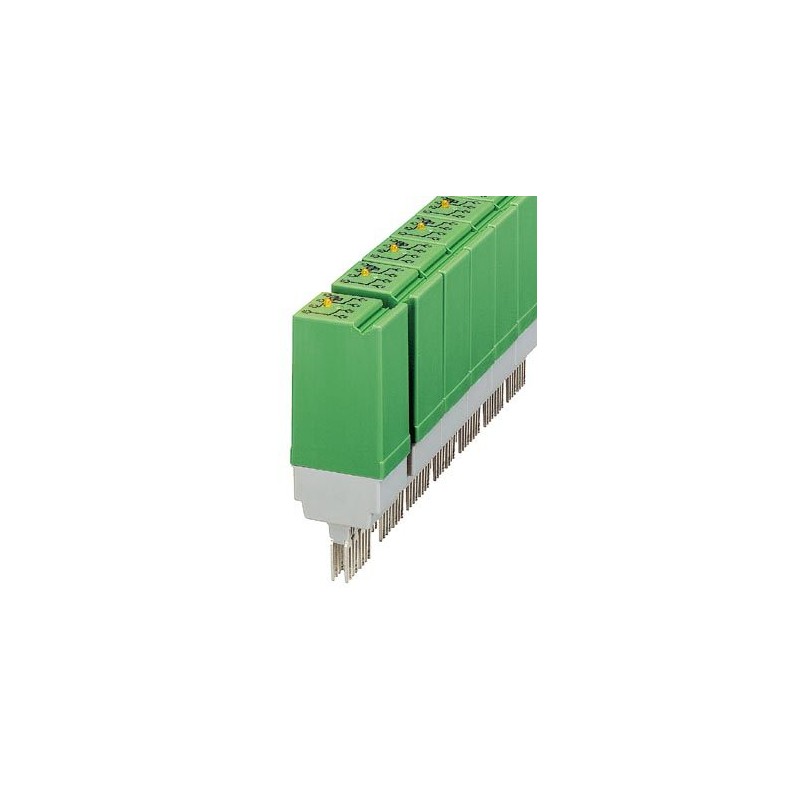

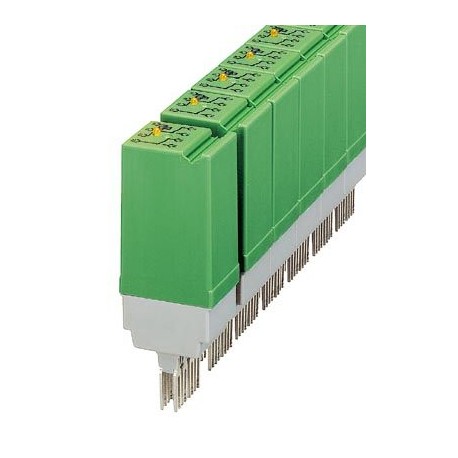

ST-REL4-KG 24/21-21/AU 2829551 PHOENIX CONTACT Relay connectors
ST-REL4-KG 24/21-21/AU
2829551
PHOENIX_CONTACT
Relay connectors
Plug-in relay support, equipped with mini-switching relay, contacts (AgNi+Au): Small to large powers, 2 switched contacts, input voltage 24 V AC/DC, with light indication, pluggable into base terminal blocks
Relays > Switching relay
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2829551 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 89 (IF-2005) |
| GTIN | 4017918078508 |
| Weight per Piece (excluding packing) | 46.420 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 24 V AC/DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 19 mA |
| Typical response time | 9 ms (with DC) |
| Typical release time | 10 ms (with DC) |
| Protective circuit | Bridge rectifier, varistor |
| Operating voltage display | yes |
| Power dissipation for nominal condition | 0.46 W |
Contact side
| Contact type | Single contact, 2-PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | Hard gold plated AgNi |
| Maximum switching voltage | 30 V AC/DC |
| Maximum inrush current | 50 mA |
| Limiting continuous current | 50 mA |
| Interrupting rating (ohmic load) max. | 1.2 W (at 24 V DC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage PDT/PDT | 1 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Net weight (SAP) | 46.42 g |
Standards and Regulations
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
|---|---|
| IEC 60255/DIN VDE 0435 (in relevant parts) | |
| DIN EN 50178/DIN VDE 0160 (in relevant parts) | |
| EN 60730/DIN VDE 0631 | |
| DIN VDE 0160 (in relevant parts) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | Yes |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage AC 50 Hz (EF003978) | 19.2 V |
| Rated control supply voltage AC 60 Hz (EF003979) | 19.2 V |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Voltage type for actuating (EF008242) | AC/DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 0 |
| Number of contacts as change-over contact (EF008257) | 2 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Gold |
| Nominal current (EF000001) | 0.019 A |
| Width (EF000008) | 27 mm |
| Height (EF000040) | 33 mm |
| Depth (EF000049) | 66.5 mm |
