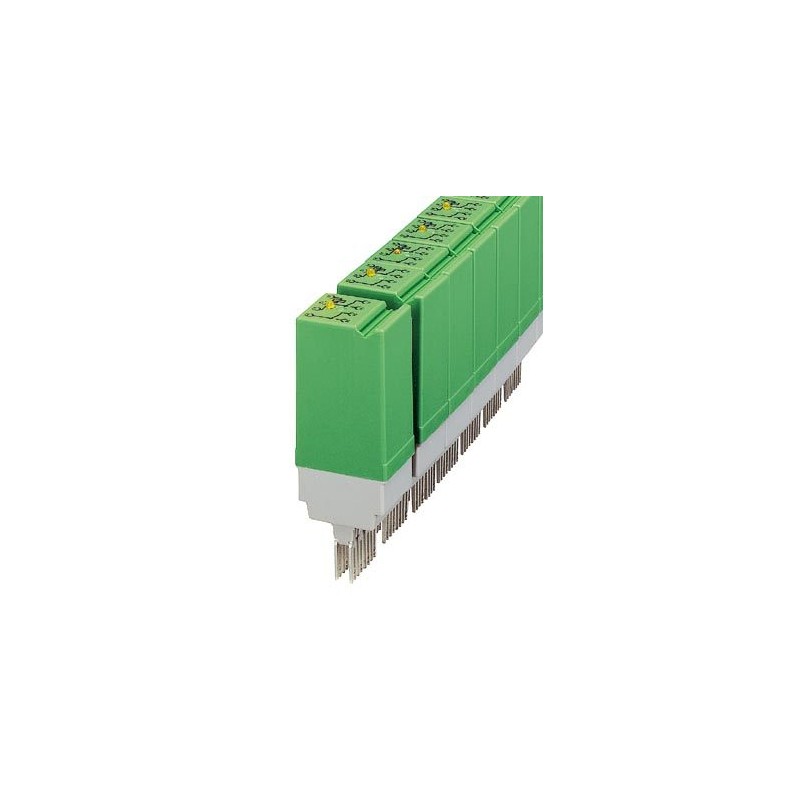

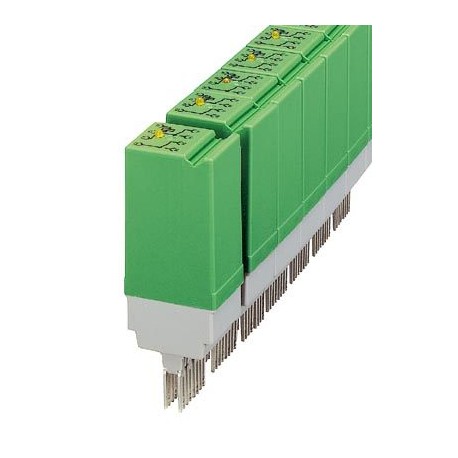

ST-REL4-KG 24/21-21 2823308 PHOENIX CONTACT Relay connectors
ST-REL4-KG 24/21-21
2823308
PHOENIX_CONTACT
Relay connectors
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2823308 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 89 (IF-2005) |
| GTIN | 4017918077334 |
| Weight per Piece (excluding packing) | 46.310 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 50 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 24 V AC/DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.1 |
| Typical input current at UN | 17 mA |
| Typical response time | 9 ms (with DC) |
| Typical release time | 10 ms (with DC) |
| Protective circuit | Bridge rectifier, varistor |
| Operating voltage display | yes |
| Power dissipation for nominal condition | 0.41 W |
Contact side
| Contact type | Single contact, 2-PDT |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Maximum inrush current | 5 A |
| Limiting continuous current | 3 A |
| Interrupting rating (ohmic load) max. | 70 W (at 24 V DC) |
| 85 W (at 48 V DC) | |
| 60 W (at 60 V DC) | |
| 40 W (at 110 V DC) | |
| 60 W (at 220 V DC) | |
| 750 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Test voltage PDT/PDT | 1 kV AC (50 Hz, 1 min.) |
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Net weight (SAP) | 46.31 g |
Standards and Regulations
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
|---|---|
| IEC 60255/DIN VDE 0435 (in relevant parts) | |
| DIN EN 50178/DIN VDE 0160 (in relevant parts) | |
| EN 60730/DIN VDE 0631 | |
| DIN VDE 0160 (in relevant parts) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
