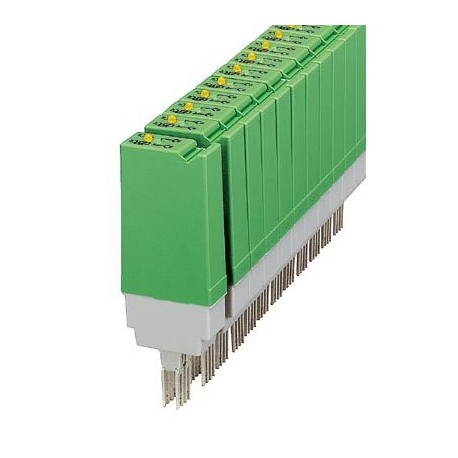

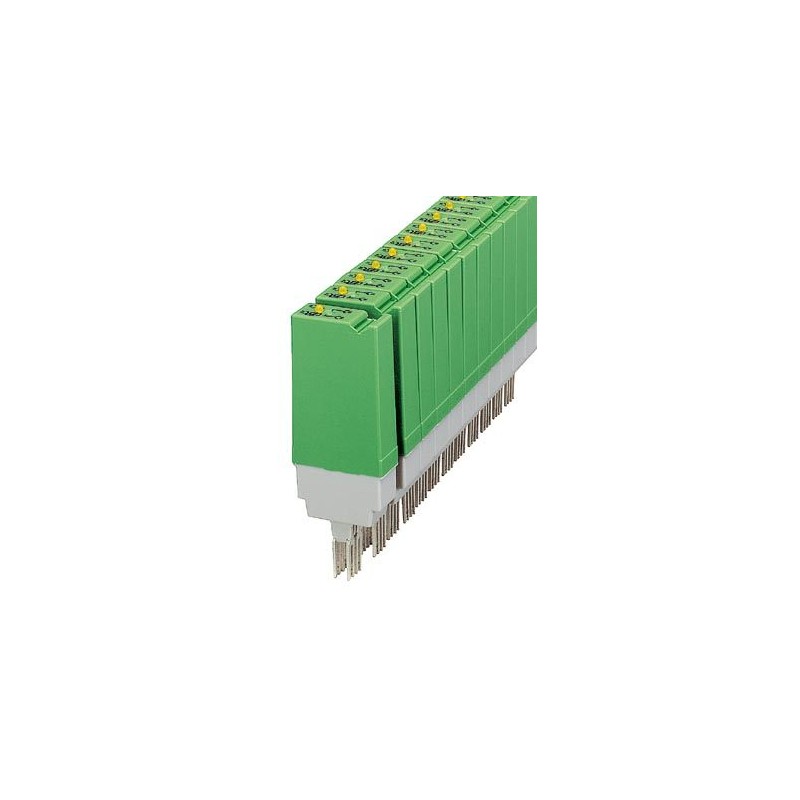

ST-REL2-KG220DC/1 2826512 PHOENIX CONTACT Relay connectors
ST-REL2-KG220DC/1
2826512
PHOENIX_CONTACT
Relay connectors
Plug-in relay bracket, equipped with mini-switching relay, contacts (AgNi): Medium to large powers, 1 open contact, input voltage 220 V DC, with light display, pluggable into base terminal blocks
Relays > Switching relay
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2826512 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 87 (IF-2005) |
| GTIN | 4017918077983 |
| Weight per Piece (excluding packing) | 32.500 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 40 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Coil side
| Nominal input voltage UN | 220 V DC |
|---|---|
| Input voltage range in reference to UN | 0.8 ... 1.06 |
| Typical input current at UN | 4.5 mA |
| Typical response time | 6 ms (with DC) |
| Typical release time | 11 ms (with DC) |
| Protective circuit | Damping diode, polarity protection Damping diode, polarity protection diode, varistor |
| Operating voltage display | yes |
| Power dissipation for nominal condition | 0.99 W |
Contact side
| Contact type | Single contact, 1 N/O contact |
|---|---|
| Type of switch contact | Single contact |
| Contact material | AgNi |
| Maximum switching voltage | 250 V AC/DC |
| Maximum inrush current | 8 A |
| Limiting continuous current | 6 A |
| Interrupting rating (ohmic load) max. | 95 W (at 24 V DC) |
| 50 W (at 48 V DC) | |
| 45 W (at 60 V DC) | |
| 45 W (at 110 V DC) | |
| 75 W (at 220 V DC) | |
| 1500 VA (for 250 V AC) |
General
| Test voltage relay winding/relay contact | 2.5 kV AC (50 Hz, 1 min.) |
|---|---|
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 107cycles |
| Assembly instructions | After every 5 modules, spacing of 10 mm |
| Net weight (SAP) | 32.5 g |
Standards and Regulations
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
|---|---|
| IEC 60255/DIN VDE 0435 (in relevant parts) | |
| DIN EN 50178/DIN VDE 0160 (in relevant parts) | |
| EN 60730/DIN VDE 0631 | |
| DIN VDE 0160 (in relevant parts) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371601eCl@ss 5.127371600eCl@ss 6.027371600eCl@ss 7.027371601eCl@ss 8.027371601eCl@ss 9.027371601
| Feature Name | Feature Value |
|---|---|
| Complete with socket (EF003359) | No |
| With detachable clamps (EF003340) | Yes |
| With LED indication (EF005950) | Yes |
| Rated control supply voltage DC (EF003980) | 176 V |
| Voltage type for actuating (EF008242) | DC |
| Drive, polarization (EF003355) | Polarized |
| Drive, switching attitude (EF003356) | Mono stable |
| Number of contacts as normally closed contact (EF008255) | 0 |
| Number of contacts as normally open contact (EF008256) | 1 |
| Number of contacts as change-over contact (EF008257) | 0 |
| Type of switch contact (EF003358) | Single contact |
| With forced-guided contacts (EF003357) | No |
| Material of contact insert (EF008521) | Other |
| Material of contact surface (EF004020) | Untreated |
| Nominal current (EF000001) | 0.0045 A |
| Width (EF000008) | 14.6 mm |
| Height (EF000040) | 33 mm |
| Depth (EF000049) | 66.5 mm |
