ST-OV2-230AC/ 60DC/1 2905080 PHOENIX CONTACT Solid-state relays
ST-OV2-230AC/ 60DC/1
2905080
PHOENIX_CONTACT
10
Solid-state relays

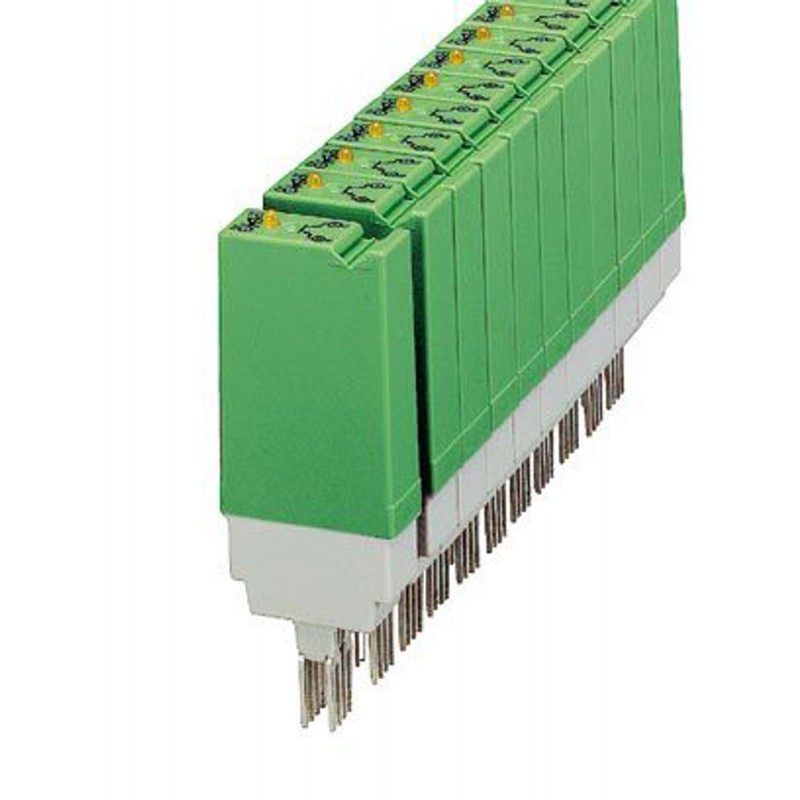

Pluggable solid-state power relay, with indicator light and protection circuit in input and output circuit, input: 230 V AC, output: 12-60 V DC/max. 1 A, pluggable to base terminal block
Industrial Relays
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 2905080 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 90 (IF-2005) |
| GTIN | 4017918079222 |
| Weight per Piece (excluding packing) | 26.590 g |
| Custom tariff number | 85364900 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 230 V AC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 207 V AC ... 253 V AC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 4 mA |
| Typical response time | 3 ms |
| Typical turn-off time | 13 ms |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 10 Hz |
Output data
| Output voltage range | 12 V DC ... 60 V DC |
|---|---|
| Limiting continuous current | 1 A (see derating curve) |
| Surge current | 5 A (t = 1 s) |
| Peak offstate voltage | 60 V DC (Collector-emitter reverse voltage) |
| Voltage drop at max. limiting continuous current | 1.2 V |
| Output circuit | 2-wire, floating |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
General
| Test voltage input/output | 2.5 kV AC |
|---|---|
| Mounting position | any |
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
| DIN VDE 0160 (in relevant parts) |
Standards and Regulations
| Standards/regulations | DIN VDE 0110b, Gr. C for 250 V DC |
|---|---|
| DIN VDE 0160 (in relevant parts) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
