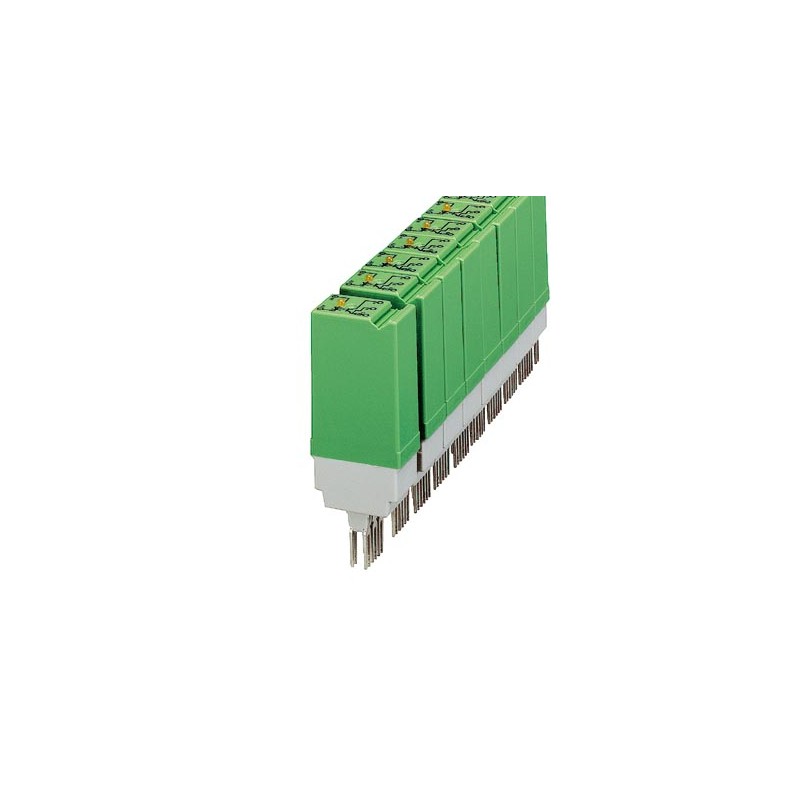

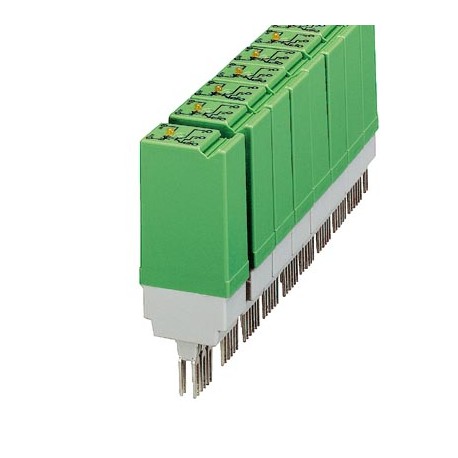

ST-OE3- 24DC/ 48DC/100 2911058 PHOENIX CONTACT Solid-state relays
ST-OE3- 24DC/ 48DC/100
2911058
PHOENIX_CONTACT
Solid-state relays
Industrial Relays
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2911058 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 93 (IF-2002) |
| GTIN | 4017918079482 |
| Weight per Piece (excluding packing) | 27.590 g |
| Custom tariff number | 85364190 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Input data
| Nominal input voltage UN | 24 V DC |
|---|---|
| Input voltage range in reference to UN | 0.9 ... 1.1 |
| Input voltage range | 21.6 V DC ... 26.4 V DC |
| Switching threshold "0" signal in reference to UN | ≤ 0.4 |
| Switching threshold "1" signal in reference to UN | ≥ 0.8 |
| Typical input current at UN | 9 mA |
| Typical response time | 50 µs |
| Typical turn-off time | 100 µs |
| Status display | Yellow LED |
| Type of protection | Reverse polarity protection |
| Surge protection | |
| Protective circuit/component | Polarity protection diode |
| Transmission frequency | 300 Hz |
Output data
| Output voltage range | 8 V DC ... 48 V DC |
|---|---|
| Limiting continuous current | 100 mA |
| Voltage drop at max. limiting continuous current | 1.2 V |
| Output circuit | 2-conductor floating, 3-conductor ground-referenced |
| Type of protection | Reverse polarity protection |
| Free running | |
| Protective circuit/component | Polarity protection diode |
| Damping diode | |
| Output resistor | approx. 22 kΩ (for 3-wire connection) |
General
| Test voltage input/output | 2.5 kV AC |
|---|---|
| Mounting position | any |
| Standards/regulations | IEC 60664 |
| IEC 60664A | |
| DIN VDE 0110 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX INTERFACE TECHNOLOGY AND SWITCHING DEVICES EN.pdf | 27 Mbytes |
|
