ST-7EP1N8AH100S
1613591
PHOENIX_CONTACT
1

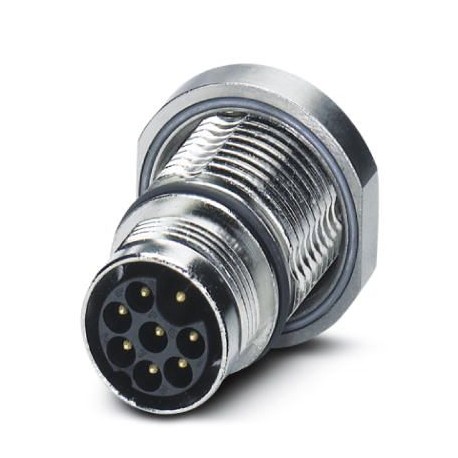

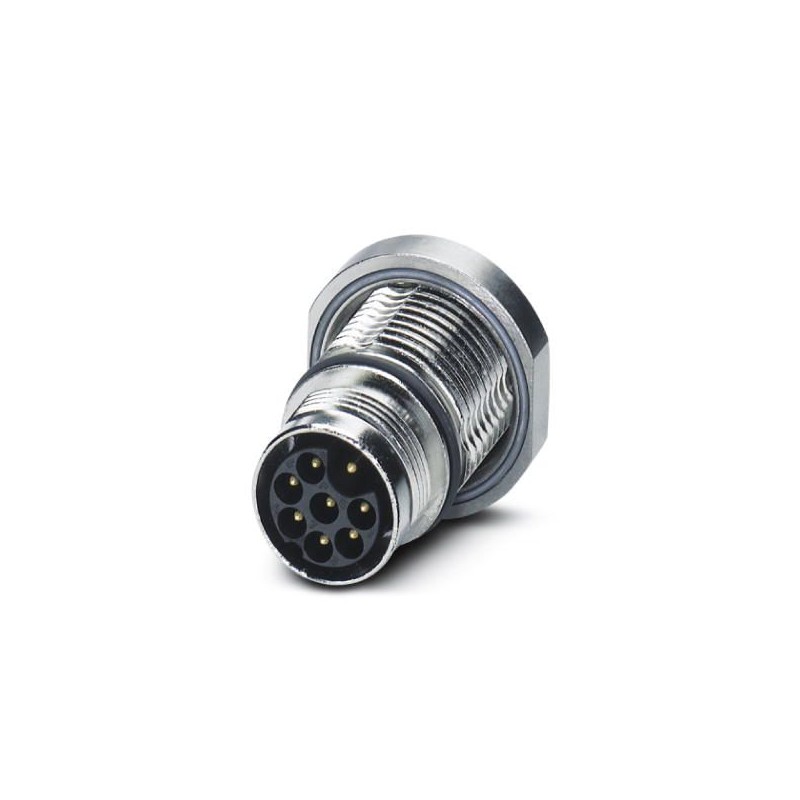

Device connector, rear mounting
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Orderkey | 1613591 |
---|---|
Packing unit | 1 pc |
Note | Made to Order (non-returnable) |
Catalog page | Page 145 (C-2-2017) |
GTIN | 4046356401395 |
Weight per Piece (excluding packing) | 29.000 g |
Custom tariff number | 85366990 |
Country of origin | DE (Germany) |
Note | Order information: Order crimp contacts Ø 1 mm separately |
---|---|
Type of locking | for standard and SPEEDCON interlock |
Direction of rotation of contact chamber numbering | Standard |
Coding | N |
Contact connection method | Crimp connection |
Type of contacts | Pin |
Number of positions | 8 |
Contact diameter of power contacts | 1 mm |
Nominal current per power contact at 25°C | 14 A |
Contact diameter of signal contacts | 1 mm |
Nominal current per signal contact at 25°C | 14 A |
Pg housing screw connection | none |
Mounting type | Central fixing |
Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
---|---|
Insulator material | PA 6.6 |
Gasket and O-ring material | FPM |
Installation height max. | 3000 m |
---|---|
Nominal / operating voltage of power contacts | 630 V |
Rated surge voltage of power contacts | 6 kV |
Overvoltage category of power contacts | III |
Degree of pollution of power contacts | 3 |
China RoHS | Environmentally Friendly Use Period = 50 |
---|---|
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG PHOENIX CONNECTORS EN.pdf | 57 Mbytes |
