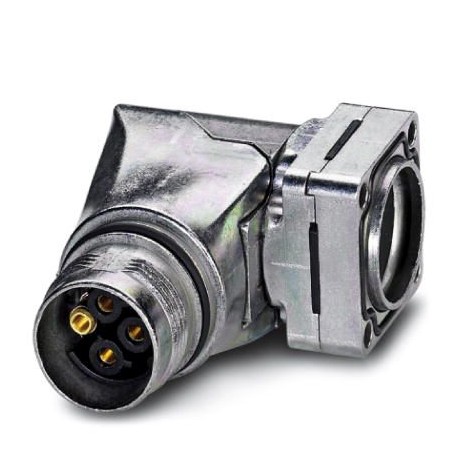

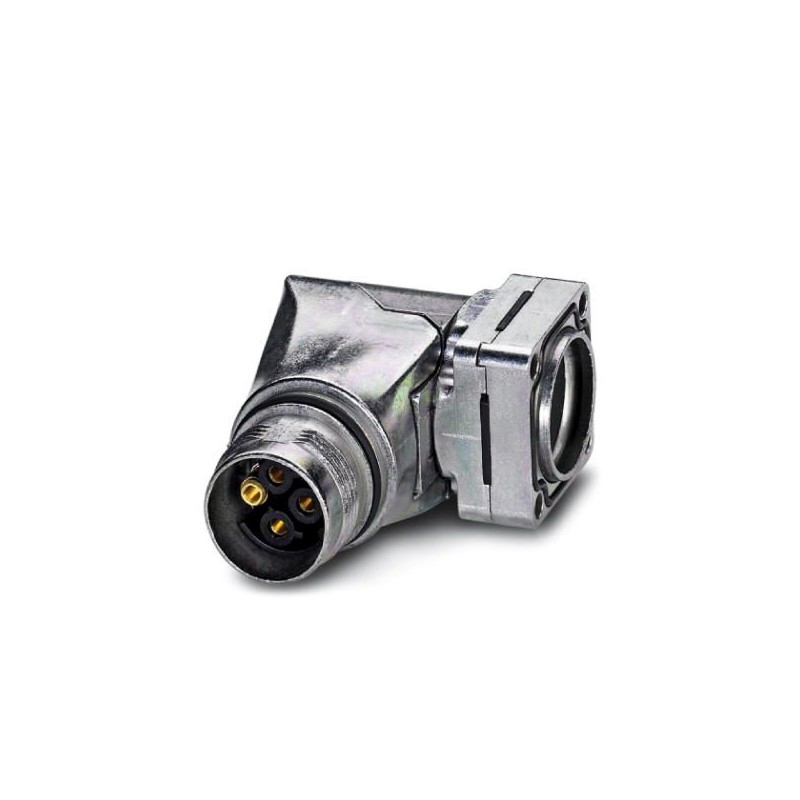

ST-5ES1N8AAD00S 1607726 PHOENIX CONTACT Conect. enchuf. for apar. wall delant., Right angle swivel, Locking ..
ST-5ES1N8AAD00S
1607726
PHOENIX_CONTACT
Conect. enchuf. for apar. wall delant., Right angle swivel, Locking SPEEDCON, M17, number of poles: 5+PE, Type of contact: Socket, Connection set, o-Ring axial, 4xØ2,7, shielded: yes, flange: 21.6 mm x 21.6 mm
Field Device Connectors (FDC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million six hundred seven thousand seven hundred twenty six |
|---|---|
| Packing unit | 16 pcs |
| Key selling | ABRCAL - |
| EAN | Four trillion forty six billion three hundred fifty six million two hundred seventy four thousand two hundred eighty nine |
| Unit weight (excluding packaging) | 1,060 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | (Germany) |
Overview
| Observation | Indication of order: The contacts set Ø 1 mm, must be ordered separately |
|---|---|
| Lock system | Locking SPEEDCON |
| Direction of rotation of the numbering of the contact camera | Standard |
| Encoding | N |
| Connection type of contact | Connection set |
| Type of contacts | Female |
| N. º poles | Six |
| Diameter of contact of the power contacts | 1 mm |
| Rated current per contact power at 25ºC | 14 To |
| Diameter of contact of the signal contacts | 1 mm |
| Cable gland for enclosure Pg | without |
| Mounting type | 4x Ø2,7 |
Material
| Material of the housing | Rotating parts: alloy copper-zinc (CuZn), die-cast parts pressed: zinc (GD-Zn) |
|---|---|
| Insulation Material | PA 6.6 |
| Material of the seal ring and o-ring | FPM |
Data according to DIN en 61984:2001
| Height max. mounting | 3000 m |
|---|---|
| Rated voltage/of Contacts service power | 630 V |
| Rated voltage transient power Contacts | 6 kV |
| Category of surge power Contacts | III |
| Degree of dirt power Contacts | Three |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million one hundred forty three thousand four hundred twenty foureCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand one hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand one hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand one hundred three
UNSPSC 6.01Forty three million one hundred seventy two thousand fifteenUNSPSC 7.0901Forty three million two hundred one thousand four hundred fourUNSPSC 11Forty three million one hundred seventy two thousand fifteenUNSPSC 12.01Forty three million two hundred one thousand four hundred fourUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred thirteen
