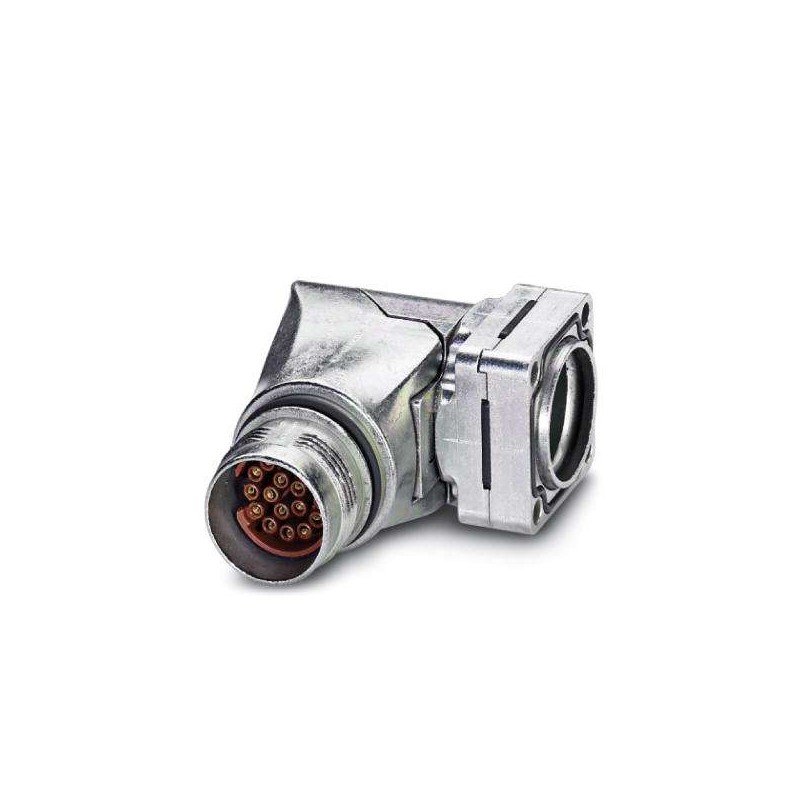

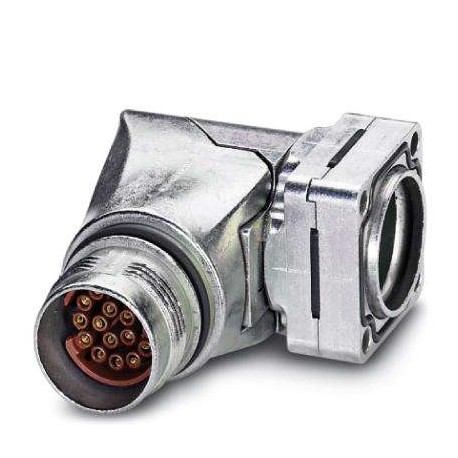

ST-17S1N8AAE00S 1618124 PHOENIX CONTACT Conect. enchuf. for apar. wall delant., Right angle swivel, Locking ..
ST-17S1N8AAE00S
1618124
PHOENIX_CONTACT
Conect. enchuf. for apar. wall delant., Right angle swivel, Locking SPEEDCON, M17, number of poles: 17, Type of contact: Socket, Connection set, o-Ring axial, 4x Ø3,2, shielded: yes, flange: 25 mm x 25 mm
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Commercial data
| Ordering code | 1618124 |
|---|---|
| Pieces/pack | 16 PCS |
| Sales key | ABRBBL - |
| GTIN | 4046356580984 |
| Weight per piece (excluding packaging) | 63,390 g |
| Customs Tariff number | 85366990 |
generality
| note | Ordering instructions: Crimp contacts Ø 0.6 mm to be ordered separately |
|---|---|
| Clamping Type | SPEEDCON locking |
| Direction of rotation Contact compartment numbering | standard |
| Coding | N |
| Contact connection type | Crimp attachment |
| Contact type | female |
| No. of poles | 17 |
| Contact diameter Power contacts | 0.6 mm |
| Rated voltage per power contact at 25°C | 3.6 A |
| Screwing Pg Housing | without |
| Mounting type | 4x Ø 3.2 |
Indications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Rating/operating voltage of power contacts | 60 V |
| Impulsive tension of dimen. Power Contacts | 1.5 kV |
| Power Contact Overvoltage Category | II |
| Degree of pollution power contacts | 3 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Intended Use Period (EFUP): 50 years |
|---|---|
| Information on hazardous substances can be found in the manufacturer's declaration under "Downloads" |
Charts
eCl@ss 4.0Code 272607xxeCl@ss 4.127260701eCl@ss 5.027143424eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
