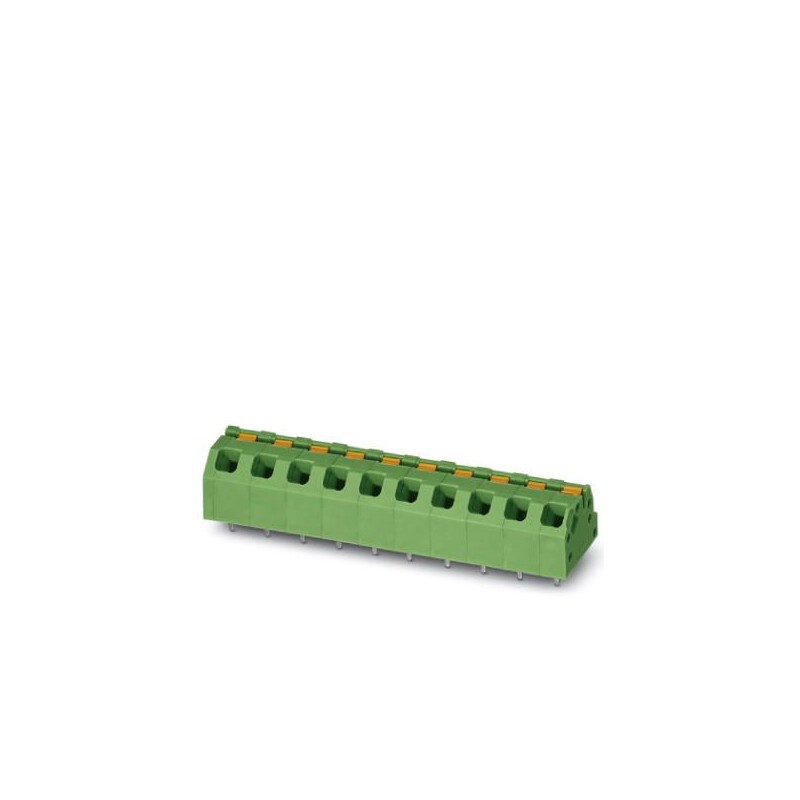

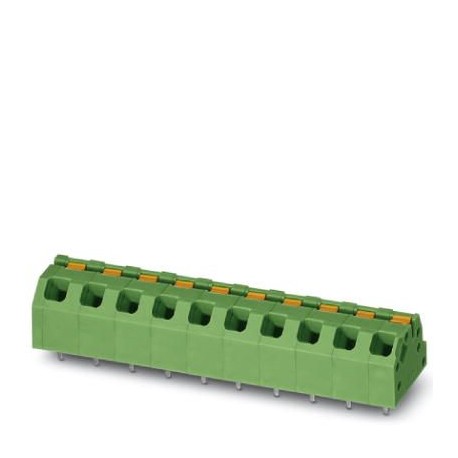

SPTAF 1/ 3-5,0-IL 1862288 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SPTAF 1/ 3-5,0-IL 1862288 PHOENIX CONTACT PCB terminal block

SPTAF 1/ 3-5,0-IL

1862288

PHOENIX_CONTACT

125

Available Ship on today

New orders for this item will be processed from April 13

PCB terminal block

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Quantity Price
125+$0.87
375+$0.77
625+$0.73
875+$0.71
1250+$0.69
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey1862288
Packing unit125 pc
Minimum order quantity125 pc
NoteMade to Order (non-returnable)
GTIN4055626137605
Weight per Piece (excluding packing)1.840 g
Custom tariff number85369010
Country of originPL (Poland)

Dimensions

Length [ l ]11 mm
Pitch5 mm
Dimension a10 mm
Width [ w ]15 mm
Height8 mm
Height [ h ]10.6 mm
Solder pin [P]2.6 mm
Pin spacing5 mm
Hole diameter1.1 mm

General

Range of articlesSPTAF 1/..-IL
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN16 A
Nominal cross section1.5 mm²
Maximum load current16 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length8 mm
Number of positions3

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.1.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.1.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.0.75 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.0.75 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
