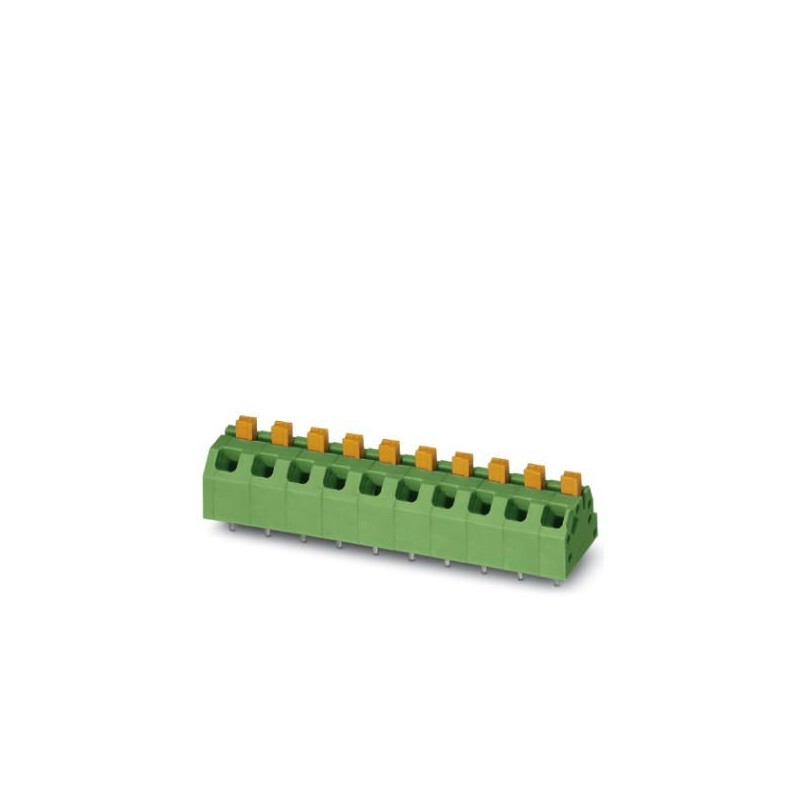

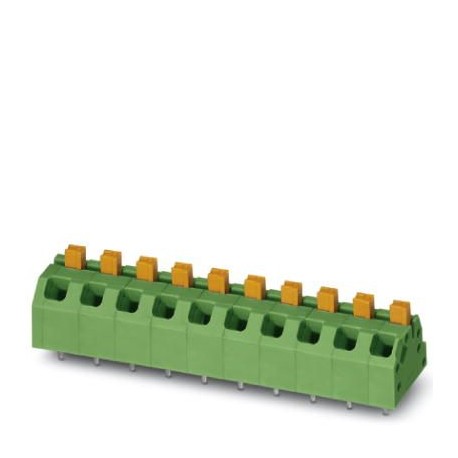

SPTAF 1/ 2-5,0-EL 1862411 PHOENIX CONTACT PCB terminal block
SPTAF 1/ 2-5,0-EL
1862411
PHOENIX_CONTACT
165
PCB terminal block
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1862411 |
|---|---|
| Packing unit | 165 pc |
| Minimum order quantity | 165 pc |
| GTIN | 4055626136547 |
| Weight per Piece (excluding packing) | 1.320 g |
| Custom tariff number | 85369010 |
| Country of origin | PL (Poland) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | SPTAF 1/..-EL |
| Pitch | 5 mm |
| Number of positions | 2 |
| Connection method | Push-in spring connection |
| Mounting type | Wave soldering |
| Pin layout | Linear double pinning |
| Number of levels | 1 |
Electrical parameters
| Rated current | 16 A |
|---|---|
| Rated insulation voltage (III/2) | 320 V |
| Rated surge voltage (III/2) | 4 kV |
Connection capacity
| Conductor cross section solid | 0.2 mm² ... 1.5 mm² |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 1.5 mm² |
| Conductor cross section AWG / kcmil | 24 ... 16 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Stripping length | 8 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (2 - 4 µm Sn) |
| Metal surface soldering area (top layer) | Tin (2 - 4 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Length [ l ] | 11 mm |
| Width [ w ] | 10 mm |
| Height [ h ] | 12.8 mm |
| Pitch | 5 mm |
| Height (without solder pin) | 10.2 mm |
| Solder pin [P] | 2.6 mm |
| Pin spacing | 5 mm |
| Pin dimensions | 0.75 x 0.3 mm |
| Dimension a | 5 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 165 |
| Denomination packing units | Pcs. |
| Outer packaging type | Carton |
Processing notes
| Process | Wave soldering |
|---|---|
| Specification | Following IEC 61760-1:2006-04 |
| Following IEC 60068-2-54:2006-04 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Test – repeated connection and release | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.2 mm² / solid / > 10 N |
| 0.25 mm² / flexible / > 10 N | |
| 1.5 mm² / solid / > 40 N | |
| 1.5 mm² / flexible / > 40 N |
Electrical tests
| Rated current | 16 A |
|---|---|
| Rated insulation voltage (III/2) | 320 V |
| Rated surge voltage (III/2) | 4 kV |
Air clearances and creepage distances
| Insulating material group | I |
|---|---|
| Voltage | 250 V |
| Rated insulation voltage (III/3) | 250 V |
| Rated insulation voltage (III/2) | 320 V |
| Rated insulation voltage (II/2) | 630 V |
| Rated surge voltage (III/3) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (II/2) | 4 kV |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
