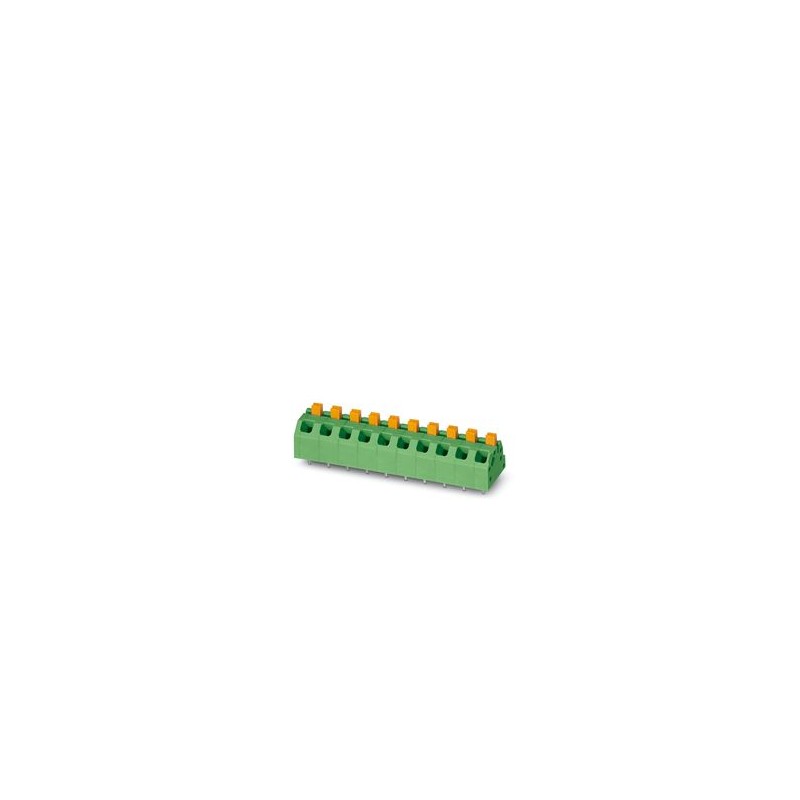

SPTAF 1/12-5,0-EL MC:RD-BN 1525863 PHOENIX CONTACT Printed circuit board terminal, nominal current: 16 A, no..
SPTAF 1/12-5,0-EL MC:RD-BN
1525863
PHOENIX_CONTACT
50
Printed circuit board terminal, nominal current: 16 A, nominal voltage (III/2): 320 V, nominal section: 1.5 mm2, number of rows: 1, number of poles per row: 12, article family: SPTAF 1/.. -EL, pitch: 5mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 45°, color: multicolor, Pin arrangement: Linear pin arrangement, Pin length [P]: 2.6mm, number of solder pins per potential: 2, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Technical data
Item Properties
| Product Line | COMBICON Terminals S |
| Product Type | Printed Circuit Board Terminal |
| Product Family | SPTAF 1/.. -THE |
| Number of poles | 12 |
| Step | 5 mm |
| Number of rows | 1 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 2 |
Electrical Properties
| Nominal Current IN | 16 A |
| Nominal voltage UN | 320 V |
| Degree of pollution | 3 |
| Sizing voltage (III/3) | 250 V |
| Dimensioning transient voltage (III/3) | 4 kV |
| Dimensioning voltage (III/2) | 320 V |
| Dimensioning Transient Voltage (III/2) | 4 kV |
| Nominal voltage (II/2) | 630 V |
| Dimensioning transient voltage (II/2) | 4 kV |
Connection data
| Connection technology | |
| Nominal Section | 1.5 mm² |
| Connecting Conductors | |
| Connection type | Push-in spring connection |
| Rigid conductor section | 0.2 mm² ... 1.5 mm² (In the connection and possible alignment of a rigid 1.5 mm² conductor, mechanical transverse forces that may affect the terminal block must be absorbed by means of a lateral stabilizer.) |
| 0.34 mm² ... 1.5 mm² (Push-in connection) | |
| Flexible conductor section | 0.2 mm² ... 1.5 mm² |
| AWG Conductor Section | 24 ... 16 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 0.75 mm² (Connection of conductors with open terminal point) |
| 0.5 mm² ... 0.75 mm² (Push-in connection) | |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 0.75 mm² (Connection of conductors with open terminal point) |
| 0.5 mm² ... 0.75 mm² (Push-in connection) | |
| Peel Length | 8 mm |
assembly
| Type of mounting | Wave soldering |
| Pin Design | Linear Pin Arrangement |
Material Data
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (2 - 4 μm Sn) |
| Metal surface weld area (top layer) | Tin (2 - 4 μm Sn) |
| Material data - housing | |
| Color (Housing) | Multicolor () |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data: drive element | |
| Color (Drive Element) | Orange (2003) |
| Insulating material | PBT |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 275 |
| Flammability class according to UL 94 | V0 |
Notes
| A note on the application | Maximum Accepted Cable Insulation Outer Diameter ≤ 3 mm |
Dimensions
| Dimension Scheme |  |
| Step | 5 mm |
| Width [w] | 60 mm |
| Height [h] | 12.8 mm |
| Length [l] | 11 mm |
| Overall Height | 10.2 mm |
| Weld Pin Length [P] | 2.6 mm |
| Temple Dimensions | 0.75 x 0.3 mm |
| Printed circuit board design | |
| Hole diameter | 1.1 mm |
Mechanical testing
| Checking for damage to conductors and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Repeated connection and disconnection | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Tensile Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | 0.2 mm² / rigid / > 10 N |
| 0.25 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
Electrical Testing
| Heating Verification | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Heating test requirement | The sum of the ambient temperature and the heating of the PCB connection terminal cannot exceed the upper limit temperature. |
| Short-term permissible current | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | | |
| Test Specification | DIN EN 60947-1 (VDE 0660-100):2011-10 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 250 V |
| Nominal transient voltage (III/3) | 4 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 3 mm |
| Minimum creepage line value (III/3) | 3.2 mm |
| Sizing Insulation Voltage (III/2) | 320 V |
| Nominal transient voltage (III/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 3 mm |
| Minimum creepage line value (III/2) | 1.6 mm |
| Sizing Insulation Voltage (II/2) | 630 V |
| Nominal transient voltage (II/2) | 4 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 3 mm |
| Minimum creepage line value (II/2) | 3.2 mm |
Environmental and life-life conditions
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Sweep speed | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2014-04 |
| Temperature | 850 °C |
| Performance Time | 5 s |
| Aging | |
| Test Specification | DIN EN 60947-7-4 (VDE 0611-7-4):2014-08 |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (depending on the rating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
Packaging Information
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 12.8 mm |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 16 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 2.6 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Other |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 27 Mbytes |
|
