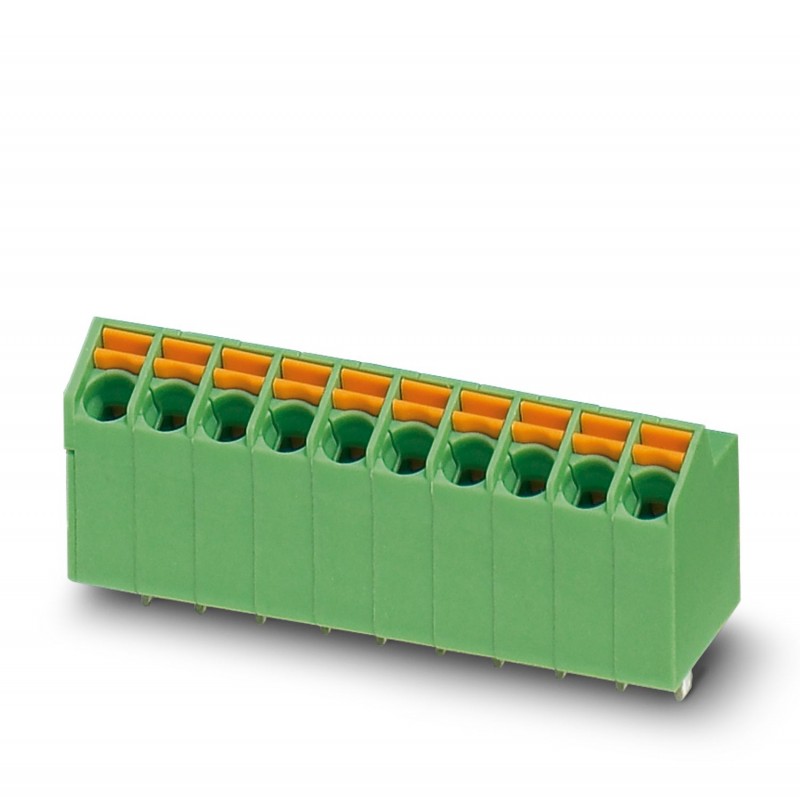

SPTA 1/20-3,5 1119432 PHOENIX CONTACT Terminal for printed circuit board, rated current: 9, pitch: 3.5 mm, n..
SPTA 1/20-3,5
1119432
PHOENIX_CONTACT
25
Product on demand only, returns will not be accepted.
Terminal for printed circuit board, rated current: 9, pitch: 3.5 mm, number of poles: 20, type of connection: spring clamp push-in, mounting: Soldering by wave direction for connection conductor/pcb: 65 °, color: green
Terminal block for printed circuit board, nominal current: 9 A, nominal voltage (III/2): 200 V, nominal cross-section: 1 mm², number of rows: 1, number of poles per row: 20, article family: SPTA 1/, pitch: 3.5 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 65 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of welding pins per potential: 1, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product Type | Printed Circuit Board Terminal |
| Product Family | SPTA 1/ |
| Product Line | COMBICON Terminals S |
| Number of poles | 20 |
| Step | 3.5 mm |
| Number of rows | 1 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 1 |
| Data Maintenance Status | |
| Article Review | 01 |
| Nominal Current IN | 9 A |
| Nominal voltage UN | 200 V |
| Sizing voltage (III/3) | 160 V |
| Dimensioning transient voltage (III/3) | 2.5 kV |
| Dimensioning voltage (III/2) | 200 V |
| Dimensioning Transient Voltage (III/2) | 2.5 kV |
| Nominal voltage (II/2) | 400 V |
| Dimensioning transient voltage (II/2) | 2.5 kV |
| Connection technology | |
| Nominal Section | 1 mm² |
| Connecting Conductors | |
| Connection type | Push-in spring connection |
| Rigid conductor section | 0.2 mm² ... 1.5 mm² |
| Flexible conductor section | 0.2 mm² ... 1.5 mm² |
| AWG Conductor Section | 24 ... 16 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 0.75 mm² |
| Peel Length | 8 mm |
| Type of mounting | Wave soldering |
| Pin Design | Linear Pin Arrangement |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Malleable cast iron tinning |
| Metal surface of the terminal point (top layer) | Tin (4 - 8 μm Sn) |
| Metal surface weld area (top layer) | Tin (4 - 8 μm Sn) |
| Material data - housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| Material data: drive element | |
| Color (Drive Element) | Orange (2003) |
| Insulating material | PBT |
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 275 |
| Flammability class according to UL 94 | V0 |
| Dimension Scheme |  |
| Step | 3.5 mm |
| Width [w] | 70.6 mm |
| Height [h] | 15.9 mm |
| Length [l] | 10 mm |
| Overall Height | 12.4 mm |
| Weld Pin Length [P] | 3.5 mm |
| Temple Dimensions | 0.6 x 1 mm |
| Printed circuit board design | |
| Spacing between rods | 3.5 mm |
| Hole diameter | 1.1 mm |
| Checking for damage to conductors and loosening | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Result | Approved Test |
| Tensile Test | |
| Test Specification | DIN EN 60999-1 (VDE 0609-1):2000-12 |
| Conductor Section/Conductor Type/Tensile Force Nominal Value/Actual Value | 0.2 mm² / rigid / > 10 N |
| 0.2 mm² / flexible / > 10 N | |
| 1.5 mm² / rigid / > 40 N | |
| 1.5 mm² / flexible / > 40 N | |
| Heating Verification | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Heating test requirement | The sum of the ambient temperature and the heating of the PCB connection terminal cannot exceed the upper limit temperature. |
| Short-term permissible current | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Insulation resistance | |
| Test Specification | DIN EN 60512-3-1:2003-01 |
| Insulation Resistance Adjacent Poles | > 5 MΩ |
| Creepage Lines & Air Isolation Distances | |
| Test Specification | DIN EN 60947-1 (VDE 0660-100):2015-09 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 160 V |
| Nominal transient voltage (III/3) | 2.5 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 1.5 mm |
| Minimum creepage line value (III/3) | 2 mm |
| Sizing Insulation Voltage (III/2) | 200 V |
| Nominal transient voltage (III/2) | 2.5 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 1.5 mm |
| Minimum creepage line value (III/2) | 1.5 mm |
| Sizing Insulation Voltage (II/2) | 400 V |
| Nominal transient voltage (II/2) | 2.5 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 1.5 mm |
| Minimum creepage line value (II/2) | 2 mm |
| Vibration test | |
| Test Specification | DIN EN 60068-2-6 (VDE 0468-2-6):2008-10 |
| frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test Directions | X, Y, and Z axes |
| Essay filam. incandescent | |
| Test Specification | DIN EN 60695-2-10 (VDE 0471-2-10):2014-04 |
| Temperature | 850 °C |
| Performance Time | 5 s |
| Aging | |
| Test Specification | DIN EN IEC 60947-7-4 (VDE 0611-7-4):2019-10 |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Type of packaging | Boxed Packaging |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 15.9 mm |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 3.5 mm |
| Rated current In (EF008250) | 9 A |
| Rated voltage (EF000228) | 200 V |
| Rated surge voltage (EF002993) | 2.5 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 1.5 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.1 mm |
| Length pin (EF006825) | 3.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
