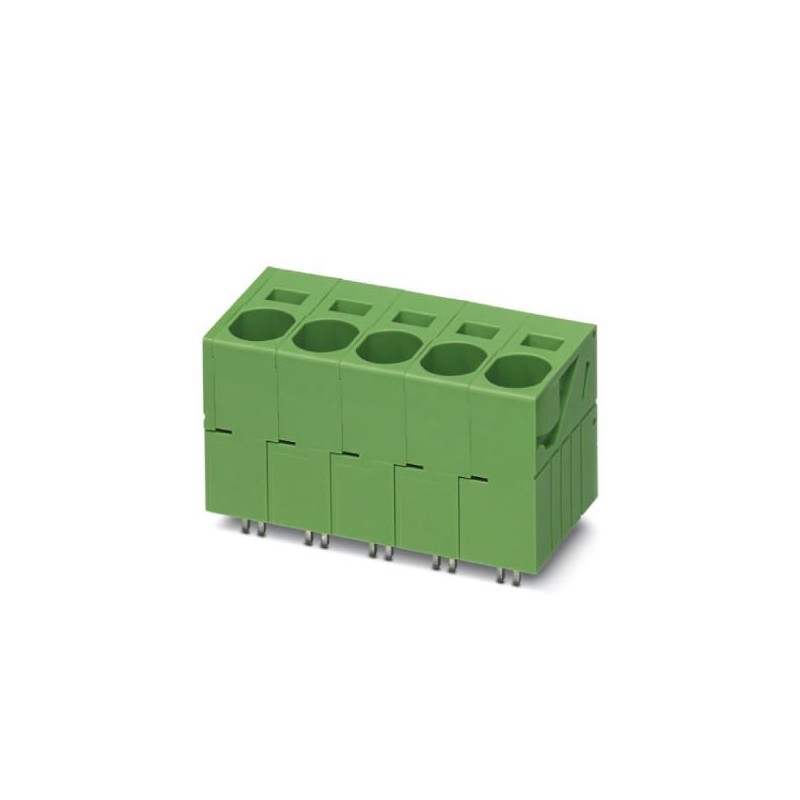

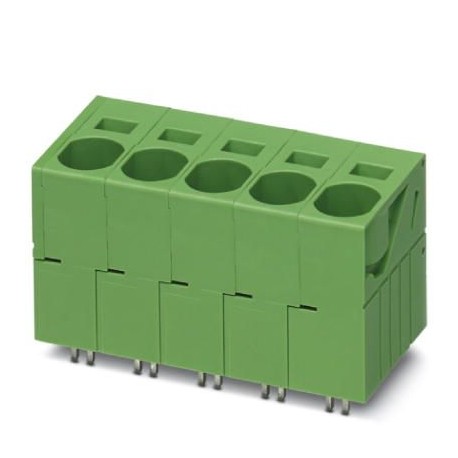

SPT 35/ 2-V-15,00 1845344 PHOENIX CONTACT PCB terminal block
SPT 35/ 2-V-15,00
1845344
PHOENIX_CONTACT
20
PCB terminal block
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1845344 |
|---|---|
| Packing unit | 20 pc |
| Minimum order quantity | 20 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356989589 |
| Weight per Piece (excluding packing) | 45.000 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | SPT 35/..-V |
| Pitch | 15 mm |
| Number of positions | 2 |
| Connection method | Push-in spring connection |
| Mounting type | Wave soldering |
| Pin layout | Linear double pinning |
| Number of levels | 1 |
Electrical parameters
| Rated current | 125 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Connection capacity
| Conductor cross section solid | 1.5 mm² ... 16 mm² |
|---|---|
| Conductor cross section flexible | 1.5 mm² ... 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 1.5 mm² ... 35 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 1.5 mm² ... 35 mm² |
| Stripping length | 25 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Metal surface terminal point (top layer) | Tin (10 - 16 µm Sn) |
| Metal surface soldering area (top layer) | Tin (10 - 16 µm Sn) |
Material data - housing
| Insulating material | PA |
|---|---|
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Length [ l ] | 35.2 mm |
| Width [ w ] | 35.2 mm |
| Height [ h ] | 44.2 mm |
| Pitch | 15 mm |
| Height (without solder pin) | 38.3 mm |
| Solder pin [P] | 5.9 mm |
| Pin spacing | 16 mm |
| Pin dimensions | 1.5 x 1.5 mm |
| Dimension a | 15 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 20 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Test for conductor damage and slackening | IEC 60999-1:1999-11 |
|---|---|
| Test passed |
Pull-out test
| Pull-out test | IEC 60999-1:1999-11 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 1.5 mm² / solid / > 40 N |
| 1.5 mm² / flexible / > 40 N | |
| 16 mm² / solid / > 90 N | |
| 35 mm² / stranded / > 190 N | |
| 35 mm² / stranded with ferrule / > 190 N |
Electrical tests
| Rated current | 125 A |
|---|---|
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
Air clearances and creepage distances
| Insulating material group | I |
|---|---|
| Voltage | 1000 V |
| Rated insulation voltage (III/3) | 1000 V |
| Rated insulation voltage (III/2) | 1000 V |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated surge voltage (III/2) | 8 kV |
| Rated surge voltage (II/2) | 6 kV |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
