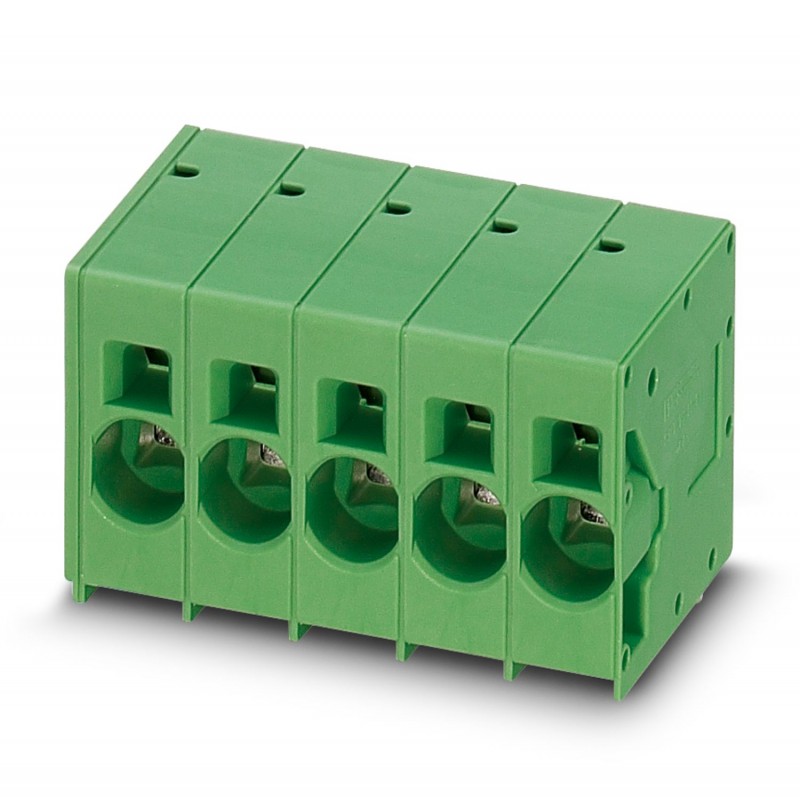

SPT 16/ 5-H-10,0-ZB GY 1096849 PHOENIX CONTACT Terminal for printed circuit board, nominal current: 76 A, st..
SPT 16/ 5-H-10,0-ZB GY
1096849
PHOENIX_CONTACT
50
Terminal for printed circuit board, nominal current: 76 A, step: 10 mm, number of poles: 5, connection type: spring clamp push-in, mounting: Soldering by wave direction for connection conductor/pcb: 0 °, color: grey
Terminal block for printed circuit board, nominal current: 76 A, nominal voltage (III/2): 1000 V, nominal section: 16 mm², number of rows: 1, number of poles per row: 5, family of articles: SPT 16/.. -H, pitch: 10mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: gray, Pin arrangement: W zigzag pins, Pin length [P]: 4mm, number of potential solder pins: 3, packaging type: boxed
Printed circuit board terminal, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of rows: 1, number of positions per row: 5, product range: SPT 16/.. -H, pitch: 10 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: gray, Pin layout: Zigzag pinning W, Solder pin [P]: 4 mm, number of solder pins per potential: 3, type of packaging: packed in cardboard
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product type | Printed circuit board terminal |
| Product family | SPT 16/.. -H |
| Product line | COMBICON Terminals XL |
| Number of positions | 5 |
| Pitch | 10 mm |
| Number of rows | 1 |
| Pin layout | Zigzag pinning W |
| Solder pins per potential | 3 |
| Data management status | |
| Article revision | 00 |
| Nominal current IN | 76 A |
| Rated voltage UN | 1000 V |
| Rated voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| Rated voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| Rated voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| Connection technology | |
| Type | PC terminal block can be aligned |
| Nominal cross section | 16 mm² |
| Conductor connection | |
| Connection method | Push-in spring connection |
| Conductor cross section rigid | 0.75 mm² ... 16 mm² |
| Conductor cross section flexible | 0.75 mm² ... 16 mm² |
| Conductor cross section AWG | 20 ... 4 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.75 mm² ... 16 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.75 mm² ... 10 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.75 mm² ... 4 mm² |
| Stripping length | 18 mm |
| Mounting type | Wave soldering |
| Pin layout | Zigzag pinning W |
| Material data - contact | |
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu alloy |
| Surface characteristics | Tin-plated |
| Metal surface terminal point (top layer) | Tin (10 - 16 μm Sn) |
| Metal surface soldering area (top layer) | Tin (10 - 16 μm Sn) |
| Material data - housing | |
| Color (Housing) | gray (7042) |
| Insulating material | Phantom Assassin |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
| Dimensional drawing |  |
| Pitch | 10 mm |
| Width [w] | 51.8 mm |
| Height [h] | 34 mm |
| Length [l] | 29 mm |
| Installed height | 30 mm |
| Solder pin length [P] | 4 mm |
| Pin dimensions | 1.2 x 1 mm |
| PCB design | |
| Pin spacing | 15 mm |
| Hole diameter | 1.7 mm |
| Connection test | |
| Specification | IEC 60998-2-2:2002-12 |
| Result | Test passed |
| Test for conductor damage and slackening | |
| Specification | IEC 60998-2-2:2002-12 |
| Result | Test passed |
| Pull-out test | |
| Specification | IEC 60998-2-2:2002-12 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.75 mm² / solid / > 30 N |
| 0.75 mm² / flexible / > 30 N | |
| 16 mm² / solid / > 100 N | |
| 16 mm² / flexible / > 100 N | |
| Flexion test | |
| Specification | IEC 60998-2-2:2002-12 |
| Result | Test passed |
| Temperature-rise test | |
| Specification | IEC 60998-2-1:2002-12 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
| Insulation resistance | |
| Specification | IEC 60998-1:2002-12 |
| Insulation resistance, neighboring positions | > 5 MΩ |
| Air clearances and creepage distances | |
| Specification | IEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 1000 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 12.5 mm |
| Rated insulation voltage (III/2) | 1000 V |
| Rated surge voltage (III/2) | 8 kV |
| minimum clearance value - non-homogenous field (III/2) | 8 mm |
| minimum creepage distance (III/2) | 8 mm |
| Rated insulation voltage (II/2) | 1000 V |
| Rated surge voltage (II/2) | 6 kV |
| minimum clearance value - non-homogenous field (II/2) | 5.5 mm |
| minimum creepage distance (II/2) | 5.5 mm |
| Vibration test | |
| Specification | IEC 60068-2-6:1995-03 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Breadth | 0.35 mm (10 Hz... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz... 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
| Glow-wire test | |
| Specification | IEC 60998-1:2002-12 |
| Temperature | 850 °C |
| Time of exposure | 5 s |
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Type of packaging | packed in cardboard |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 34 mm |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 10 mm |
| Rated current In (EF008250) | 76 A |
| Rated voltage (EF000228) | 1000 V |
| Rated surge voltage (EF002993) | 8 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Spring clamp connection |
| Connectable conductor cross section solid-core (EF007337) | 0.75 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.75 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.75 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 16 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.7 mm |
| Length pin (EF006825) | 4 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Grey |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of PCB fastening (EF008226) | Connecting contact |
| Type of fastening (EF002442) | Solder |
| Type of banding (EF007011) | Carton (for SMD) |
