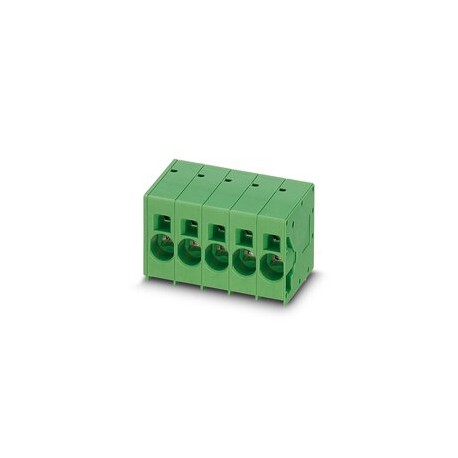

SPT 16/12-H-10,0-ZB MIXCRDBUBD 1804592 PHOENIX CONTACT PCB terminal block, nominal current: 76 A, nom. volta.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

SPT 16/12-H-10,0-ZB MIXCRDBUBD 1804592 PHOENIX CONTACT PCB terminal block, nominal current: 76 A, nom. volta..

SPT 16/12-H-10,0-ZB MIXCRDBUBD

1804592

PHOENIX_CONTACT

10

PCB terminal block, nominal current: 76 A, nom. voltage: 1000 V, pitch: 10 mm, number of positions: 12, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: multi-color

PCB terminal block, nominal current: 76 A, rated voltage (III/2): 1000 V, nominal cross section: 16 mm2, number of rows: 1, number of positions per row: 12, product range: SPT 16/..-H, pitch: 10 mm, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, Pin layout: Zigzag pinning W, Solder pin [P]: 4 mm, number of solder pins per potential: 3, type of packaging: packed in cardboard

More details


PCB Connectors (PCC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data
Product properties
TypePC terminal block can be aligned
Product lineCOMBICON Terminals XL
Product typePrinted circuit board terminal
Product familySPT 16/..-H
Number of positions12
Pitch10 mm
Number of rows1
Pin layoutZigzag pinning W
Solder pins per potential3
Electrical properties
Nominal current IN76 A
Nominal voltage UN1000 V
Degree of pollution3
Rated voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
Rated voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
Rated voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
Connection data
Connection technology
TypePC terminal block can be aligned
Nominal cross section16 mm²
Conductor connection
Connection methodPush-in spring connection
Conductor cross section rigid0.75 mm² ... 16 mm²
Conductor cross section flexible0.75 mm² ... 16 mm²
Conductor cross section AWG20 ... 4
Conductor cross section flexible, with ferrule without plastic sleeve0.75 mm² ... 16 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.75 mm² ... 4 mm²
Stripping length18 mm
Mounting
Mounting typeWave soldering
Pin layoutZigzag pinning W
Connection methodPush-in spring connection
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsTin-plated
Metal surface terminal point (top layer)Tin (10 - 16 µm Sn)
Metal surface soldering area (top layer)Tin (10 - 16 µm Sn)
Material data - housing
Color ()()
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Dimensions
Dimensional drawinghxwaiuudgf.jpeg
Pitch10 mm
Width [w]121.8 mm
Height [h]34 mm
Length [l]29 mm
Installed height30 mm
Solder pin length [P]4 mm
Pin dimensions1.2 x 1 mm
PCB design
Pin spacing15 mm
Hole diameter1.7 mm
Mechanical tests
Connection test
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Test for conductor damage and slackening
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Pull-out test
SpecificationIEC 60998-2-2:2002-12
Conductor cross section/conductor type/tractive force setpoint/actual value0.75 mm² / solid / > 30 N
0.75 mm² / flexible / > 30 N
16 mm² / solid / > 100 N
16 mm² / flexible / > 100 N
Flexion test
SpecificationIEC 60998-2-2:2002-12
ResultTest passed
Insulation holder for crimp connections
ResultTest passed
Electrical tests
Temperature-rise test
SpecificationIEC 60998-2-1:2002-12
Requirement temperature-rise testIncrease in temperature ≤ 45 K
Insulation resistance
SpecificationIEC 60998-1:2002-12
Insulation resistance, neighboring positions> 5 MΩ
Air clearances and creepage distances
SpecificationIEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)1000 V
Rated surge voltage (III/3)8 kV
minimum clearance value - non-homogenous field (III/3)8 mm
minimum creepage distance (III/3)12.5 mm
Rated insulation voltage (III/2)1000 V
Rated surge voltage (III/2)8 kV
minimum clearance value - non-homogenous field (III/2)8 mm
minimum creepage distance (III/2)8 mm
Rated insulation voltage (II/2)1000 V
Rated surge voltage (II/2)6 kV
minimum clearance value - non-homogenous field (II/2)5.5 mm
minimum creepage distance (II/2)5.5 mm
Environmental and real-life conditions
Vibration test
SpecificationIEC 60068-2-6:1995-03
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Sweep speed5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Glow-wire test
SpecificationIEC 60998-1:2002-12
Temperature850 °C
Time of exposure5 s
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (Depending on the current carrying capacity/derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard
