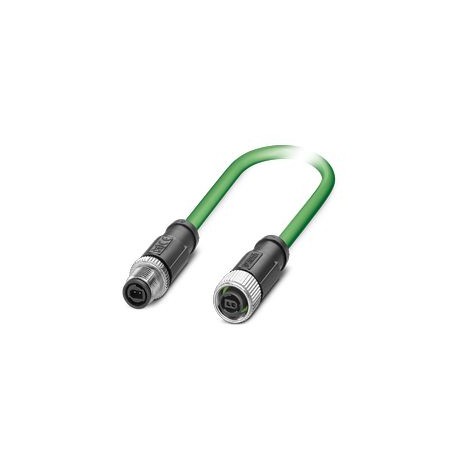

SPE-T1-M12MS/ 1,0-99B/M12FS 1478372 PHOENIX CONTACT Network cable, Single Pair Ethernet CAT B (1 GBit/s), 2-..
SPE-T1-M12MS/ 1,0-99B/M12FS
1478372
PHOENIX_CONTACT
Network cable, Single Pair Ethernet CAT B (1 GBit/s), 2-pole halogen-free, shielded (Advanced Shielding Technology), Straight connector M12-SPE / IP67, to Straight female M12-SPE / IP67, cable length: 1 m
Industrial Field Connectivity (IFC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲More info
▲| Product Type | Ready-made data cable |
| Sensor Type | Single Pair Ethernet |
| Number of poles | 2 |
| application | Standard |
| Number of Cable Outlets | 1 |
| Shielded | Yes |
| Insulation Properties | |
| Surge Category | I |
| Bus system | Ethernet |
| Signal Type/Category | Single Pair Ethernet CAT B (ISO/IEC 63171), 1 Gb/s |
| Status Indication | No |
| Available Status Indication | No |
| Nominal voltage UN | 72 V DC |
| Transmission Medium | copper |
| Flammability class according to UL 94 | V0 |
| Connection 1 | |
| Construction | M12-SPE / IP67 Straight Connector |
| Shielded | Yes |
| Plug Cycles | ≤ 100 |
| Protection Index | IP67 |
| Ambient Temperature (Service) | -25 °C ... 85 °C |
| Connection 2 | |
| Construction | Straight Female M12-SPE / IP67 |
| Shielded | Yes |
| Grip body color | black |
| Material | CuSn (Contact) |
| Ni/Au (Surface Contacts) | |
| PP (Contact Support) | |
| TPU, low flammable, self-extinguishing (Grip body) | |
| Zinc die-casting, nickel-plated (Screw connection) | |
| FKM (Board) | |
| Plug Cycles | ≤ 100 |
| Protection Index | IP67 |
| Ambient Temperature (Service) | -25 °C ... 85 °C |
| Cable length | 3 / |
| Single Pair Ethernet PUR Flexible Green [99B] | |
| Dimension Scheme |  |
| Cable Weight | 42 kg/km |
| UL AWM Style | 20233 (80°C/300V) |
| Number of poles | 2 |
| Shielded | Yes |
| Cable type | Single Pair Ethernet PUR Flexible Green [99B] |
| Conductor Design | 1 x 2 x AWG 22/7, S/FTP |
| Conductor Construction Signal Cable | 7x |
| AWG Signal Line | 22 |
| Line Section | 2x 0.34 mm² |
| Conductor diameter incl. insulation | 1.8 mm |
| Cable Outer Diameter | 5.8 mm ±0.3 mm |
| Outer Wrap, Material | PUR |
| Outer Wrap, Color | green |
| Conductive Material | Naked Cu Conductor |
| Material: Conductor Insulation | Foamed PE |
| Single Driver, Color | white, blue |
| Wall Thickness Outer Wrap | 0.8 mm |
| Pair wiring | 2 conductors as pair |
| Total cabling | 1 pair with lengthwise braided fillings |
| Visual Screen Cover | 90 % |
| Insulation resistance | ≥ 5 GΩ*km |
| Polishing resistance | ≤ 120.00 Ω/km |
| Self-impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Line Capacity | 48 nF/km |
| Nominal Voltage Cable | ≤ 100 V |
| Test Voltage Conductor/Conductor | 1000 V (50 Hz, 1 min.) |
| Test Voltage Conductor/Display | 1000 V (50 Hz, 1 min.) |
| Minimum bending radius, fixed | 4 x D |
| Minimum bending radius, flexibly positioned | 8 x D |
| Smaller bending radius, fixed mounting | 24 mm |
| Smaller bending radius, movable mounting | 47 mm |
| Flame Resistance | according to IEC 60332-1-2 |
| Oil Resistance | according to DIN EN 60811-404 |
| Ambient Temperature (Service) | -40 °C ... 80°C (cable, fixed arrangement) |
| -25 °C ... 80 °C (Cable, movable arrangement) | |
| -25 °C ... 80 °C (On installation) | |
| Environmental conditions | |
| Protection Index | IP65 |
| IP67 | |
| Denomination of standard | M12 plug-in connector |
| Rules/Provisions | IEC 63171-5 |
| Observation | T1-SPE |
