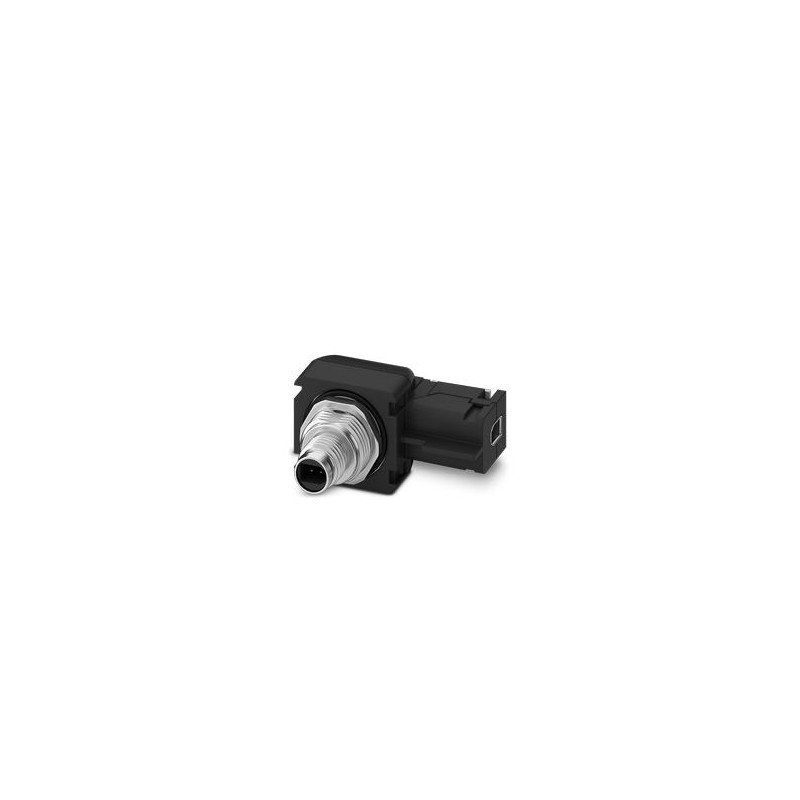

SPE-T1-BH-M8MSM-STRM-90 1358333 PHOENIX CONTACT Control cabinet feedthrough, protection index: IP20, number ..
SPE-T1-BH-M8MSM-STRM-90
1358333
PHOENIX_CONTACT
Control cabinet feedthrough, protection index: IP20, number of poles: 2, material: PA 6.6
Control cabinet feedthroughs
Control cabinet feed-through, degree of protection: IP20, number of positions: 2, material: PA 6.6
Data and telecommunication > Fibre optic attenuator
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Type | SPE |
| Product type | Data plug |
| Number of positions | 2 |
| Number of slots | 2 |
| Shielded | yes |
| Insulation characteristics | |
| Degree of pollution | 2 |
| Rated voltage (II/2) | 72 V |
| Rated surge voltage | 2250 V DC |
| 1000 V DC | |
| Contact resistance | < 20 mΩ |
| Transmission characteristics (category) | CAT B |
| Transmission speed | 1 Gbps |
| Power transmission | PoDL |
| Transmission frequency | 600.00 MHz |
| Width | 18.6 mm |
| Height | 31.8 mm |
| Length | 34.25 mm |
| Color of the housing part | black |
| Flammability rating according to UL 94 | V0 |
| Contact material | Cu alloy |
| Contact surface material | Au/Ni |
| Housing material | PA 6.6 |
| Test voltage Core/Core | 1000 V DC |
| Test voltage Core/Shield | 2250 V DC |
| Halogen-free | yes |
| Flame resistance | yes |
| Mechanical data | |
| Insertion/withdrawal cycles | > 750 |
| Insertion force per signal contact | < 30.00 N (in accordance with IEC 63171) |
| Extraction force per signal contact | < 30 N (in accordance with IEC 63171) |
| Ambient conditions | |
| Degree of protection | IP20 |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Flame resistance | yes |
| Mounting type | Screw thread |
| Feature Name | Feature Value |
|---|---|
| Length (EF001438) | 34.25 mm |
| Height (EF000040) | 31.8 mm |
| Width (EF000008) | 18.6 mm |
| Housing material (EF001596) | Other |
| Mounting method (EF000003) | Other |
| Degree of protection (IP), mounted (EF007466) | IP20 |
