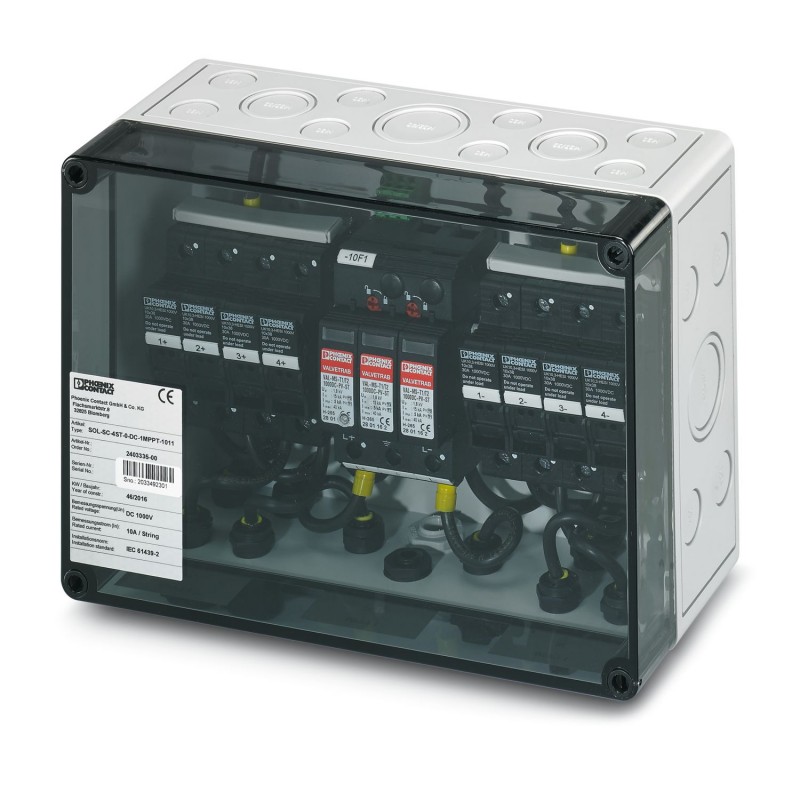

SOL-SC-4ST-0-DC-1MPPT-1011 2403335 PHOENIX CONTACT String combiner
SOL-SC-4ST-0-DC-1MPPT-1011
2403335
PHOENIX_CONTACT
String combiner
String box for photovoltaic installations up to 1000 V DC for the connection of 1x 4 strings. With surge protection (type 1/2), string fuses for the positive and negative side and SUNCLIX DC connectors for the input and output side (SUNCLIX coupling connector included in the scope of delivery).
String combiner box for photovoltaic systems up to 1000 V DC for connecting 1x 4 strings. With surge protection (type 1/2), fuse holders, and SUNCLIX DC connectors for the input and output side (SUNCLIX mating connectors supplied as standard).
Photovoltaics, wind energy > Photovoltaic DC Stringbox
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| Product type | String combiner box (SCB) |
| Scope of delivery | SUNCLIX DC connector for connecting the SCB |
| Design | Fuse holder |
| Insulation characteristics | |
| Protection class | II |
| General | |
| MPP voltage Un | max. 1000 V DC |
| Non-load voltage UOC | max. 1100 V DC |
| Current per string Imax | max. 10 A |
| Total current MPP tracker | max. 40 A |
| Surge protection | |
| EN type | T1 |
| IEC test classification | T1 |
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(10/350) µs | 5 kA |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Short-circuit current rating ISCPV | 40 A |
| DC | |
| Number of inputs: Strings | 4 (per MPP tracker) |
| Number of supported MPP trackers | 1 |
| String | |
| String fuse | Midget / 10.3 x 38 (Not included in the scope of supply) |
| DC | |
| Number of outputs: MPP tracker | 1 |
| Number of outputs: ± | 1 (per MPP tracker) |
| DC input | |
| Type of cable entry | SUNCLIX |
| Cable cross-section range: | 2.5 mm² ... 6 mm² |
| Protective bonding and protective grounding conductor | |
| Type of cable entry | Cable gland |
| Connection method | Screw connection |
| Cable cross-section range: | 2x 16 mm² |
| External cable diameter | 6 mm ... 12 mm |
| DC output | |
| Type of cable entry | SUNCLIX |
| Cable cross-section range: | 2.5 mm² ... 6 mm² |
| Housing | |
| Width | 254 mm |
| Height | 180 mm |
| Depth | 111 mm |
| Material Housing | Polycarbonate |
| Material Cover/door | Polycarbonate (transparent) |
| Ambient conditions | |
| Degree of protection | IP65 |
| Ambient temperature (operation) | -20 °C ... 55 °C |
| Standard designation | Low-voltage switchgear and controlgear assemblies - Part 2: Power switchgear and controlgear assemblies |
| Standards/specifications | EN 61439-2 |
