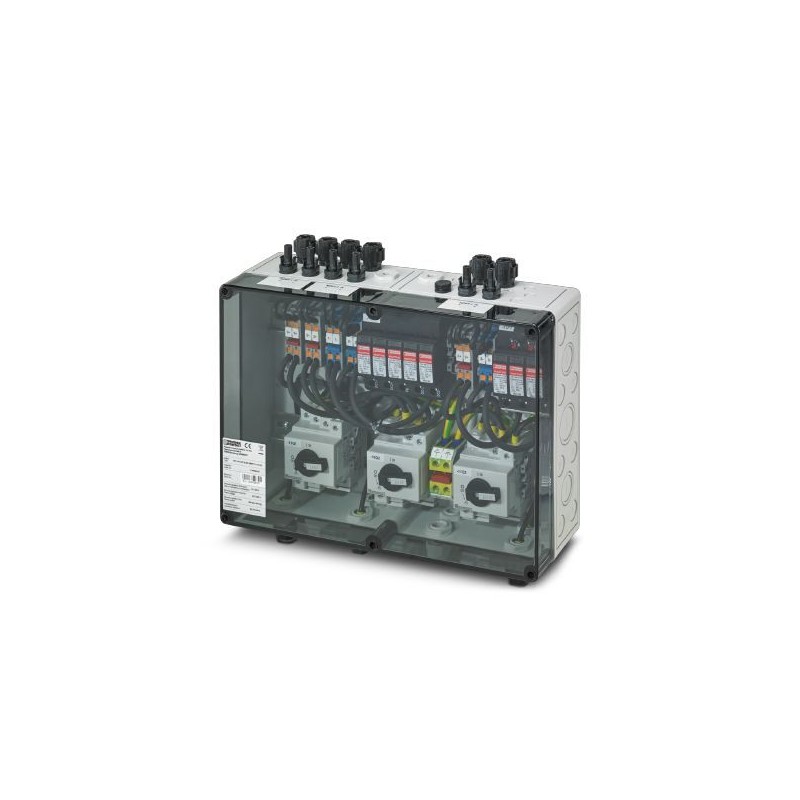

SOL-SC-2ST-0-DC-3MPPT-1101UD 1140960 PHOENIX CONTACT String combiner box for photovoltaic systems up to 1000..
SOL-SC-2ST-0-DC-3MPPT-1101UD
1140960
PHOENIX_CONTACT
String combiner box for photovoltaic systems up to 1000 V DC for connecting 3 x 2 strings. String introduction from above. With surge protection, 3x DC switch disconnectors, and SUNCLIX DC connectors for the input and output sides.
String box for photovoltaic installations up to 1000 V DC for the connection of 3x 2 strings. Guiding the strings from above. With surge protection (type 1/2), 3x DC load disconnectors and SUNCLIX DC connector for the input and output side (SUNCLIX coupling connector included in the scope of delivery).
Photovoltaics, wind energy > Photovoltaic DC Stringbox
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 2 (per MPP tracker) |
| Current per string (max.) | 16 A (Imax) |
| Number of outputs | 1 (per MPP tracker) |
| Number of supported MPP trackers | 3 |
Safety equipment
| Surge protective device | T1 / T2 |
|---|---|
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Total discharge current Itotal(10/350) µs | 5 kA |
Cable entry
| Type of cable entry | SUNCLIX |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Cable cross section output | 2.5 mm² ... 6 mm² |
| Cable cross section grounding | 16 mm² |
| Sealing area grounding | 6 mm ... 12 mm |
General data
| Material cover/door | Polycarbonate (transparent) |
|---|---|
| Degree of protection | IP65 |
| Protection class | II |
Dimensions
| Outer dimensions: width, height, depth | 361 mm x 254 mm x 111 mm (Housing dimensions) |
|---|
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27142422 |
|---|---|
| eCl@ss 5.1 | 27371890 |
| eCl@ss 7.0 | 27142422 |
| eCl@ss 8.0 | 27142422 |
| eCl@ss 9.0 | 27142422 |
