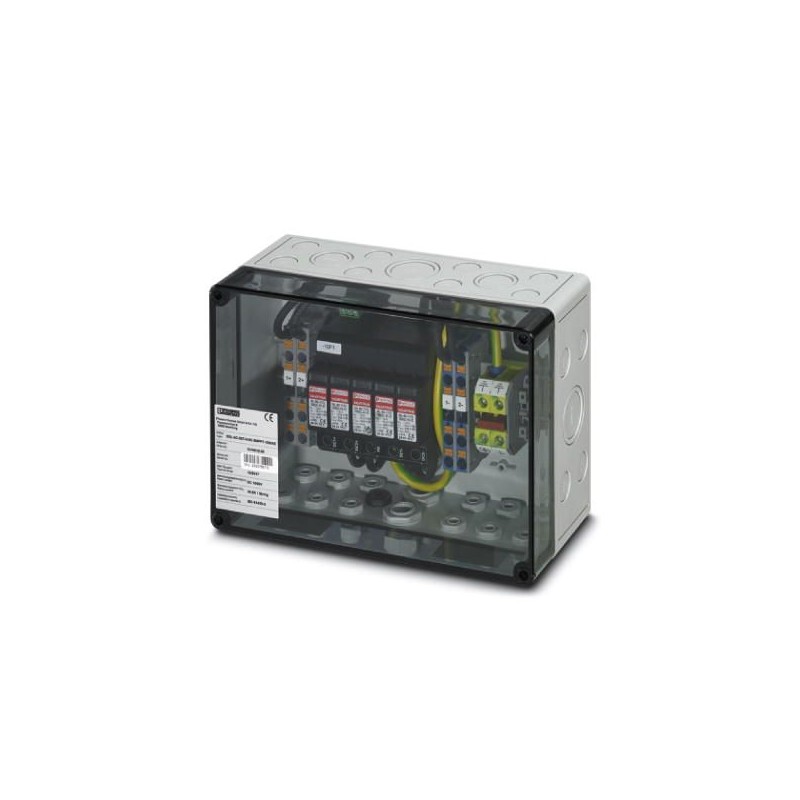

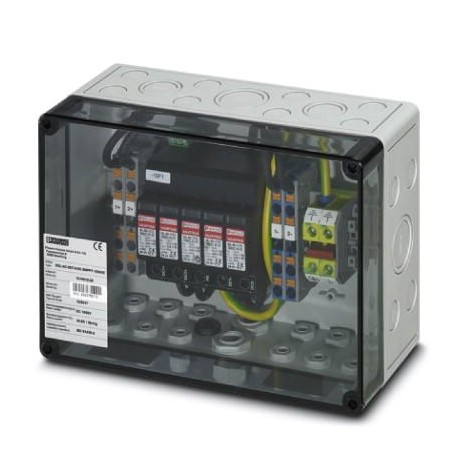

SOL-SC-2ST-0-DC-2MPPT-2000SE 1055628 PHOENIX CONTACT Switching device combination
SOL-SC-2ST-0-DC-2MPPT-2000SE
1055628
PHOENIX_CONTACT
Switching device combination
Distribution boards > Cable entry cabinet
Industry Solutions (IS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1055628 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626692685 |
| Weight per Piece (excluding packing) | 2,200.000 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 2 (per MPP tracker) |
| Number of outputs | 1 (per MPP tracker) |
| Number of supported MPP trackers | 2 |
Safety equipment
| Surge protective device | T2 |
|---|---|
| Protection level Up | ≤ 3.7 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
Cable entry
| Type of cable entry | Cable gland |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Sealing area string input | 3 mm ... 6.5 mm |
| Cable cross section output | 2.5 mm² ... 6 mm² |
| Sealing area output | 3 mm ... 6.5 mm |
| Cable cross section grounding | 16 mm² (2 x) |
| Sealing area grounding | 6 mm ... 12 mm (2x) |
General data
| Housing material | Polycarbonate |
|---|---|
| Material cover/door | Polycarbonate (transparent) |
| Degree of protection | IP65 |
| Protection class | II |
Classifications
