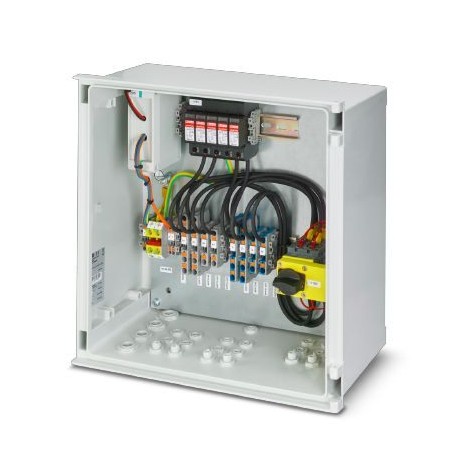

SOL-SC-2ST-0-DC-2MPPT-1300FS 1137059 PHOENIX CONTACT String combiner box for photovoltaic systems up to 1000..
SOL-SC-2ST-0-DC-2MPPT-1300FS
1137059
PHOENIX_CONTACT
String combiner box for photovoltaic systems up to 1000 V DC for connecting 2x 2 strings. With surge protection (type 1/2), DC fire service switch disconnector with remote access and push-in connection for the input and output sides.
String box for photovoltaic installations up to 1000 V DC for the connection of 2 x 2 strings. With surge protection (type 1/2), load disconnector for DC firefighters with remote access and push-in connection for the input and output side.
Photovoltaics, wind energy > Photovoltaic DC Stringbox
Industry Solutions (IS)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 2 |
| Current per string (max.) | 20 A (Imax) |
| Number of outputs | 1 |
| Number of supported MPP trackers | 2 |
| Switching capacity | 50 A (1000 V) |
| Rated operating current at DC-PV1 | 20 A |
Safety equipment
| Surge protective device | T1 / T2 |
|---|---|
| Protection level Up | ≤ 3.5 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
| Total discharge current Itotal(10/350) µs | 5 kA |
Cable entry
| Type of cable entry | Cable gland |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Sealing area string input | 3 mm ... 6.5 mm |
| Cable cross section output | 2.5 mm² ... 6 mm² |
| Sealing area output | 3 mm ... 6.5 mm |
| Cable cross section grounding | 16 mm² (2x) |
| Sealing area grounding | 6 mm ... 12 mm (2x) |
| Cable cross section emergency stop | 3x 0.14 mm² ... 2.5 mm² (230 V AC) |
| 2x 0.14 mm² ... 2.5 mm² (Remote indication contact, potential-free, max. 24 V DC) | |
| Sealing area emergency stop | 6 mm ... 12 mm |
General data
| Material cover/door | Polyester fiberglass reinforced |
|---|---|
| Degree of protection | IP65 |
| Protection class | I |
Dimensions
| Outer dimensions: width, height, depth | 400 mm x 400 mm x 200 mm (Housing dimensions) |
|---|
Classifications
eCl@ss
| eCl@ss 10.0.1 | 27142422 |
|---|---|
| eCl@ss 5.1 | 27371890 |
| eCl@ss 7.0 | 27142422 |
| eCl@ss 8.0 | 27142422 |
| eCl@ss 9.0 | 27142422 |
