View larger

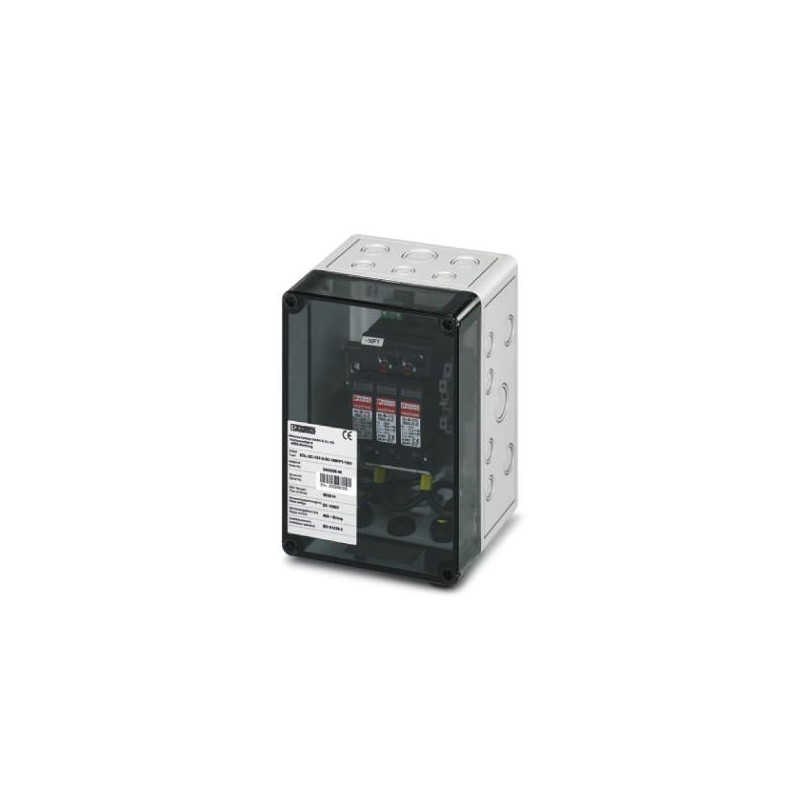

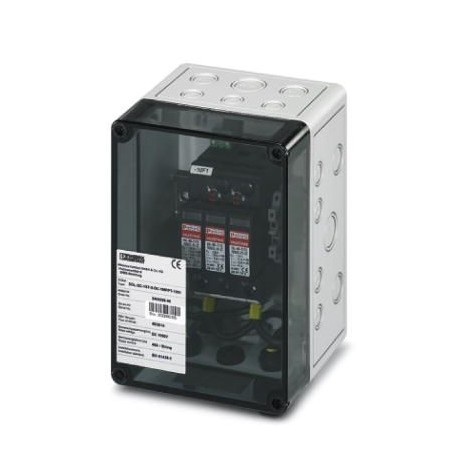

SOL-SC-1ST-0-DC-1MPPT-2001 2403338 PHOENIX CONTACT String combiner box (SCB)
SOL-SC-1ST-0-DC-1MPPT-2001
2403338
PHOENIX_CONTACT
String combiner box (SCB)
Industry Solutions (IS)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 2403338 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626370521 |
| Weight per Piece (excluding packing) | 1,100.000 g |
| Custom tariff number | 85363030 |
| Country of origin | DE (Germany) |
System parameter
| System voltage | 1000 V DC (Umax) |
|---|---|
| Number of string inputs | 1 |
| Current per string (max.) | 40 A (Imax) |
| Number of outputs | 1 (per MPP tracker) |
| Number of supported MPP trackers | 1 |
Safety equipment
| Surge protective device | T2 |
|---|---|
| Protection level Up | ≤ 3.7 kV |
| Total discharge current Itotal(8/20) µs | 40 kA |
Cable entry
| Type of cable entry | SUNCLIX |
|---|---|
| Cable cross section string input | 2.5 mm² ... 6 mm² |
| Cable cross section output | 2.5 mm² ... 6 mm² |
| Cable cross section grounding | 16 mm² (2x) |
| Sealing area grounding | 6 mm ... 12 mm (2x) |
General data
| Material cover/door | Polycarbonate (transparent) |
|---|---|
| Degree of protection | IP65 |
| Protection class | II |
