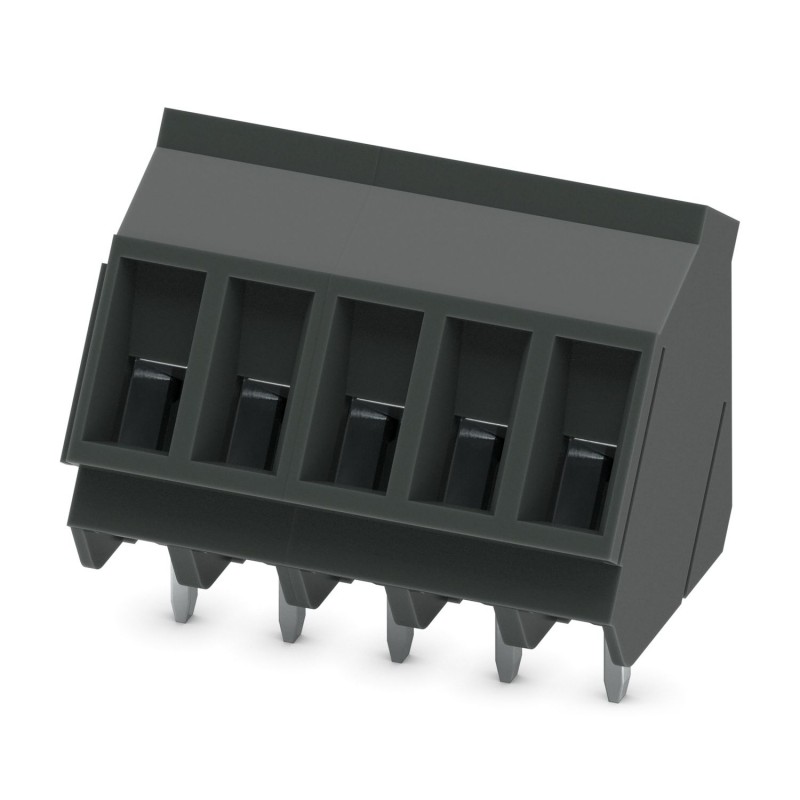

SMKDS 3/ 5 BK 1016014 PHOENIX CONTACT Terminal for printed circuit board, rated voltage: 400 V, pitch: 5 mm,..
SMKDS 3/ 5 BK
1016014
PHOENIX_CONTACT
50
Product on demand only, returns will not be accepted.
Terminal for printed circuit board, rated voltage: 400 V, pitch: 5 mm, number of poles: 5, type of connection: Connection by screw with capsule-traction, assembly: wave Soldering, color: black
Terminal block for printed circuit board, nominal current: 24 A, nominal voltage (III/2): 400 V, nominal section: 2.5 mm², number of potentials: 5, number of rows: 1, number of poles per row: 5, family of articles: SMKDS 3, pitch: 5 mm, type of connection: Screw connection with traction capsule, mounting: Wave soldering, Connection direction driver/printed circuit board: 55 °, color: black, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, number of solder pins per potential: 1, packaging type: boxed
PCB terminal, nominal current: 24 A, reference voltage (III/2): 400 V, nominal cross-section: 2.5 mm2, number of potentials: 5, number of rows: 1, number of poles per row: 5, article range: SMKDS 3, pitch: 5 mm, connection type: Screwed connection with ring, screw driving surface: L Longitudinal slot, mounting: Wave soldering, Conductor/PCB Plugging Direction: 55°, Colour: Black, Pin Layout: Linear Pinout, Pin Length [P]: 4.5 mm, Number of Pins Per Potential: 1, Packaging Type: Packed in a Box
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Printed circuit board terminal |
| Product range | SMKDS 3 |
| Product Line | COMBICON Terminals M |
| Number of poles | 5 |
| Steps | 5 mm |
| Number of connections | 5 |
| Number of rows | 1 |
| Number of potentials | 5 |
| Pinout plot | Linear pinout |
| Number of pins per potential | 1 |
| Data Management Status | |
| Revision of the article | 00 |
| Rated Current IN | 24 A |
| Rated voltage UN | 400 V |
| Reference voltage (III/3) | 250 V |
| Rated Shock Resistance Voltage (III/3) | 4 kV |
| Rated Voltage (III/2) | 400 V |
| Rated Shock Withstand Voltage (III/2) | 4 kV |
| Reference voltage (II/2) | 630 V |
| Rated Shock Withstand Voltage (II/2) | 4 kV |
| Connection technology | |
| Type | Side-by-side PCB terminal block |
| Nominal cross-section | 2.5 mm² |
| Conductor connection | |
| Connection type | Screwed connection with ring |
| Rigid conductor cross-section | 0.2 mm² ... 4 mm² |
| Soft conductor section | 0.2 mm² ... 2.5 mm² |
| Conductive section. AWG | 24 ... 12 |
| Soft conductor section with end cap, without plastic bushing | 0.25 mm² ... 2.5 mm² |
| Soft conductor section with plastic end cap and socket | 0.25 mm² ... 2.5 mm² |
| 2 rigid conductors of the same cross-section | 0.2 mm² ... 1.5 mm² |
| 2 flexible conductors of the same cross-section | 0.2 mm² ... 1.5 mm² |
| 2 conductors of the same cross-section, flexible with plastic sleeveless end cap | 0.25 mm² ... 0.75 mm² |
| 2 flexible conductors of the same cross-section with TWIN bit and plastic socket | 0.5 mm² ... 1.5 mm² |
| Stripping length | 8 mm |
| Screw head drive shape | Longitudinal Slot (L) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Mounting Type | Wave Welding |
| Pinout plot | Linear pinout |
| Material indication - contact | |
| Note | WEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface quality | Tinned by hot dipping |
| Metal surface connection point (top layer) | Tin (4 - 8 μm Sn) |
| Metal surface, welding area (top layer) | Tin (4 - 8 μm Sn) |
| Material indication - housing | |
| Colors (Cases) | Black (9005) |
| Insulating material | PA |
| Insulation Group | I |
| CRI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| GWFI glow wire flammability class according to EN 60695-2-12 | 850 |
| GWIT glow wire ignition temperature according to EN 60695-2-13 | 775 |
| Ball pressure test temperature according to EN 60695-10-2 | 125 °C |
| Application Note | For the safe connection of the conductors, always observe a defined torque. Especially for two- or three-pole PCB terminal blocks, the welded individual spike is not able to withstand this for each contact point. For this reason, terminal blocks must be maintained when connecting conductors (manually fixed and housing maintained). |
| Dimensioned drawing |  |
| Steps | 5 mm |
| Width [w] | 25 mm |
| Height [h] | 22.37 mm |
| Length [l] | 15.68 mm |
| Mounting height | 17.87 mm |
| Welding pin length [P] | 4.5 mm |
| Dimensions of the pins | 0.9 x 0.9 mm |
| PCB design | |
| Drilling Diameter | 1.3 mm |
| Air Distances and Trailing Lines | |
| Control Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | SIC 600 |
| Rated Insulation Voltage (III/3) | 250 V |
| Rated Shock Resistance Voltage (III/3) | 4 kV |
| minimum value of distance in air - non-homogeneous field (III/3) | 3 mm |
| minimum creepage value (III/3) | 3.2 mm |
| Rated Insulation Voltage (III/2) | 400 V |
| Rated Shock Voltage (III/2) | 4 kV |
| minimum value of distance in air - non-homogeneous field (III/2) | 3 mm |
| minimum creepage value (III/2) | 3 mm |
| Rated Insulation Voltage (II/2) | 630 V |
| Rated Shock Withstand Voltage (II/2) | 4 kV |
| minimum value of distance in air - non-homogeneous field (II/2) | 3 mm |
| minimum creepage value (II/2) | 3.2 mm |
| Environmental conditions | |
| Ambient Temperature (Operating) | -40 °C ... 100 °C (Depending on current/derating capacitance curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Type of packaging | packed in a carton |
| Feature Name | Feature Value |
|---|---|
| Height (EF000040) | 22.37 mm |
| Number of electrical connections (EF008252) | 5 |
| Number of levels (EF002659) | 1 |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 24 A |
| Rated voltage (EF000228) | 400 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connection type conductor (EF006821) | Screw connection |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 0.2 mm² |
| Connection type PCB (EF006822) | Soldering connection |
| Material connection surface (EF006826) | Tin |
| Diameter connection pin (EF006823) | 1.3 mm |
| Length pin (EF006825) | 4.5 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of banding (EF007011) | Carton (for SMD) |
