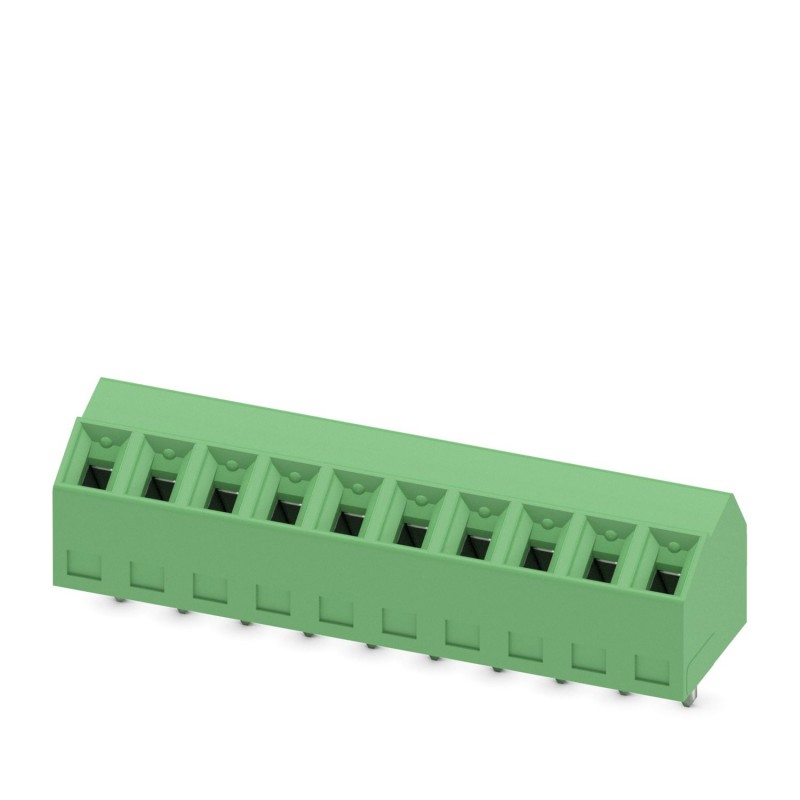

SMKDS 1/ 3-3,81 BD: V+,S,G 1012766 PHOENIX CONTACT Terminal for printed circuit board, pitch: 3,81 mm, numbe..
SMKDS 1/ 3-3,81 BD: V+,S,G
1012766
PHOENIX_CONTACT
250
Product on demand only, returns will not be accepted.
Terminal for printed circuit board, pitch: 3,81 mm, number of poles: 3, color: green
Terminal block for printed circuit board, nominal current: 10 A, dimensioning voltage (III/2): 200 V, nominal cross-section: 1 mm², number of rows: 1, number of poles per row: 3, article family: SMKDS 1, pitch: 3.81 mm, connection type: Screw connection with traction capsule, mounting: Wave soldering, conductor connection direction/printed circuit board: 35°, color: green, number of solder pins per potential: 1
Printed circuit board terminal, rated current: 10 A, rated voltage (III/2): 200 V, rated cross-section: 1 mm2, number of rows: 1, number of poles per row: 3, item family: SMKDS 1, pitch: 3.81 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, Mounting: Wave soldering, conductor/PCB connection direction: 35°, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5mm, number of solder pins per potential: 1, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲| Product Type | Printed Circuit Board Terminal |
| Product Family | SMKDS 1 |
| Product Line | COMBICON Terminals S |
| Number of poles | 3 |
| Step | 3.81 mm |
| Number of rows | 1 |
| Pin Design | Linear Pin Arrangement |
| Number of Solder Pins Per Potential | 1 |
| Data Maintenance Status | |
| Article Review | 02 |
| Nominal Current IN | 10 A |
| Nominal voltage UN | 200 V |
| Sizing voltage (III/3) | 160 V |
| Dimensioning transient voltage (III/3) | 2.5 kV |
| Dimensioning voltage (III/2) | 200 V |
| Dimensioning Transient Voltage (III/2) | 2.5 kV |
| Nominal voltage (II/2) | 400 V |
| Dimensioning transient voltage (II/2) | 2.5 kV |
| Connection technology | |
| Construction | Terminal block for card |
| Nominal Section | 1 mm² |
| Connecting Conductors | |
| Connection type | Screw connection with traction capsule |
| Rigid conductor section | 0.14 mm² ... 1.5 mm² |
| Flexible conductor section | 0.14 mm² ... 1 mm² |
| AWG Conductor Section | 26 ... 16 |
| Flexible conductor section with toe cap, without plastic sleeve | 0.25 mm² ... 0.5 mm² |
| Flexible conductor section with toe cap, with plastic sleeve | 0.25 mm² ... 0.5 mm² |
| 2 conductors with the same cross-section, rigid | 0.14 mm² ... 0.5 mm² |
| 2 conductors with the same cross-section, flexible | 0.14 mm² ... 0.2 mm² |
| Peel Length | 5 mm |
| Drive shape: screw head | Longitudinal groove (L) |
| Tightening torque | 0.22 Nm ... 0.25 Nm |
| Type of mounting | Wave soldering |
| Pin Design | Linear Pin Arrangement |
| Material data - contact | |
| Observation | WEEE/RoHS compliant, filament-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact material | Cu Alloy |
| Surface Characteristics | Galvanically tinned |
| Metal surface of the terminal point (top layer) | Tin (5 - 7 μm Sn) |
| Metal surface of the terminal point (interlayer) | Nickel (2 - 3 μm Ni) |
| Metal surface weld area (top layer) | Tin (5 - 7 μm Sn) |
| Metal Surface Welding Area (Middle Layer) | Nickel (2 - 3 μm Ni) |
| Material data - housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Flammability number of GWFI incandescent filaments according to EN 60695-2-12 | 850 |
| Ignition temperature of incandescent filaments GWIT according to EN 60695-2-13 | 775 |
| Ball hardness test temperature according to EN 60695-10-2 | 125 °C |
| A note on the application | For the safe connection of conductors, a defined torque must always be maintained. In particular, in two- and three-pole PCB terminals, the individual solder pin cannot control it at every point of contact. The terminal blocks therefore require assistance when connecting the conductors (manual fixing, bracketing in the housing). |
| Dimension Scheme |  |
| Step | 3.81 mm |
| Width [w] | 11.42 mm |
| Height [h] | 13 mm |
| Length [l] | 10 mm |
| Overall Height | 9.5 mm |
| Weld Pin Length [P] | 3.5 mm |
| Temple Dimensions | 0.5 x 0.9 mm |
| Printed circuit board design | |
| Hole diameter | 1.1 mm |
| Creepage Lines & Air Isolation Distances | |
| Test Specification | DIN EN 60947-1 (VDE 0660-100):2015-09 |
| Insulating material group | I |
| Resistance to leakage currents (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Sizing Insulation Voltage (III/3) | 160 V |
| Nominal transient voltage (III/3) | 2.5 kV |
| minimum value of air insulation distance - non-homogeneous field (III/3) | 1.5 mm |
| Minimum creepage line value (III/3) | 2 mm |
| Sizing Insulation Voltage (III/2) | 200 V |
| Nominal transient voltage (III/2) | 2.5 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (III/2) | 1.5 mm |
| Minimum creepage line value (III/2) | 1.5 mm |
| Sizing Insulation Voltage (II/2) | 400 V |
| Nominal transient voltage (II/2) | 2.5 kV |
| Minimum Value of Air Insulation Distance - Non-Homogeneous Field (II/2) | 1.5 mm |
| Minimum creepage line value (II/2) | 2 mm |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 100 °C (Based on current/derating load capacity curve) |
| Ambient Temperature (Storage/Transport) | -40 °C ... 70 °C |
| Relative humidity of the air (storage/transport) | 30 % ... 70 % |
| Ambient Temperature (Mounting) | -5 °C ... 100 °C |
| Type of packaging | Boxed Packaging |
