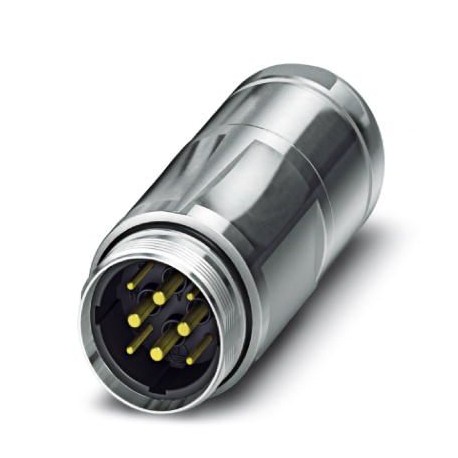

SM-7EP1N8A9L32S 1613431 PHOENIX CONTACT Coupler connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

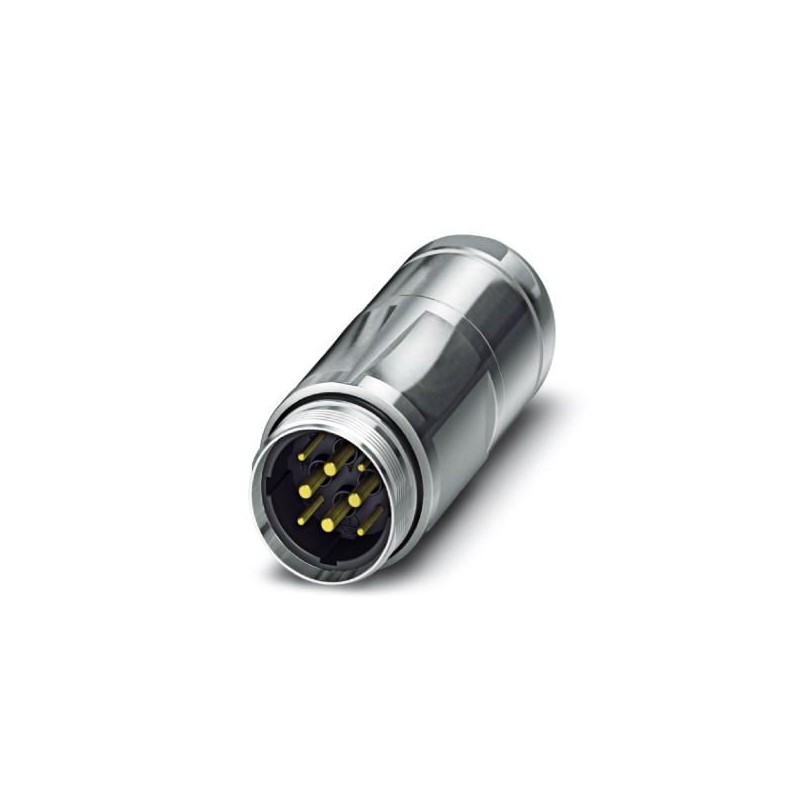

SM-7EP1N8A9L32S 1613431 PHOENIX CONTACT Coupler connector

SM-7EP1N8A9L32S

1613431

PHOENIX_CONTACT

Available Ship on today

New orders for this item will be processed from April 13

Coupler connector

More details


Field Device Connectors (FDC)

* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT

Total price: $133.41
Unit price: $133.41

Quantity Price
1+$133.41
3+$114.71
5+$109.23
7+$106.49
9+$104.82
*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

More info



Key Commercial Data

Orderkey1613431
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 165 (C-2-2017)
GTIN4046356400237
Weight per Piece (excluding packing)404.000 g
Custom tariff number85366990
Country of originDE (Germany)

General

NoteOrder information: Order crimp contacts 4 x Ø 2 mm, 4 x Ø 3.6 mm separately
Type of lockingfor standard and SPEEDCON interlock
CodingN
Contact connection methodCrimp connection
Type of contactsPin
Number of positions8
Contact diameter of power contacts3.6 mm
Nominal current per power contact at 25°C70 A
Contact diameter of signal contacts2 mm
Nominal current per signal contact at 25°C30 A
Conductor entry9 mm ... 14 mm
Pg housing screw connectionnone

Ambient conditions

Ambient temperature-40 °C ... 125 °C
Degree of protectionIP67

Material

Housing materialTurned parts: copper zinc alloy (CuZn), aluminum (Al), die-cast parts: zinc (GD-Zn)
Insulator materialPA 6.6
Gasket and O-ring materialFPM

Specifications according to DIN EN 61984:2001

Installation height max.3000 m
Nominal / operating voltage of power contacts630 V
Rated surge voltage of power contacts6 kV
Overvoltage category of power contactsIII
Degree of pollution of power contacts3
Nominal / operating voltage of signal contacts250 V
Rated surge voltage of signal contacts4 kV
Overvoltage category of signal contactsIII
Degree of pollution of signal contacts3

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
