SK U TR:UNGESTANZT 0806699 PHOENIX CONTACT Marker sheet
SK U TR:UNGESTANZT
0806699
PHOENIX_CONTACT
10

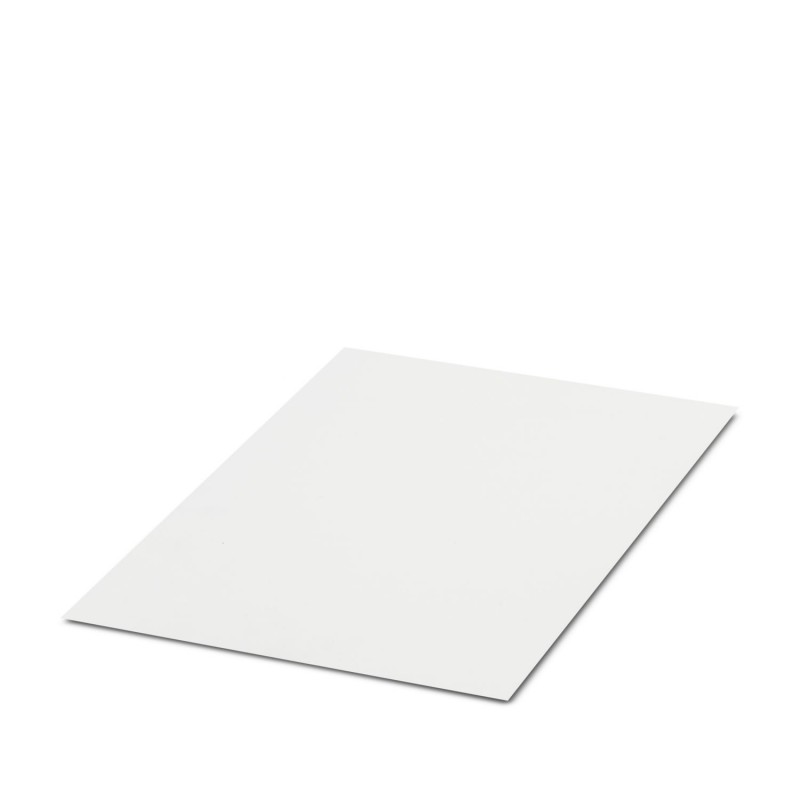

Marker sheet
Identification sheet, DIN A4, transparent, unlabelled, labelable with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems: without printing, mounting type: glued, for terminal width: 210 mm, useful surface: 297x210mm, Number of individual indexes: 1
Identification sheet, DIN A4, transparent, unlabelled, labelable with: PLOTMARK, CMS-P1-PLOTTER, Office printing systems: without printing, mounting type: glued, for terminal width: 210 mm, Number of individual indexes: 1, text field height: 210 mm, text field width: 297 mm
Terminal blocks > Labelling for terminal block
MS Material
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 0806699 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 346 (C-3-2017) |
| GTIN | 4017918138721 |
| Weight per Piece (excluding packing) | 14.800 g |
| Custom tariff number | 39199080 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 150 °C |
|---|---|
| Ambient temperature (assembly) | > 0 °C |
| Recommended storage conditions | 20-25 °C / 40-50 % relative humidity. |
General
| Note | Print image may vary depending on laser printer |
|---|---|
| Color | transparent |
| Type | adhesive |
| Flammability rating according to UL 94 | V0 |
| Material | Polyester |
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
| Adhesive | Acrylic |
| Printability | Office printing systems |
| Test for substances that would hinder coating with paint or varnish | VW PV 3.10.7:2005-02 |
| Result | Test passed |
| Test specification weathering-resistance | Following ISO 4892-2:2013-03 |
| Test duration | 96 h |
| Wipe resistance test result | Test passed |
| Salt spray test specification | DIN EN 60068-2-11:2000-02 |
| Test duration | 96 h |
| Salt spray testing result | Test passed |
| Alternating condensation climate with SO2 test specification | DIN 50018:2013-05 |
| Climate level | AHT 1.0 S |
| Cycles | 2 |
| Condensation test result | Test passed |
| Wipe resistance of test specification inscriptions | DIN EN 61010-1 (VDE 0411-1):2011-07 |
| Result | Test passed |
| Foil strength | 50 µm |
| Adhesive strength | 20 µm |
| Marking mounting type | adhesive |
Standards and Regulations
| Wipe resistance | DIN EN 61010-1 (VDE 0411-1) |
|---|---|
| Flammability rating according to UL 94 | V0 |
Classifications
eCl@ss 4.0 24190208 eCl@ss 4.1 24190208 eCl@ss 5.0 27149103 eCl@ss 5.1 27141100 eCl@ss 6.0 27141100 eCl@ss 7.0 27141137 eCl@ss 8.0 27141137 eCl@ss 9.0 27141137
UNSPSC 6.01 30211811 UNSPSC 7.0901 39121410 UNSPSC 11 39121410 UNSPSC 12.01 39121410 UNSPSC 13.2 39131505
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE MARKING SYSTEMS PHOENIX EN.pdf | 47 Mbytes |
|
