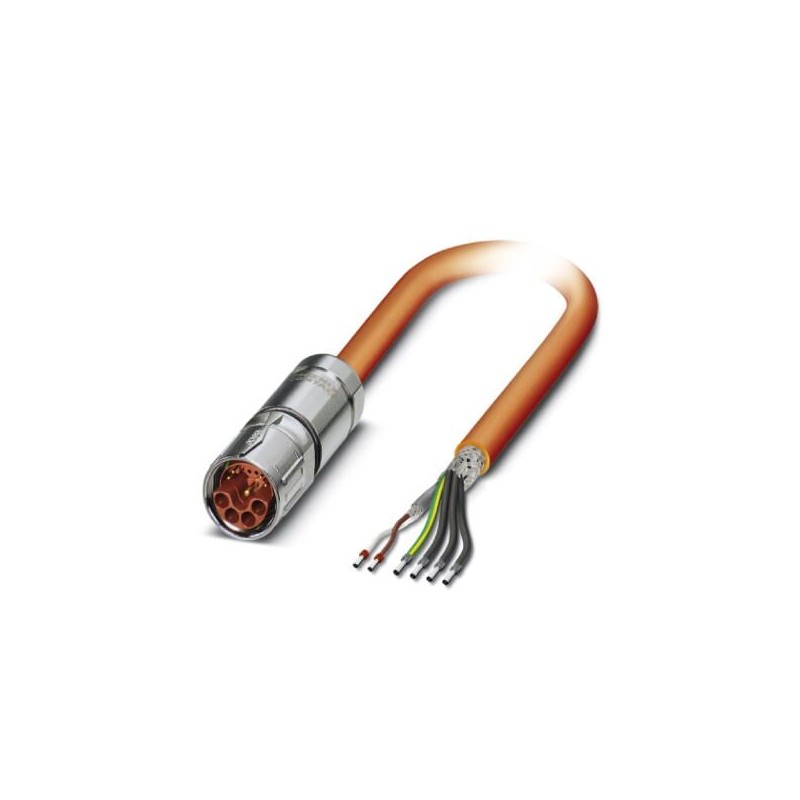

SHK-0478/30,00 1028619 PHOENIX CONTACT Assembled cable connectors SHK-0478/30,00 1028619
SHK-0478/30,00
1028619
PHOENIX_CONTACT
2
Assembled cable connectors - SHK-0478/30,00 - 1028619
Ready-made industrial connectors, length: 30 m, outer wrap colour: orange RAL 2003
Sensors > Sensor-actuator connector chassis
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Assembled cable connectors, length: 30 m, color of outer sheath: orange RAL 2003
Key Commercial Data
| Orderkey | 1028619 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626528946 |
| Custom tariff number | 85444290 |
| Conductor length | 30 m |
|---|
Connector specifications
| Type | gerade, konfektioniert |
|---|---|
| Thread type | M23 |
| Locking type | SPEEDCON locking |
| Degree of protection | IP67, when in locked state |
| Number of positions | 4+4+PE |
| Direction of rotation | Standard |
| Type of contact | Pin |
| Max. current | 30 A |
| Voltage | 630 V AC |
| Overvoltage category | III |
| Degree of pollution | 3 |
| Rated surge voltage | 6 kV |
Cable specifications
| Shielded | yes |
|---|---|
| Cable structure | (4 x 4 + (2 x 1.0)) |
| External cable diameter | ± 14.6 mm 0.6 mm |
| Outer sheath, material | PUR |
| Material wire insulation | PP (halogen-free) |
| External sheath, color | orange RAL 2003 |
| Single wire, color | Black 1, black 2, black 3, green-yellow Power wires + PE |
| white, brown Signal wires | |
| Nominal voltage, cable | 1000 V |
| Test voltage | 4 kV |
| Smallest bending radius, fixed installation | 58 mm |
| Smallest bending radius, movable installation | 109 mm |
| Acceleration | 10 m/s² |
| Ambient temperature for fixed installation | -40 °C ... 80 °C |
| Ambient temperature for flexible installation | -30 °C ... 60 °C |
| Special properties | Flexible cable conduit capable |
| Flame resistance | IEC 60332-1-2 |
| Halogen-free | yes, PUR sheath |
| Resistance to oil | yes, PUR sheath |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 8.0 | 27440102 |
|---|---|
| eCl@ss 9.0 | 27440103 |
ETIM
| ETIM 5.0 | EC002635 |
|---|---|
| ETIM 6.0 | EC002061 |
