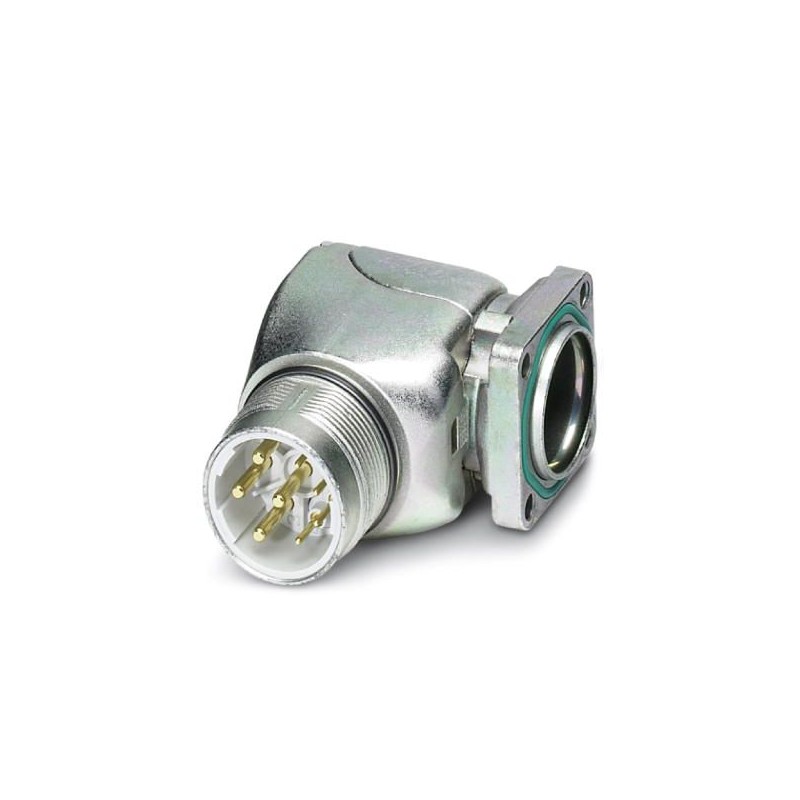

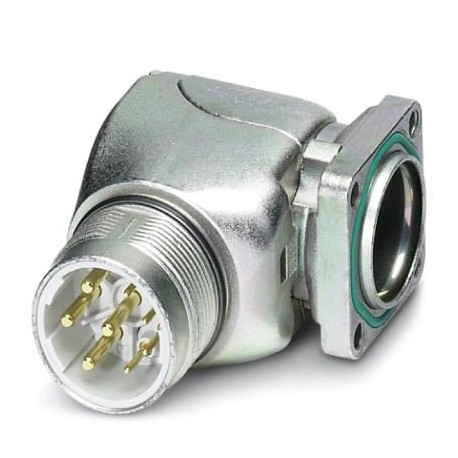

SF-7EP1N8AAC00 1607045 PHOENIX CONTACT Conect. enchuf. for apar. wall delant., Angled rotating, measure the ..
SF-7EP1N8AAC00
1607045
PHOENIX_CONTACT
Conect. enchuf. for apar. wall delant., Angled rotating, measure the flange increased, Lock screw, M23, No. of poles: 4+3+PE, Type of contact: Male, Connection set, o-Ring axial, 4x Ø3,2, shielded: yes, flange: 28 mm x 28 mm,Compatible with contraconectores with knurled nut SPEEDCON or M23 standard
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲Data commercial
| Key order | One million six hundred seven thousand forty five |
|---|---|
| Packing unit | 16 pcs |
| Key selling | ABRCBG - |
| EAN | Four trillion forty six billion three hundred fifty six million two hundred fifty three thousand seven hundred twenty seven |
| Unit weight (excluding packaging) | 123,360 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | (Germany) |
Overview
| Observation | Indication of order: The contacts set 4 x Ø 1 mm, 4 x Ø 2 mm, must be ordered separately |
|---|---|
| Lock system | Locking screw |
| Encoding | N |
| Connection type of contact | Connection set |
| Type of contacts | Pin |
| N. º poles | Eight |
| Diameter of contact of the power contacts | 2 mm |
| Rated current per contact power at 25ºC | 30 To |
| Diameter of contact of the signal contacts | 1 mm |
| Rated current per contact signal-to-25ºC | 9 To |
| Cable gland for enclosure Pg | without |
| Mounting type | 4x Ø 3,2 |
Material
| Material of the housing | Rotating parts: alloy copper-zinc (CuZn), die-cast parts pressed: zinc (GD-Zn) |
|---|---|
| Insulation Material | PA 6.6 |
| Material of the seal ring and o-ring | FPM |
Data according to DIN en 61984:2001
| Height max. mounting | 3000 m |
|---|---|
| Rated voltage/of Contacts service power | 630 V |
| Rated voltage transient power Contacts | 6 kV |
| Category of surge power Contacts | III |
| Degree of dirt power Contacts | Three |
| Rated voltage/of Contacts service signals | 250 V |
| Rated voltage transient signal Contacts | 4 kV |
| Category surge signal Contacts | III |
| Degree of dirt signal Contacts | Three |
Environmental Product Compliance
| China RoHS | Space of time for the intended use (FEUP): 50 years |
|---|---|
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss 4.0272607xxeCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred oneeCl@ss 5.0Twenty seven million one hundred forty three thousand four hundred twenty foureCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundredeCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundredeCl@ss 7.0Twenty seven million four hundred forty thousand one hundred twoeCl@ss 8.0Twenty seven million four hundred forty thousand one hundred twoeCl@ss 9.0Twenty seven million four hundred forty thousand one hundred three
UNSPSC 6.01Forty three million one hundred seventy two thousand fifteenUNSPSC 7.0901Forty three million two hundred one thousand four hundred fourUNSPSC 11Forty three million one hundred seventy two thousand fifteenUNSPSC 12.01Forty three million two hundred one thousand four hundred fourUNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred thirteen
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
