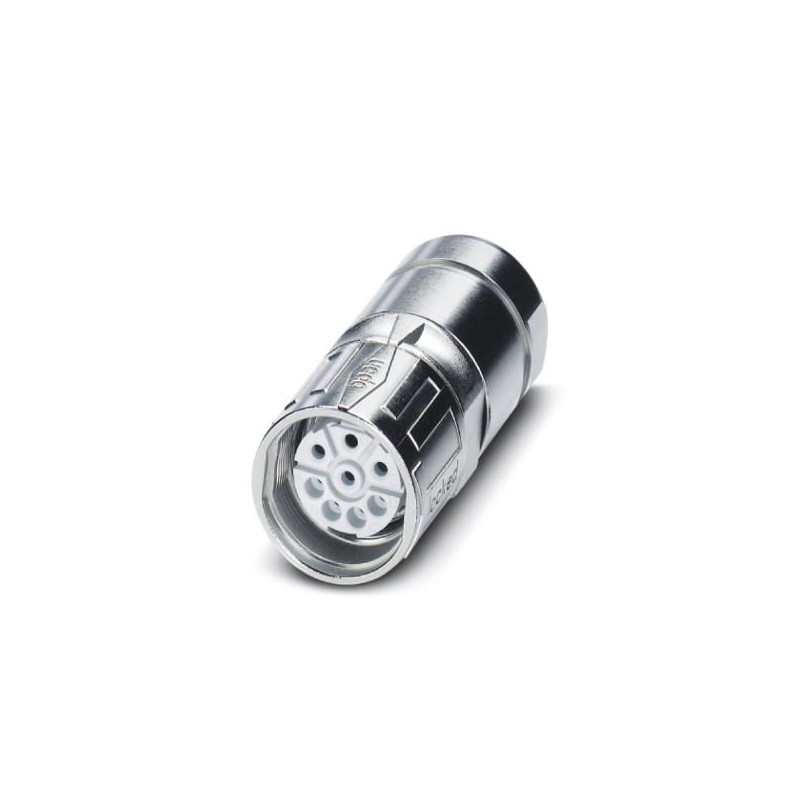

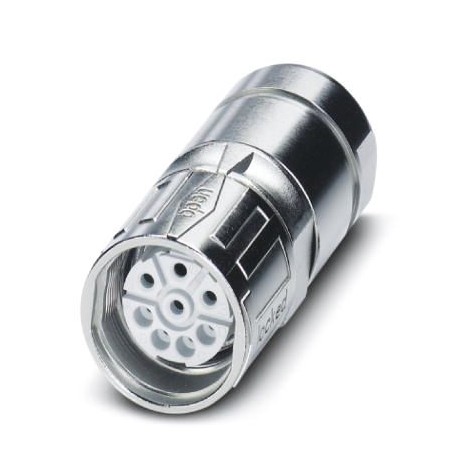

SF-5ES1N8A80A5S 1627030 PHOENIX CONTACT Cable connector
SF-5ES1N8A80A5S
1627030
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
Cable connector
Plug connector. for cables, Short straight, SPEEDCON lock, M23, number of poles: 5+PE, contact type: Female, shielded: yes, cable diameter range: 5.5 mm ... 8.5 mm, connection type: Crimped connection, series: SF
Connectors > Circular connector for field assembly (industrial connector)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1627030 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4055626289700 |
| Weight per Piece (excluding packing) | 120.700 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Note | Order information: Order crimp contacts 6 x Ø 2 mm separately |
|---|---|
| Type of locking | SPEEDCON locking |
| Coding | N |
| Contact connection method | Crimp connection |
| Type of contacts | Socket |
| Nominal current per power contact at 25°C | 30 A |
| Contact diameter of signal contacts | 2 mm |
| Conductor entry | 5.5 mm ... 8.5 mm |
| Pg housing screw connection | none |
Specifications according to DIN EN 61984:2001
| Installation height max. | 3000 m |
|---|---|
| Rated surge voltage of power contacts | 6 kV |
| Overvoltage category of power contacts | III |
| Degree of pollution of power contacts | 3 |
| Rated surge voltage of signal contacts | 6 kV |
| Overvoltage category of signal contacts | III |
| Degree of pollution of signal contacts | 3 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127260700eCl@ss 6.027260700eCl@ss 7.027440102eCl@ss 8.027440102eCl@ss 9.027440103
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Other |
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Ambient temperature (EF002386) | -40 °C |
| Type of electric connection (EF003961) | Crimp connection |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | Yes |
| With status indication (EF001602) | No |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
