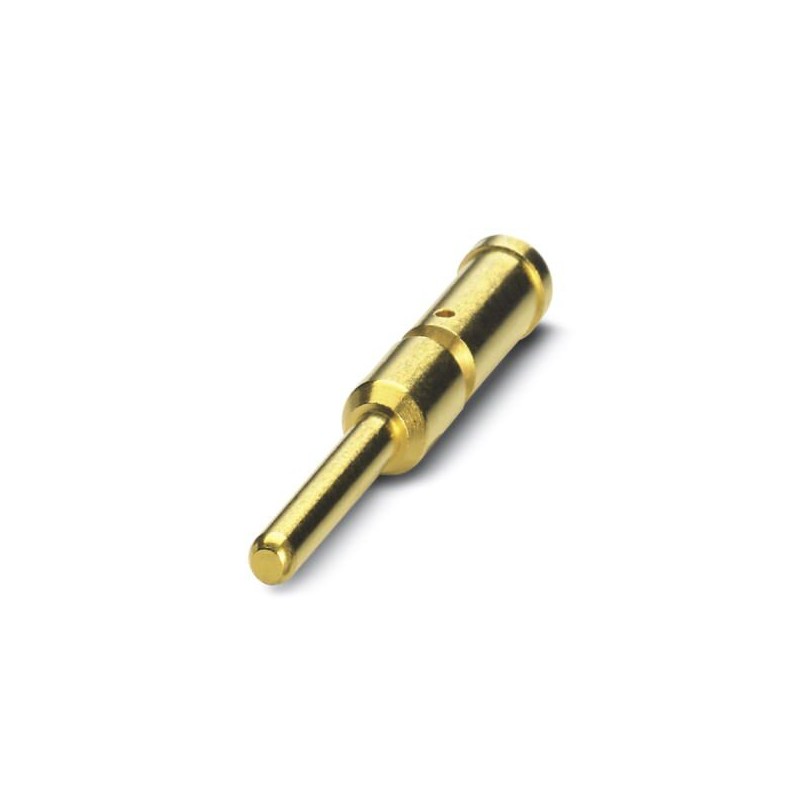

SF-20KP013 1050210 PHOENIX CONTACT Crimp contact, turned, contact diameter: 2 mm, crimp range: 2.5 mm² ... 4..
SF-20KP013
1050210
PHOENIX_CONTACT
50
Crimp contact, turned, contact diameter: 2 mm, crimp range: 2.5 mm² ... 4 mm²
Crimp contact, Tap, machined, Single contact, contact diameter: 2 mm, crimping range: 2.5 mm² ... 4 mm², Alternative product according to RoHS II without exception 6c (Pb< 0.1%) Item code: 1238180
Connectors > Contact for industrial connectors
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲Key Commercial Data
| Orderkey | 1050210 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Catalog page | Page 148 (C-2-2019) |
| GTIN | 4055626743585 |
| Weight per Piece (excluding packing) | 0.800 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Insertion/withdrawal cycles mechanical | 100 |
|---|---|
| Contact connection method | Crimp connection |
| Type of contacts | Pin |
| Contact diameter of power contacts | 2 mm |
| Litz wire cross section of power contacts min. | 2.5 mm² |
| Litz wire cross section of power contacts max. | 4 mm² |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 27261200 |
|---|---|
| eCl@ss 6.0 | 27261200 |
| eCl@ss 7.0 | 27440204 |
| eCl@ss 8.0 | 27440204 |
| eCl@ss 9.0 | 27440204 |
| Feature Name | Feature Value |
|---|---|
| Contact type (EF001587) | Pin |
| Type of electric connection (EF003961) | Crimp connection |
| Diameter plug-in contact (EF007320) | 2 mm |
| Material contact (EF007544) | Other |
| Material of contact surface (EF004020) | Other |
| Min. number of insertion cycles (EF012212) | 100 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX CONNECTORS EN.pdf | 68 Mbytes |
|
