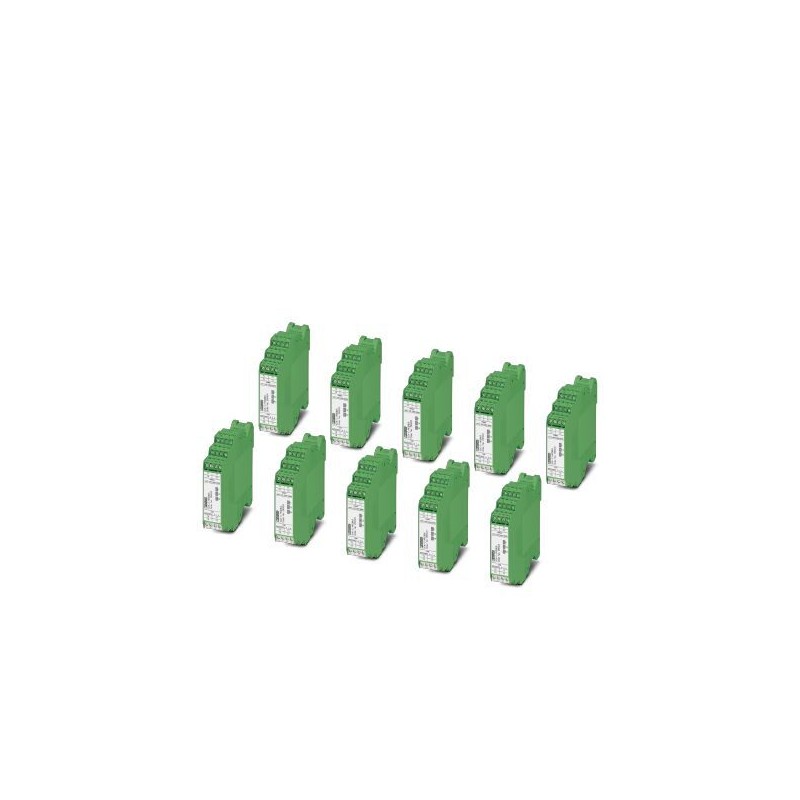

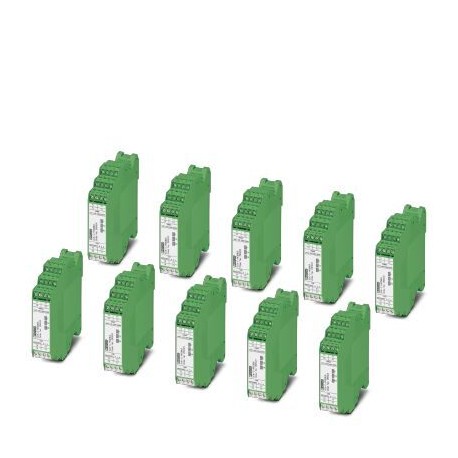

SCK-C-MODBUS-10PCS 1084335 PHOENIX CONTACT SCK communication module for acquiring up to 8 x SCK measuring mo..
SCK-C-MODBUS-10PCS
1084335
PHOENIX_CONTACT
SCK communication module for acquiring up to 8 x SCK measuring modules, RS-485 Modbus/RTU output
PLC's > Fieldbus, decentr. periphery - communication module
INTERFACE Components (IF)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Best sellers
▲More info
▲
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | ≤ 2000 m |
| Permissible humidity (operation) | ≤ 95 % (non-condensing) |
| Degree of protection | IP20 |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
Power supply
| Nominal supply voltage | 24 V DC -10 % ... +25 % |
|---|---|
| Max. current consumption | 800 mA |
| Own current consumption | 22 mA (typical) |
| 45 mA (maximum) | |
| Power consumption | 580 mW (24 V DC) |
Connection data
| Connection method | Screw connection |
|---|---|
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Torque | 0.5 Nm ... 0.6 Nm |
General
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 When being exposed to interference, there may be minimal deviations. |
| Mounting position | any |
| Assembly instructions | Horizontal or vertical |
| Conformance | CE-compliant |
| UL, USA | 1741 Recognized |
| UL, USA/Canada | 508 Listed |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC directive 2004/108/EC and for low-voltage directive 2006/95/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Standards/regulations | EN 61010-1 |
| Pollution degree | 2 |
| Conformance | CE-compliant |
| UL, USA | 1741 Recognized |
| UL, USA/Canada | 508 Listed |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Articles in set
PV string monitoring module SCK-C-MODBUS 2901674
SCK communication module for acquiring up to 8 x SCK measuring modules, RS-485 Modbus/RTU output
Classifications
| Feature Name | Feature Value |
|---|---|
| Supporting protocol for EtherCAT (EF017564) | No |
| Supporting protocol for EtherNet/IP (EF007521) | No |
| Radio standard Bluetooth (EF007178) | No |
| Radio standard WLAN 802.11 (EF007179) | No |
| Radio standard GPRS (EF008523) | No |
| IO link master (EF007298) | No |
| System accessory (EF004118) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| With potential separation (EF003272) | No |
| Fieldbus connection over separate bus coupler possible (EF004002) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| Wall mounting/direct mounting (EF007020) | No |
| Front built-in possible (EF007016) | No |
| Rack-assembly possible (EF007018) | No |
| Suitable for safety functions (EF001597) | No |
| Performance level according to EN ISO 13849-1 (EF007399) | None |
| Appendant operation agent (Ex ia) (EF004141) | No |
| Appendant operation agent (Ex ib) (EF004142) | No |
| Explosion safety category for gas (EF003997) | None |
| Explosion safety category for dust (EF003998) | None |
| Width (EF000008) | 22.88 mm |
| Height (EF000040) | 102 mm |
| Depth (EF000049) | 105.4 mm |
