SB-8EPCD8A8L32SX
1244943
PHOENIX_CONTACT
1

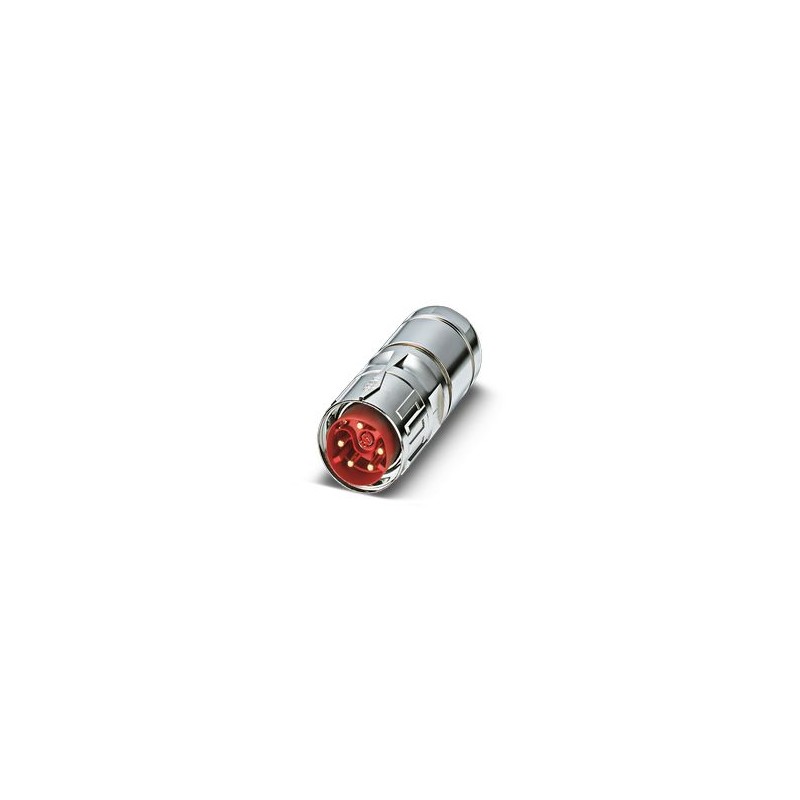

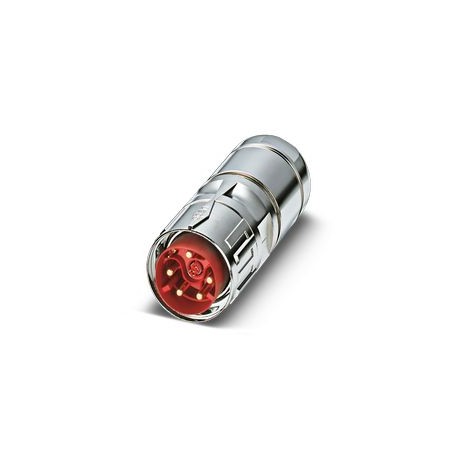

M40, Cable connector, SB, long straight, shielded: yes, SPEEDCON, No. of poles: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, contact type: Male, Crimped connection, cable diameter range: 9 mm ... 14 mm, encoding:CAT5, coding 2, Item is lead-free according to RoHS II without exception 6c (Pb< 0.1%)
M40, Cable connector, series: SB, straight long, shielded: yes, SPEEDCON, No. of pos.: 4+4+4+PE / 3+N+PE, Direction of rotation: Standard, contact connection type: Pin, Crimp connection, cable diameter range: 9 mm ... 14 mm, coding: CAT5, coding 2, Item is lead-free in accordance with RoHS II without Exemption 6c (Pb <0.1%)
Home > PHOENIX CONTACT
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
General | Crimp contacts, 4 x Ø 0.8 mm, 4 x Ø 1 mm, 5 x Ø 3.6 mm, order separately |
Safety note | |
Safety note | WARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property. |
• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. | |
• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
• The products are suitable for applications in plant, controller, and electrical device engineering. | |
• When operating the connectors in outdoor applications, they must be separately protected against environmental influences. | |
• Assembled products may not be manipulated or improperly opened. | |
• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products). | |
• When using the product in direct connection with third-party manufacturers, the user is responsible. | |
• For operating voltages > 50 V AC, conductive connector housings must be grounded | |
• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector | |
• Observe the corresponding technical data. You will find information: o On the product o On the packing label o In the supplied documentation o Online at phoenixcontact.com/products under the product | |
• Only use tools recommended by Phoenix Contact | |
• The installation notes/Design In documents online on the download page at phoenixcontact.com/products must be observed for this product. | |
• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products | |
• Operate the connector only when it is fully plugged in and interlocked. | |
• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards. | |
• Observe the minimum bending radius of the cable. Lay the cable without twisting it. | |
• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12). |
Product type | Circular connector (cable-side) |
Insulating body | |
Data rate | 100 Mbps |
Coding | CAT5, coding 2 |
Connection method | Crimp connection |
Contact switching type | Pin |
Application | Hybrid |
Number of positions | 13 |
Direction of rotation | Standard |
Connection profile | 4+4+4+PE / 3+N+PE |
Contact diameterPower contacts | 3.6 mm |
Litz wire cross-sectionPower contactsmin. | 2.5 mm² |
Litz wire cross-sectionPower contactsmax. | 16 mm² |
Rated currentPower contacts | 70 A |
Note | for max. connection cross section |
Rated voltage | 630 V AC |
Rated surge voltage | 6 kV |
Overvoltage category | III |
Degree of pollution | 3 |
Rated voltage (II/3) power contact | 850 V DC |
Rated voltage (III/3) power contact | 630 V AC |
Contact diameterSignal contacts | 1 mm |
Litz wire cross-sectionSignal contactsmin. | 0.06 mm² |
Litz wire cross-sectionSignal contactsmax. | 1.5 mm² |
Nominal current per signal contact | 8 A |
Note | for max. connection cross section |
Rated surge voltage | 6 kV |
Rated voltage (III/3) signal contact | 500 V |
Contact diameter Data contacts | 0.8 mm |
Litz wire cross-section Data contacts min. | 0.08 mm² |
Litz wire cross-section Data contacts max. | 0.5 mm² |
Rated current per data contact at 25°C | 3.6 A |
Note | for max. connection cross section |
Rated surge voltage | 1.5 kV |
Installation height | 2000 m |
Housing | |
Housing material | Turned parts: copper zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
Type of locking | SPEEDCON |
Pg screw connection | none |
Degree of protection (plugged in) | IP68/IP69K |
Thread type | M40 |
Seal | |
External cable diameter | 9 mm ... 14 mm |
Seal material | FKM |
Ambient conditions | |
Ambient temperature (operation) | -40 °C ... 115 °C (see derating curve) |
