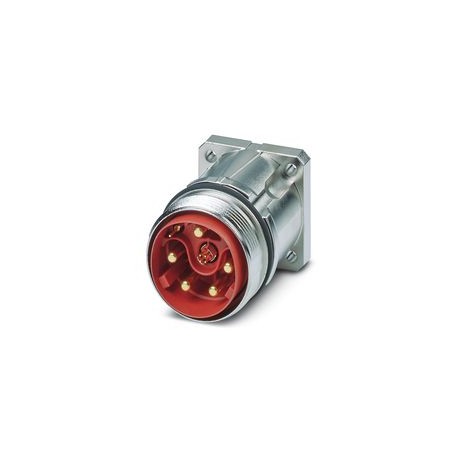

SB-8EP6A8AWT00S 1314981 PHOENIX CONTACT M40, Conect. plug. for apar. wall lamp, series: SB, straight, shield..
SB-8EP6A8AWT00S
1314981
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
M40, Conect. plug. for apar. wall lamp, series: SB, straight, shielded: yes, for standard and SPEEDCON locking, No. of poles: 6+4+4+PE, 6-pole data element, Direction of rotation: Standard, contact connection type: Male, Axial O-ring, 4x Ø4.2, flange size: 40 mm x 40 mm, coding: Coding 1
Connectors > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General | Order the crimped contacts separately |
| Safety Indication | |
| Safety Notes | WARNING: Connectors should not be plugged in or unplugged under load. Failure to comply and improper use can result in property damage and personal injury. |
| • WARNING: Serve only products in perfect condition. Products should be checked regularly for damage. Remove defective products immediately. Replace damaged products. It is not possible to repair them. | |
| • WARNING: only qualified personnel specialized in electrical engineering can install and use the product, always taking into account the following safety indications. Specialized personnel must be familiar with the fundamentals of electrical engineering. You must be able to identify and avoid hazards. The corresponding symbol on the packaging indicates that personnel specialized in electrical engineering are required for installation and operation. | |
| • The products are suitable for the areas of application of the construction of electrical equipment, control systems and systems. | |
| • If connectors are used outdoors, they must be protected in particular from environmental influences. | |
| • Ready-made products may not be tampered with or opened in an unauthorized manner. | |
| • Use only mating connectors that comply with the technical data of the specified standards (e.g. those indicated on the product accessories on the website on phoenixcontact.com/products). | |
| • The user is responsible for using the product directly in conjunction with products from other manufacturers. | |
| • With operating voltages > 50 V AC, electrically conductive connector housings must be grounded | |
| • When grouping several electrical circuits together in one cable and/or connector, VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 apply | |
| • Please note the relevant technical data. You will find the data: or in the product or on the packaging label or in the documentation provided or on the website phoenixcontact.com/products by selecting the product | |
| • Only use the tool recommended by Phoenix Contact | |
| • Please note the Design In assembly/documentation instructions in the download area of the product website on phoenixcontact.com/products. | |
| • Do not close plugged-in connectors with a cap. You will find the right accessory in the accessories section of the article, under phoenixcontact.com/products | |
| • Use connectors only fully plugged in and locked. | |
| • When laying the cable, check that the tensile load applied to the connectors does not exceed the limits set out in the standards. | |
| • Respect the minimum bending radius of the cable. Lay the cord without forcing it. | |
| • The connector heats up during normal operation. Depending on the ambient conditions, the surface of the connector may also heat up. In this case, the user will be responsible for affixing the warning indications (e.g. DIN EN ISO 13732-1:2008-12). | |
| Product Type | Circular connectors (equipment side) |
| Insulating body | |
| Data Transmission Rate | 100 MBit/s |
| Codification | Coding 1 |
| Contact Switching Type | male |
| application | Hybrid |
| Number of poles | 15 |
| Direction of rotation | Standard |
| Plug Face | 6+4+4+PE, 6-pole data element |
| Contact DiameterPower Contacts | 3.6 mm |
| Braided yarn sectionPower Contactsmin. | 2.5 mm² |
| Braided yarn sectionPower ContactsMax. | 16 mm² |
| Rated CurrentPower Contacts | 70 A |
| Observation | at an ambient temperature of 15 °C, see the derating curve |
| Nominal voltage | 630 V AC |
| Dimensioning Transient Voltage | 6 kV |
| Surge Category | Iii |
| Degree of pollution | 3 |
| Rated voltage (II/3) power contact | 850 V DC |
| Rated voltage (III/3) power contact | 630 V AC |
| Contact DiameterSignal Contacts | 1 mm |
| Braided yarn sectionSignal Contactsmin. | 0.06 mm² |
| Braided yarn sectionSignal ContactsMax. | 1.5 mm² |
| Nominal current per signal contact | 8 A |
| Observation | In the case of connection cross-section max. |
| Nominal voltage Warning contact | 500 V |
| Dimensioning Transient Voltage | 6 kV |
| Rated voltage (III/3) warning contact | 500 V |
| Contact Diameter Data Contacts | 0.6 mm |
| Braided Yarn Section Data Contacts Min. | 0.08 mm² |
| Braided Wire Section Data Contacts Max. | 0.25 mm² |
| Rated current per data contact at 25°C | 2 A |
| Observation | In the case of connection cross-section max. |
| Nominal Voltage Data Contacts | 50 V |
| Dimensioning Transient Voltage | 1.5 kV |
| Mounting Height | 2000 m |
| Housing | |
| Shell material | Rotating Parts: Copper-Zinc Alloy (CuZn), Pressed Castings: Zinc (GD-Zn) |
| Flange Measurement | 40 mm x 40 mm |
| Lock Type | for standard and SPEEDCON locking |
| Pg Cable Glands | without |
| Protection Index (inserted) | IP68/IP69K |
| Thread Type | M40 |
| Environmental conditions | |
| Ambient Temperature (Service) | -40 °C ... 115 °C |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Ambient temperature (EF002386) | -40 °C |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
