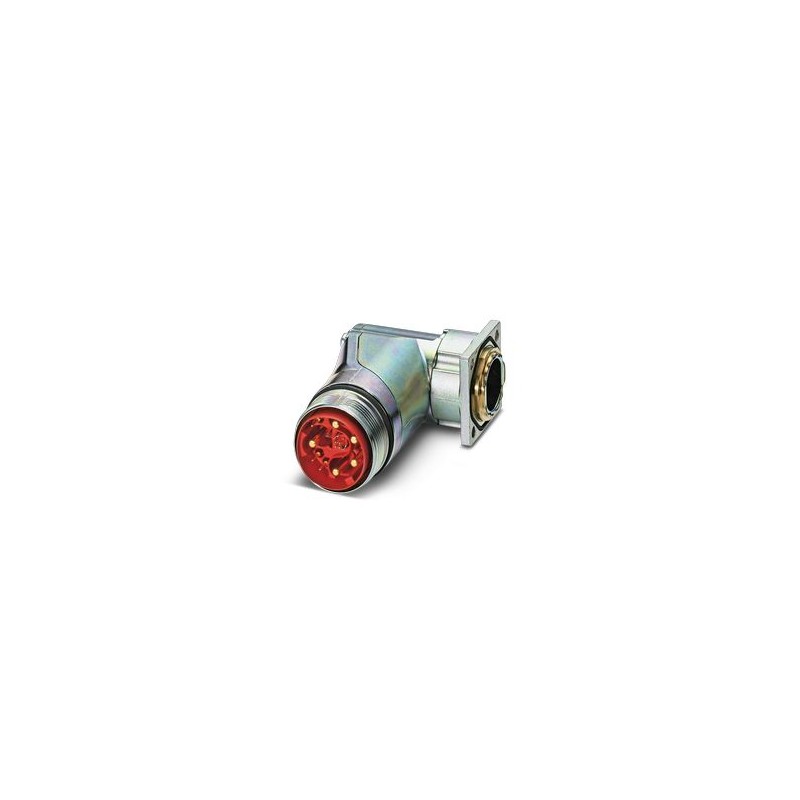

SB-8EP6A8AA700S 1314978 PHOENIX CONTACT M40, Conect. plug. to be apar. front wall, series: SB, Swivel angle,..
SB-8EP6A8AA700S
1314978
PHOENIX_CONTACT
Product on demand only, returns will not be accepted.
M40, Conect. plug. to be apar. front wall, series: SB, Swivel angle, shielded: yes, for standard and SPEEDCON locking, No. of poles: 6+4+4+PE, 6-pole data element, Direction of rotation: Standard, contact connection type: Male, Axial O-ring, 4x Ø4.2, coding: Coding 1
M40, Device connector front, series: SB, angled, swivel, shielded: yes, for standard and SPEEDCON locking, No. of poles: 6+4+4+PE, 6-pin data element, Direction of rotation: standard, contact connection type: Plug, axial O-ring, 4x Ø4.2, coding: Coding 1
Connectors > Circular connector, mounting (without cable)
Field Device Connectors (FDC)
Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
Related products
▲Best sellers
▲More info
▲| General notes | Order crimp contacts separately |
| Safety Warning | |
| Safety instructions | WARNING: Connectors must not be connected or disconnected under load. Failure to comply with it and use it in accordance with the rules may result in damage to persons and/or property. |
| • WARNING: Only operate products in perfect condition. Regularly check the products for damage. Immediately take out defective products. Replace the damaged products. The item cannot be repaired. | |
| • WARNING: Have the product installed and operated only by qualified electrical personnel in accordance with the following safety instructions. Specialists must be familiar with the basics of electrical engineering and must be able to recognize and avoid hazards. The corresponding symbol on the packaging indicates that the intervention of qualified electrical personnel is required. | |
| • The products are suitable for the areas of system assembly, control and assembly of electrical appliances. | |
| • When operating the connector outdoors, these environments must be protected from environmental influences. | |
| • Packaged products must not be handled or opened incorrectly. | |
| • Only use plugs specified in the standards specified in the technical data (e.g. those listed in the product accessories on the phoenixcontact.com/products website). | |
| • If you use the product directly in conjunction with third-party products, you are entirely responsible for this. | |
| • For operating voltages > 50 VAC, conductive connector housings must be grounded | |
| • For bundling different electrical circuits in a cable and/or connector, VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 apply | |
| • Observe the respective technical data. The information is given in the following points: o About the product o On the package label o In the documentation provided o Im Web phoenixcontact.com/products to the product entry | |
| • Use only the tool recommended by Phoenix Contact | |
| • Observe the installation instructions/Design In documents for the product in the download area on the web at phoenixcontact.com/products. | |
| • Do not close unconnected connectors with a safety cap. Suitable accessories for the product can be found in the accessories area of the mesh article under phoenixcontact.com/products | |
| • Use the connector only in the fully engaged and locked state. | |
| • Make sure that the tensile load does not exceed the limits set by the standard when laying the cable. | |
| • Take into account the minimum bending radius of the cable. Lay the cable without twisting it. | |
| • The connector will become warm during normal operation. Depending on environmental conditions, the surface of the connector may be continuously heated. In this case, the user is responsible for the application of the safety instructions (e.g. DIN EN ISO 13732-1:2008-12). | |
| Product Type | Circular connectors (device side) |
| Insulating body | |
| Data Rate | 100 MBit/s |
| Coding | Coding 1 |
| Contact Switching Type | Thorn |
| Application | Hybrid |
| No. of poles | 15 |
| Direction of rotation | standard |
| Insertion plan | 6+4+4+PE, 6-pole data element |
| Contact DiameterPower Contacts | 3.6 mm |
| Wire sectionPower ContactsMin. | 2.5 mm² |
| Wire sectionPower ContactsMax. | 16 mm² |
| Sizing CurrentPower Contacts | 70 A |
| note | at an ambient temperature of 15 °C, see derating curve |
| Nominal voltage | 630 V AC |
| Sizing Impulse Voltage | 6 kV |
| Overvoltage Category | Iii |
| Degree of pollution | 3 |
| Sizing voltage (II/3) power contact | 850 V DC |
| Voltage sizing (III/3) power contact | 630 V AC |
| Contact DiameterSignal contacts | 1 mm |
| Wire sectionSignal contactsMin. | 0.06 mm² |
| Wire sectionSignal contactsMax. | 1.5 mm² |
| Rated current for each signal contact | 8 A |
| note | to a max. connection section |
| Rated Voltage Signal Contact | 500 V |
| Sizing Impulse Voltage | 6 kV |
| Voltage Sizing (III/3) Signal Contact | 500 V |
| Contact Diameter Data Contacts | 0.6 mm |
| Wire cross-section Data contacts min. | 0.08 mm² |
| Wire cross-section Data contacts max. | 0.25 mm² |
| Sizing current for each data contact at 25 °C | 2 A |
| note | to a max. connection section |
| Rated voltage Data contacts | 50 V |
| Sizing Impulse Voltage | 1.5 kV |
| Installation height | 2000 m |
| custody | |
| Housing Material | Rotating parts: copper-zinc alloy (CuZn), die-cast parts: zinc (GD-Zn) |
| Clamping Type | for standard and SPEEDCON clamping |
| Screwing Pg | without |
| Degree of protection (engaged) | IP68/IP69K |
| Thread type | M40 |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 115 °C |
| Feature Name | Feature Value |
|---|---|
| Number of data contacts (EF012232) | 0 |
| Number of power contacts (EF012216) | 0 |
| Ambient temperature (EF002386) | -40 °C |
| Type of locking (EF000208) | Other |
| With protective conductor (EF007468) | No |
| Screened (EF000881) | No |
| With status indication (EF001602) | No |
