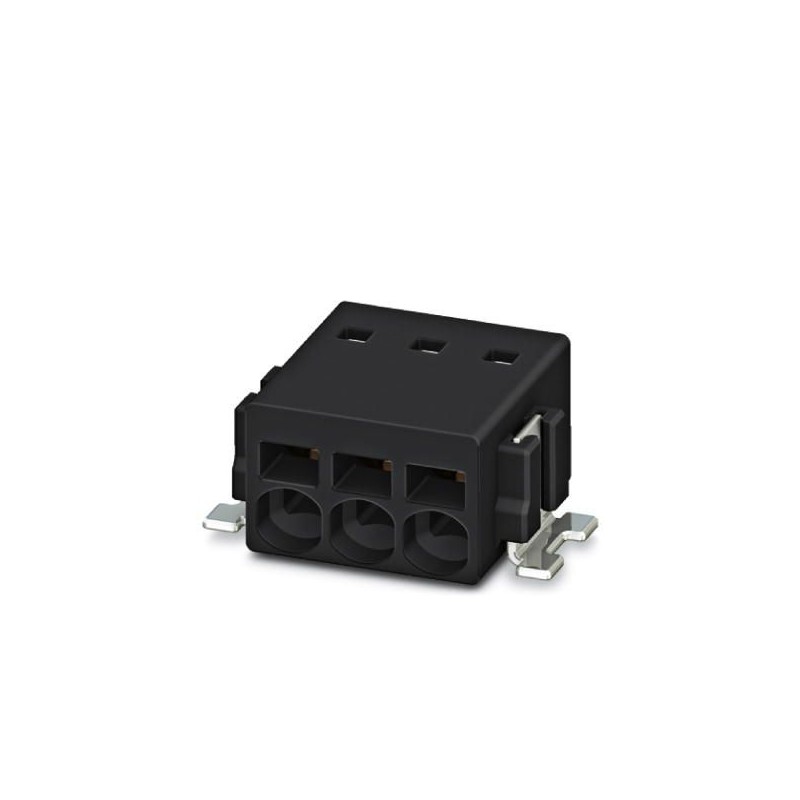

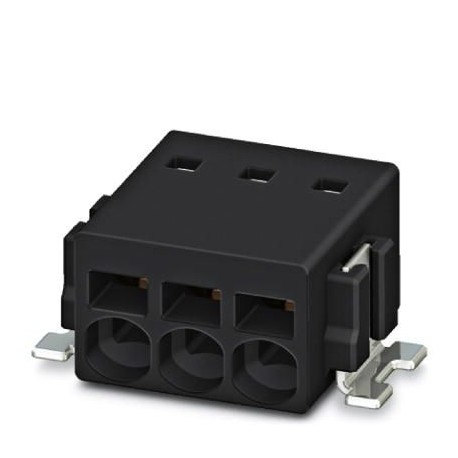

SAMPLE PTSM 0,5/ 7-2,5-H-SMD 1701082 PHOENIX CONTACT Sample set
SAMPLE PTSM 0,5/ 7-2,5-H-SMD
1701082
PHOENIX_CONTACT
5
Sample set
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
* Brand new product in its original packaging covered by the warranties and certifications provided by PHOENIX_CONTACT
More info
▲Key Commercial Data
| Orderkey | 1701082 |
|---|---|
| Packing unit | 5 pc |
| Minimum order quantity | 5 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356515153 |
| Weight per Piece (excluding packing) | 2.100 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Item properties
| Brief article description | PCB terminal block |
|---|---|
| Range of articles | PTSM 0,5/..-H-SMD |
| Pitch | 2.5 mm |
| Number of positions | 7 |
| Connection method | Push-in spring connection |
| Mounting type | SMD soldering |
| Pin layout | Linear pad geometry |
| Number of levels | 1 |
Electrical parameters
| Rated current | 6 A |
|---|---|
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
Connection capacity
| Conductor cross section solid | 0.14 mm² ... 0.5 mm² |
|---|---|
| Conductor cross section flexible | 0.2 mm² ... 0.5 mm² (up to 0.75 mm² supported, at a rated insulation voltage of 32 V at III/2) |
| Conductor cross section AWG / kcmil | 26 ... 20 |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 0.5 mm² |
| Stripping length | 6 mm |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
|---|---|
| Contact material | Cu alloy |
| Surface characteristics | hot-dip tin-plated |
| Metal surface terminal point (top layer) | Tin (4 - 8 µm Sn) |
| Metal surface soldering area (top layer) | Tin (4 - 8 µm Sn) |
Material data - housing
| Insulating material | LCP |
|---|---|
| Insulating material group | IIIa |
| CTI according to IEC 60112 | 175 |
| Flammability rating according to UL 94 | V0 |
Dimensions for the product
| Dimensional drawing | |
|---|---|
| Caption | Schematic representation – for additional information, see product range drawing in the Download Center |
| Length [ l ] | 9 mm |
| Width [ w ] | 22.6 mm |
| Height [ h ] | 7 mm |
| Pitch | 2.5 mm |
| Height (without solder pin) | 7 mm |
| Solder pin [P] | 2 mm |
| Pin spacing | 2.5 mm |
| Dimension a | 15 mm |
Packaging information
| Type of packaging | packed in cardboard |
|---|---|
| Pieces per package | 5 |
| Denomination packing units | Pcs. |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient temperature (operation) | -40 °C |
Termination and connection method
| Connection test | IEC 60998-2-2:2002-12 |
|---|---|
| Test result | Test passed |
| Test for conductor damage and slackening | IEC 60998-2-2:2002-12 |
| Test passed |
Pull-out test
| Pull-out test | IEC 60998-2-2:2002-12 |
|---|---|
| Test passed | |
| Conductor cross section / conductor type / tensile force | 0.14 mm² / solid / > 7 N |
| 0.14 mm² / flexible / > 7 N | |
| 0.2 mm² / solid / > 10 N | |
| 0.5 mm² / solid / > 30 N | |
| 0.75 mm² / flexible / > 35 N |
Electrical tests
| Rated current | 6 A |
|---|---|
| Rated insulation voltage (III/2) | 160 V |
| Rated surge voltage (III/2) | 2.5 kV |
Air clearances and creepage distances
| Specification | IEC 60664-1:1992-10 + A1:2000-02 + A2:2002-05 |
|---|---|
| Insulating material group | IIIa |
| Voltage | 32 V |
| Rated insulation voltage (III/3) | 32 V |
| Rated insulation voltage (III/2) | 160 V |
| Rated insulation voltage (II/2) | 160 V |
| Rated surge voltage (III/3) | 2.5 kV |
| Rated surge voltage (III/2) | 2.5 kV |
| Rated surge voltage (II/2) | 2.5 kV |
Vibration test
| Resistance to ageing, to humidity conditions, to ingress of solid objects and to harmful ingress of water | Test passed IEC 60998-1:2002-12 168 h/100°C 48 h/30 °C/92 % |
|---|---|
| Test result | Test passed |
| Test specification | IEC 60998-1:2002-12 |
| Dry heat | 168 h/100°C |
| Humid heat | 48 h/30 °C/92 % |
Resistance to ageing, humidity and penetration of solids
| Test result | Test passed |
|---|---|
| Test specification | IEC 60998-1:2002-12 |
| Dry heat | 168 h/100°C |
| Humid heat | 48 h/30 °C/92 % |
Standards and Regulations
| Connection in acc. with standard | EN-VDE |
|---|---|
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141111eCl@ss 4.127141109eCl@ss 5.027141190eCl@ss 5.127261100eCl@ss 6.027261100eCl@ss 7.027440401eCl@ss 8.027440401eCl@ss 9.027440401
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PHOENIX PCB CONNECTORS EN.pdf | 15 Mbytes |
|
